Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

25 part groups · 4 illustrations

Illustrations

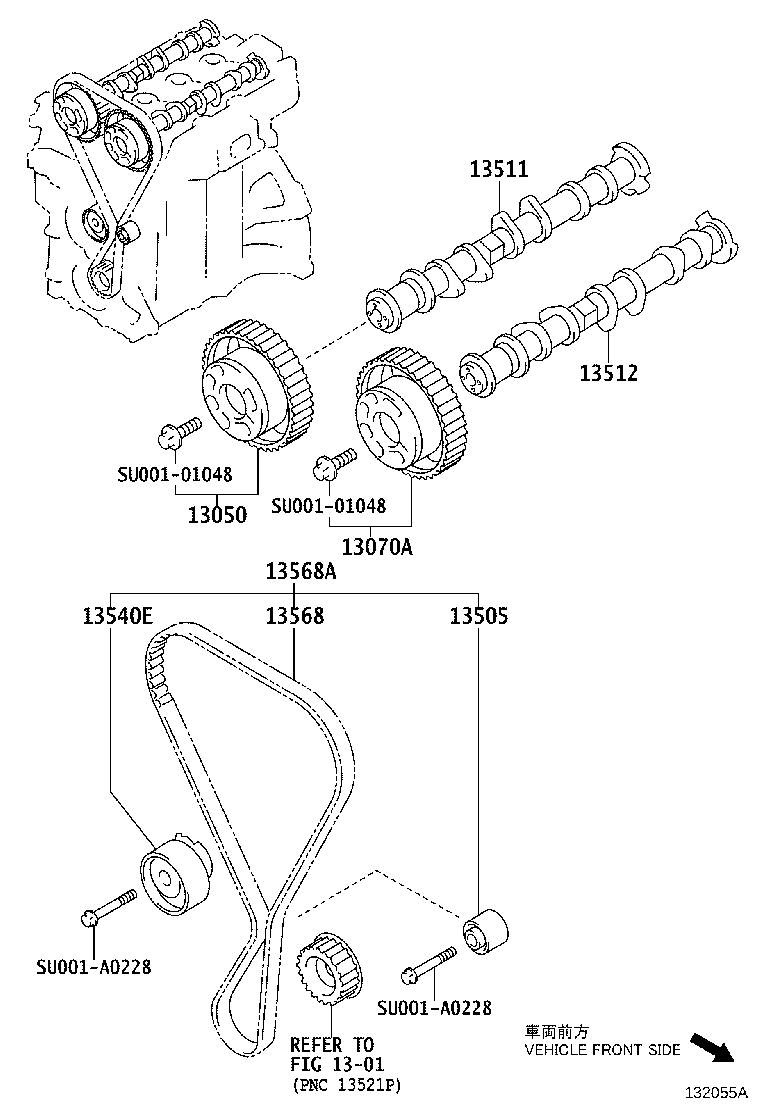

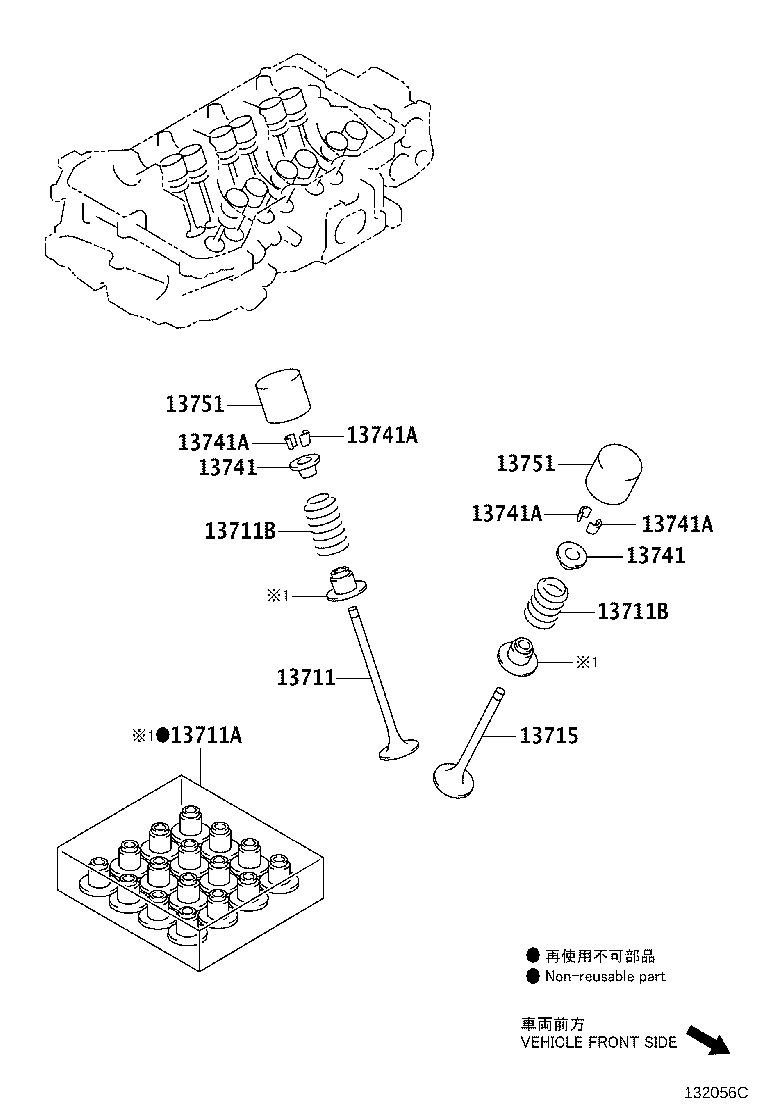

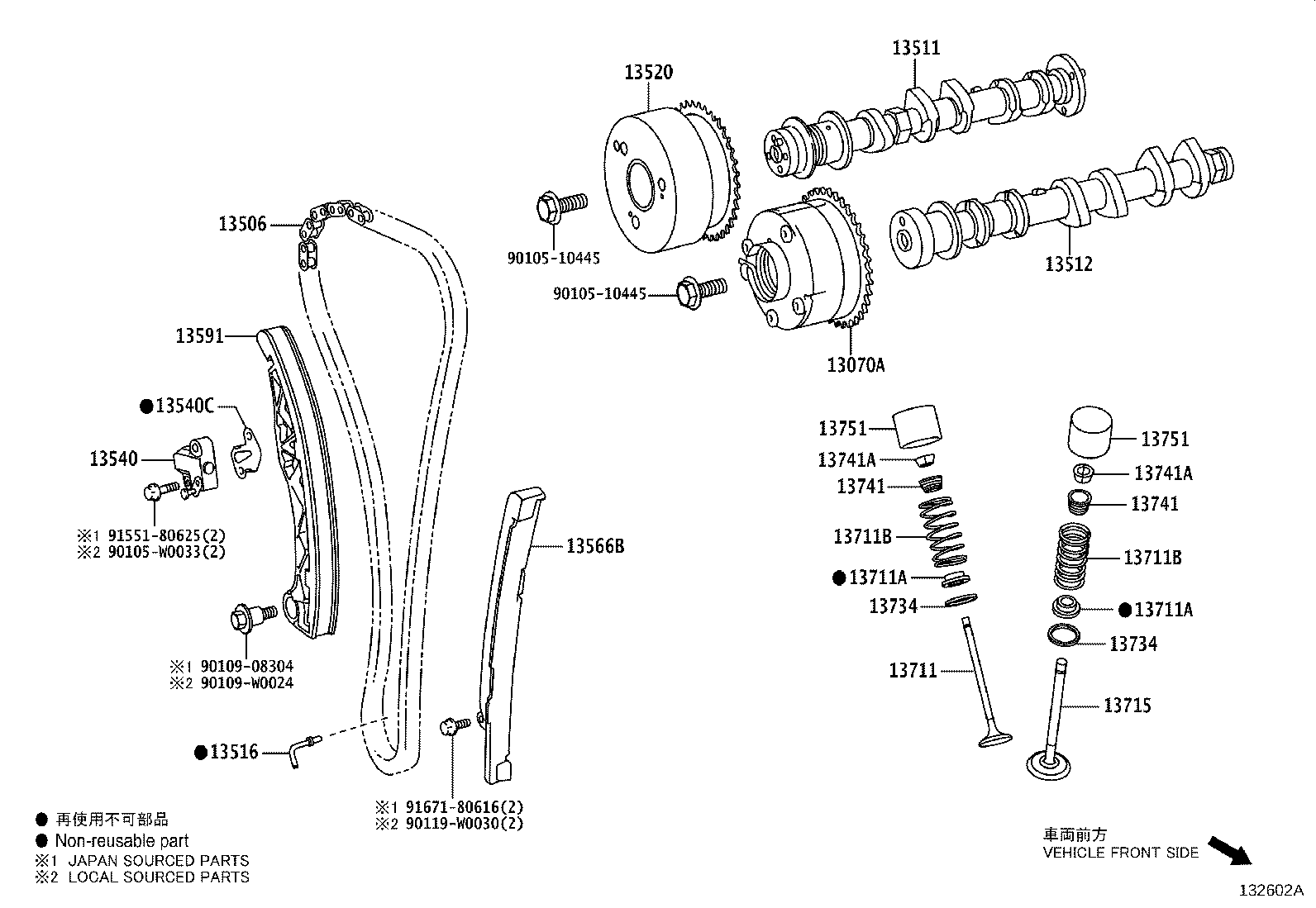

Figure 132071D 132071D 2014-05 → 2018-05 Figure 132602A 132602A 2018-05 → — Figure 132055A 132055A 2014-05 → — Figure 132056C 132056C 2014-05 → —

Part groups

PNCDescription
13050 Gear Assy, Camshaft Timing
13070A Gear Assy, Camshaft Timing Exhaust
13505 Idler Sub-assy, Timing Belt, NO.1
13506 Chain Sub-assy
13511 Camshaft
13512 Camshaft, NO.2
13516 Jet, Oil
13520 Sprocket Assy, Camshaft Timing
13523 Gear OR Sprocket, Camshaft Timing
13523F Bolt(FOR CAMSHAFT TIMING GEAR)
13540 Tensioner Assy, Chain, NO.1
13540C Gasket(FOR CHAIN TENSIONER)
13540E Tensioner Assy, Timing Belt
13566B Guide, Timing Chain
13568 Belt, Timing
13568A Belt Set, Timing
13591 Arm, Timing Chain Tension
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13715 Valve, Exhaust
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
