Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

5 part groups · 2 illustrations

Illustrations

Figure 165625C

165625C 2014-05 → —

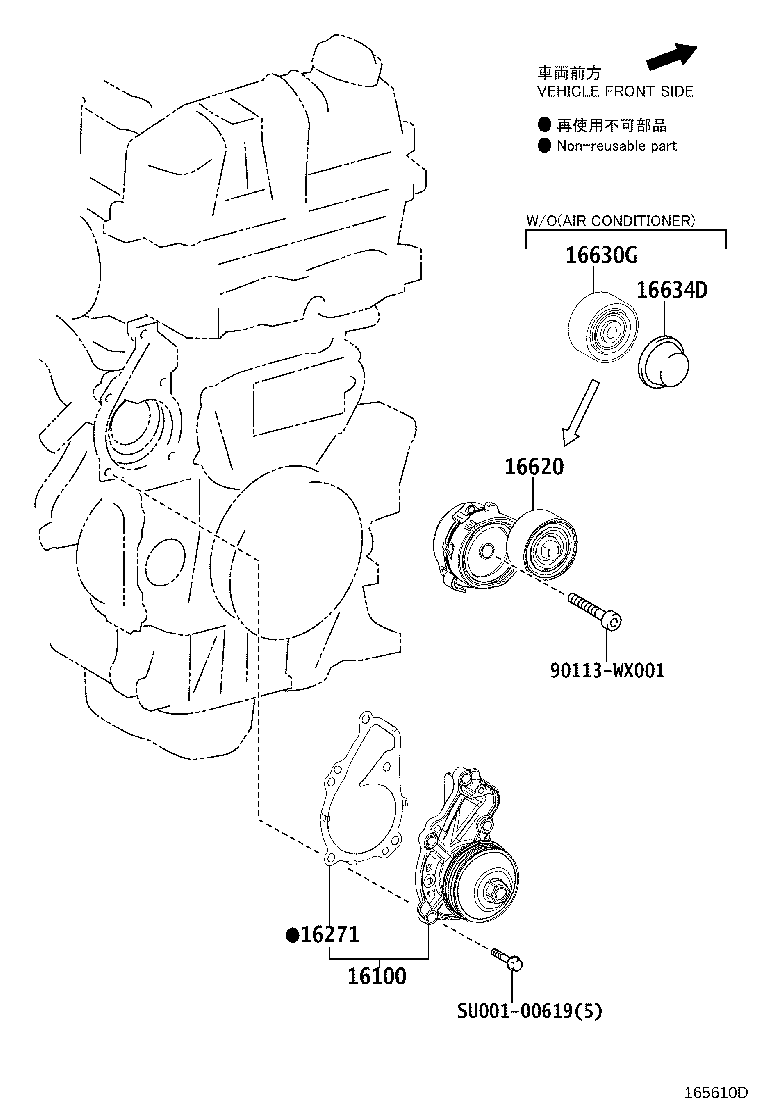

Figure 165610D

165610D 2014-05 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt
16630G	Pulley Assy, Idler
16634D	Cover, Dust

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
