Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

10 part groups · 3 illustrations

Illustrations

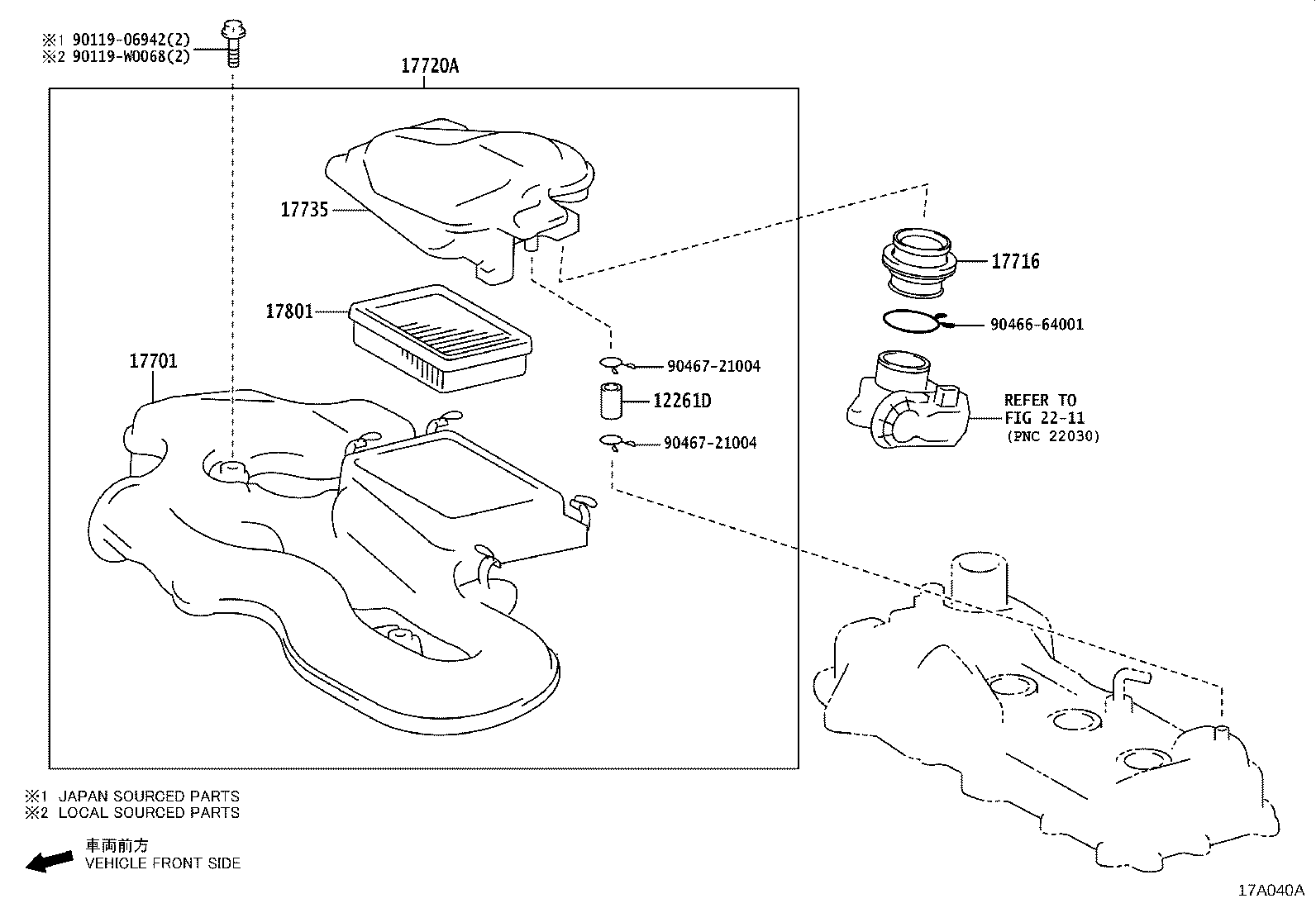

Figure 178362B 178362B 2014-05 → 2018-05 Figure 17A040A 17A040A 2018-05 → — Figure 178366B 178366B 2014-05 → —

Part groups

PNCDescription
12261D Hose, Ventilation
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17716 Support,Air Cleaner Cap
17720A Cleaner Assy, Air W/Duct
17735 Cap, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
