Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

11 part groups · 4 illustrations

Illustrations

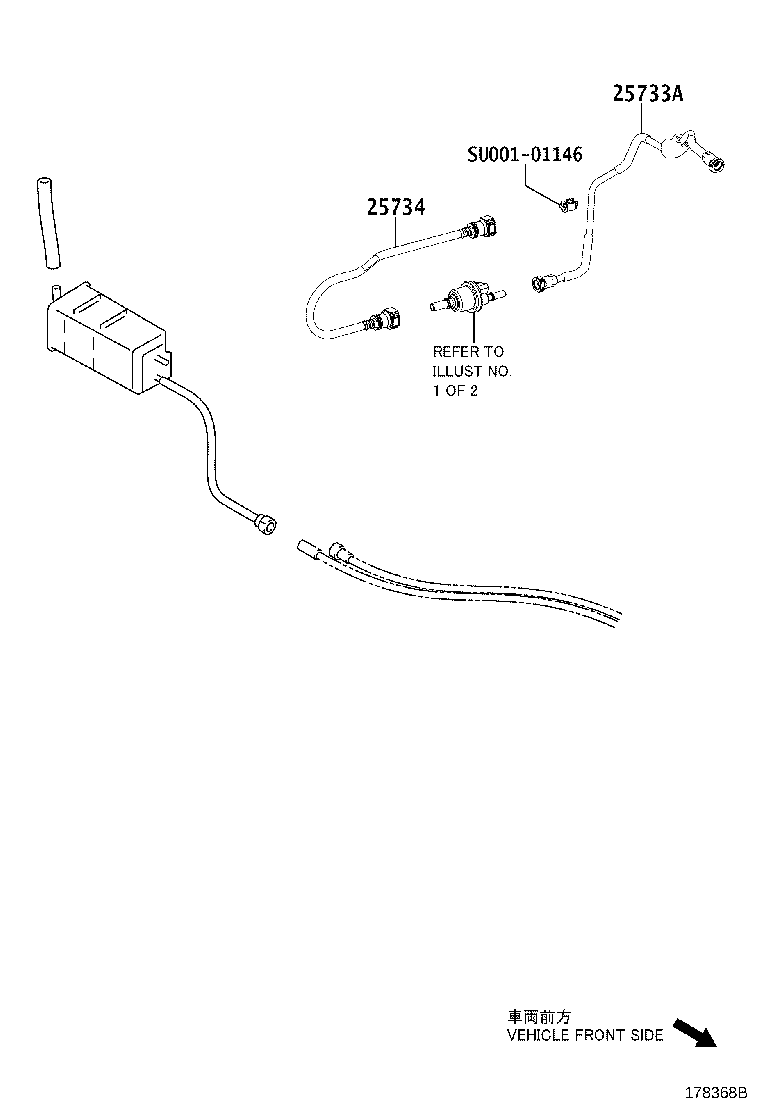

Figure 178363A 178363A 2014-05 → 2018-05 Figure 17A039B 17A039B 2018-05 → — Figure 178367B 178367B 2014-05 → — Figure 178368B 178368B 2014-05 → —

Part groups

PNCDescription
17650G Valve, Duty Vacuum Switching
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25733A Pipe, Vacuum, NO.1
25734 Pipe, Vacuum, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
