Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

12 part groups · 4 illustrations

Illustrations

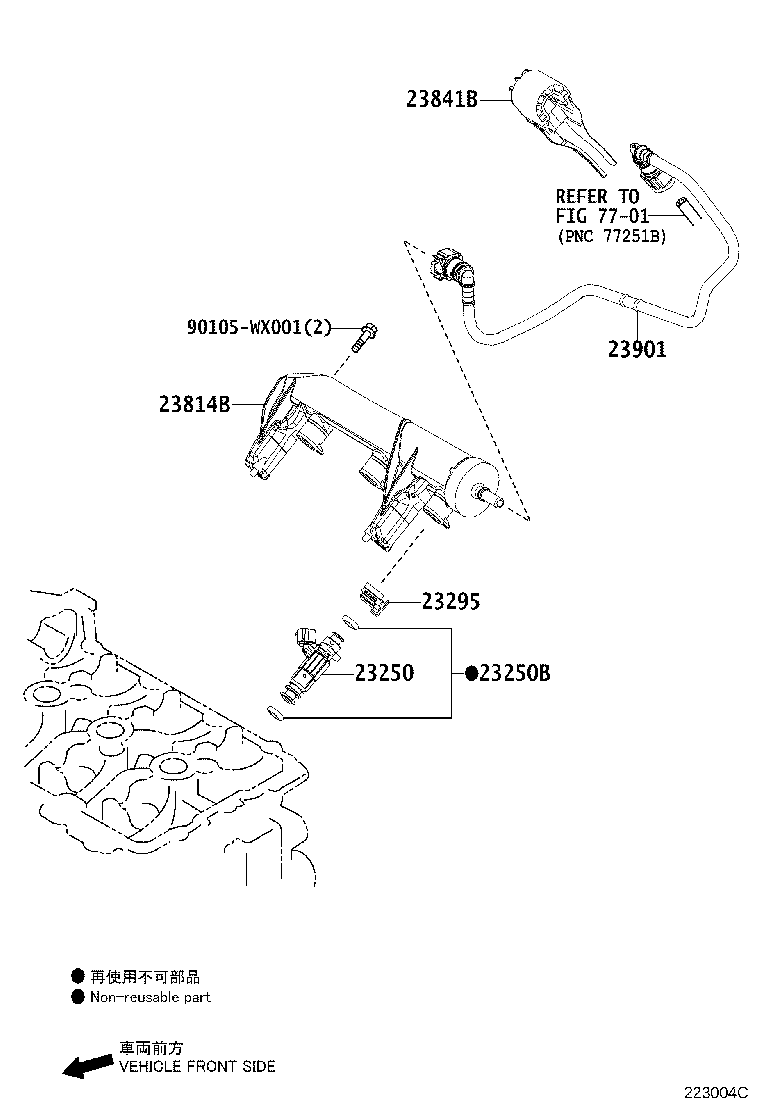

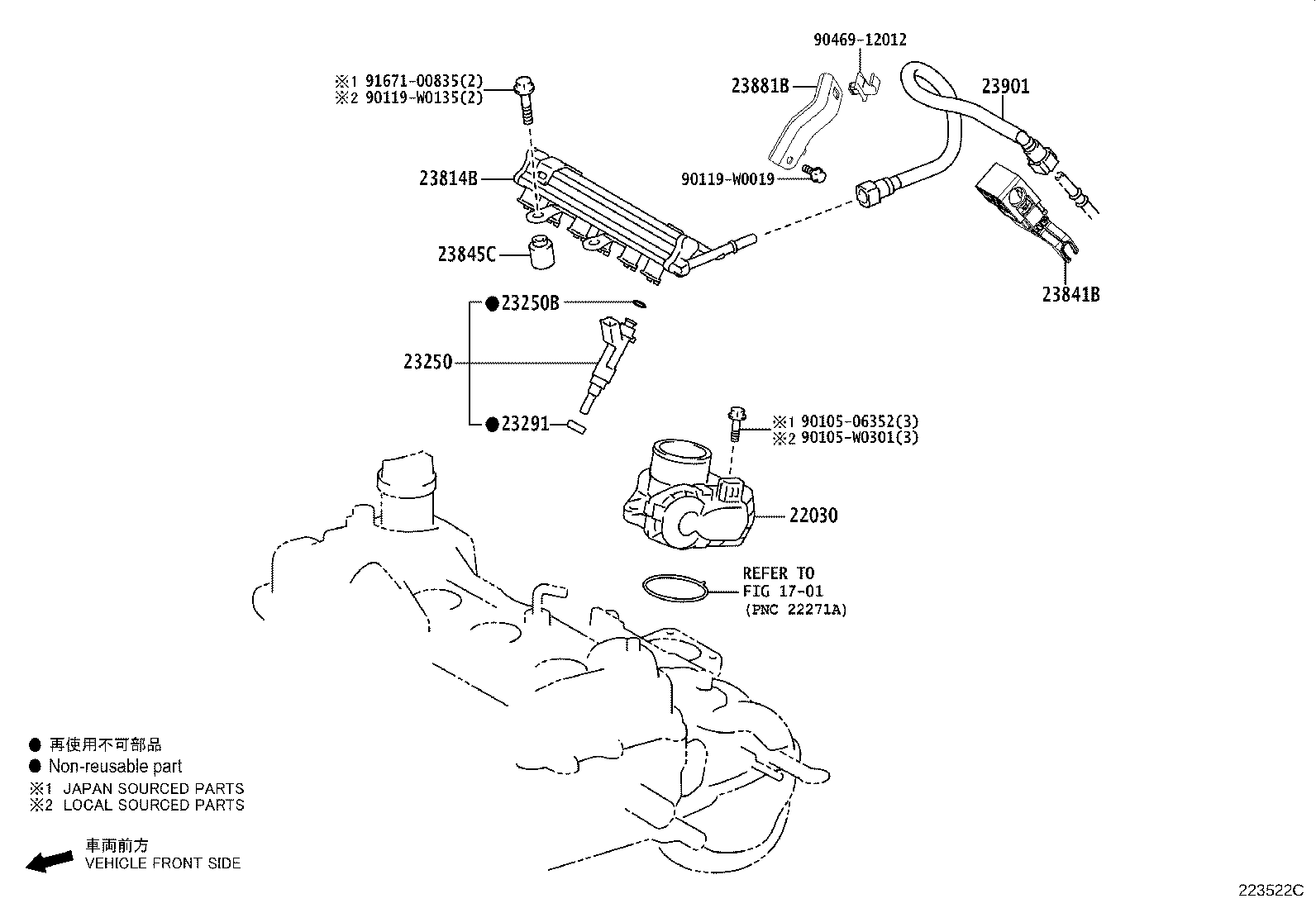

Figure 223002E 223002E 2014-05 → 2018-05 Figure 223522C 223522C 2018-05 → — Figure 223003C 223003C 2014-05 → — Figure 223004C 223004C 2014-05 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22271 Gasket, Throttle Body
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23291 Insulator, Injector Vibration
23295 Holder, Injector, NO.1
23814B Pipe, Fuel Delivery
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23845C Insulator, Fuel Pipe
23881B Bracket, Fuel Hose
23901 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
