Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

14 part groups · 4 illustrations

Illustrations

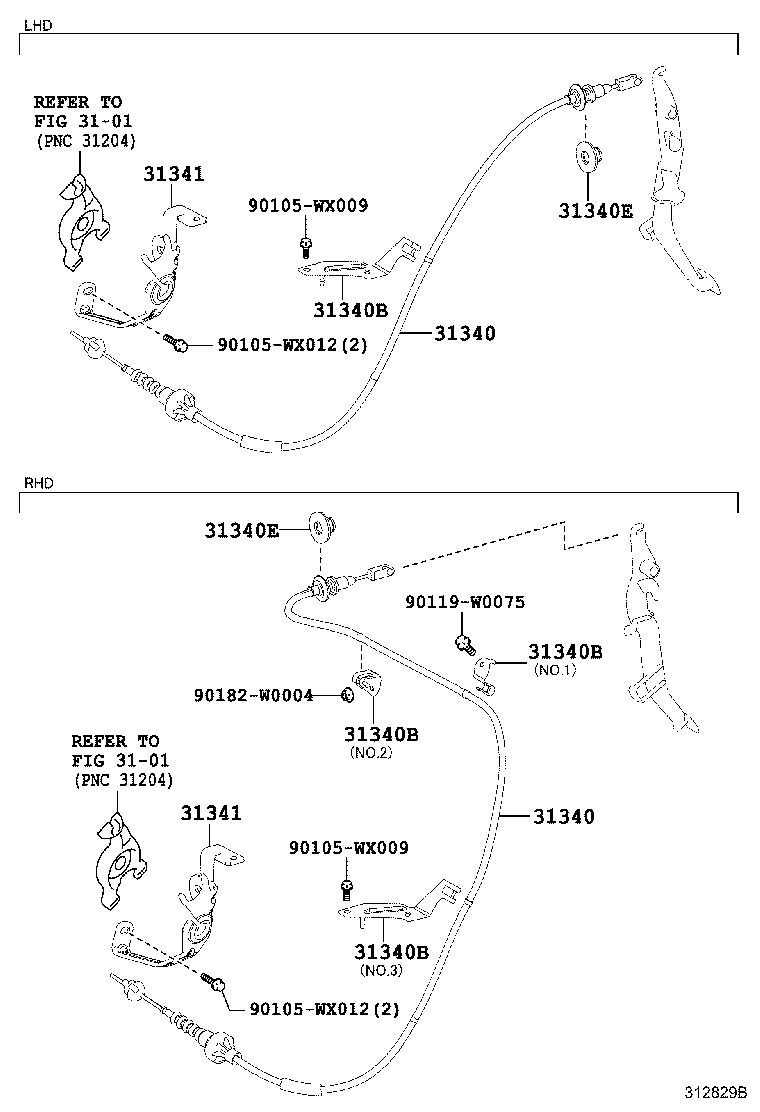

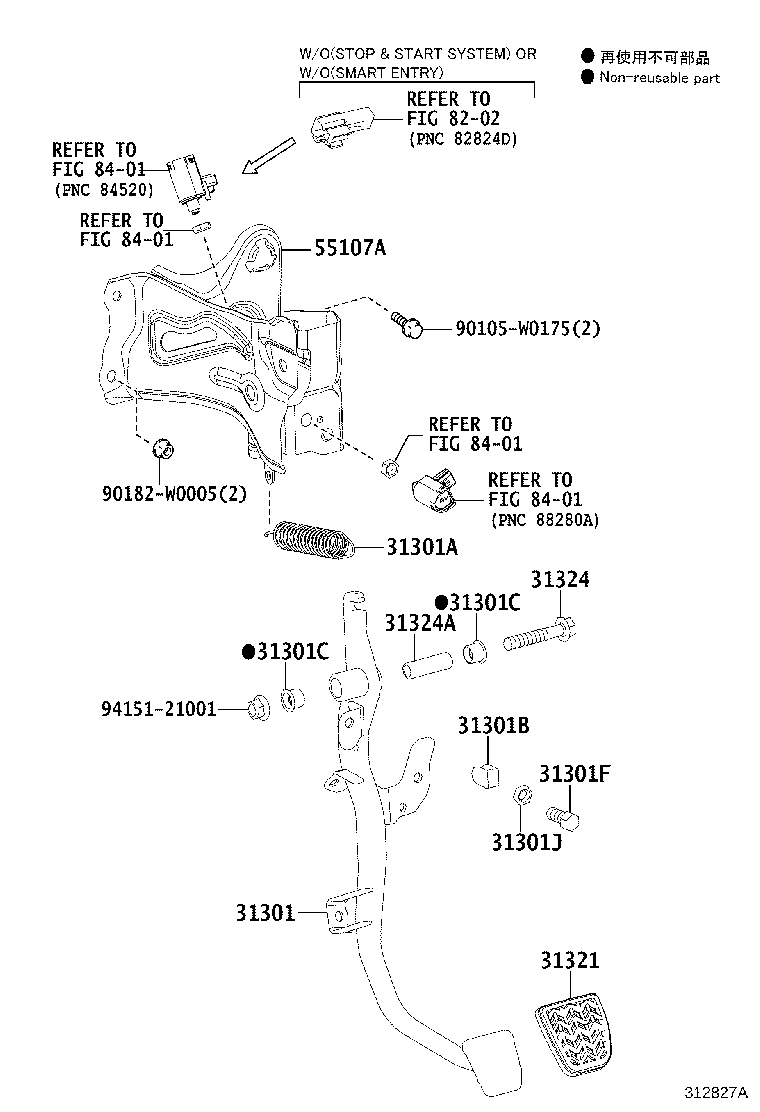

Figure 312826A 312826A 2014-05 → — Figure 312827A 312827A 2014-05 → — Figure 312828A 312828A 2014-05 → — Figure 312829B 312829B 2014-05 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301J Nut(FOR CLUTCH PEDAL STOPPER)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31340 Cable Assy, Clutch Release
31340B Clamp(FOR CLUTCH RELEASE CABLE)
31340E Grommet(FOR CLUTCH RELEASE CABLE)
31341 Bracket, Clutch Cable
55107A Support Sub-assy, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
