Toyota Aygo
2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe
Supported model
Data version 2018-04

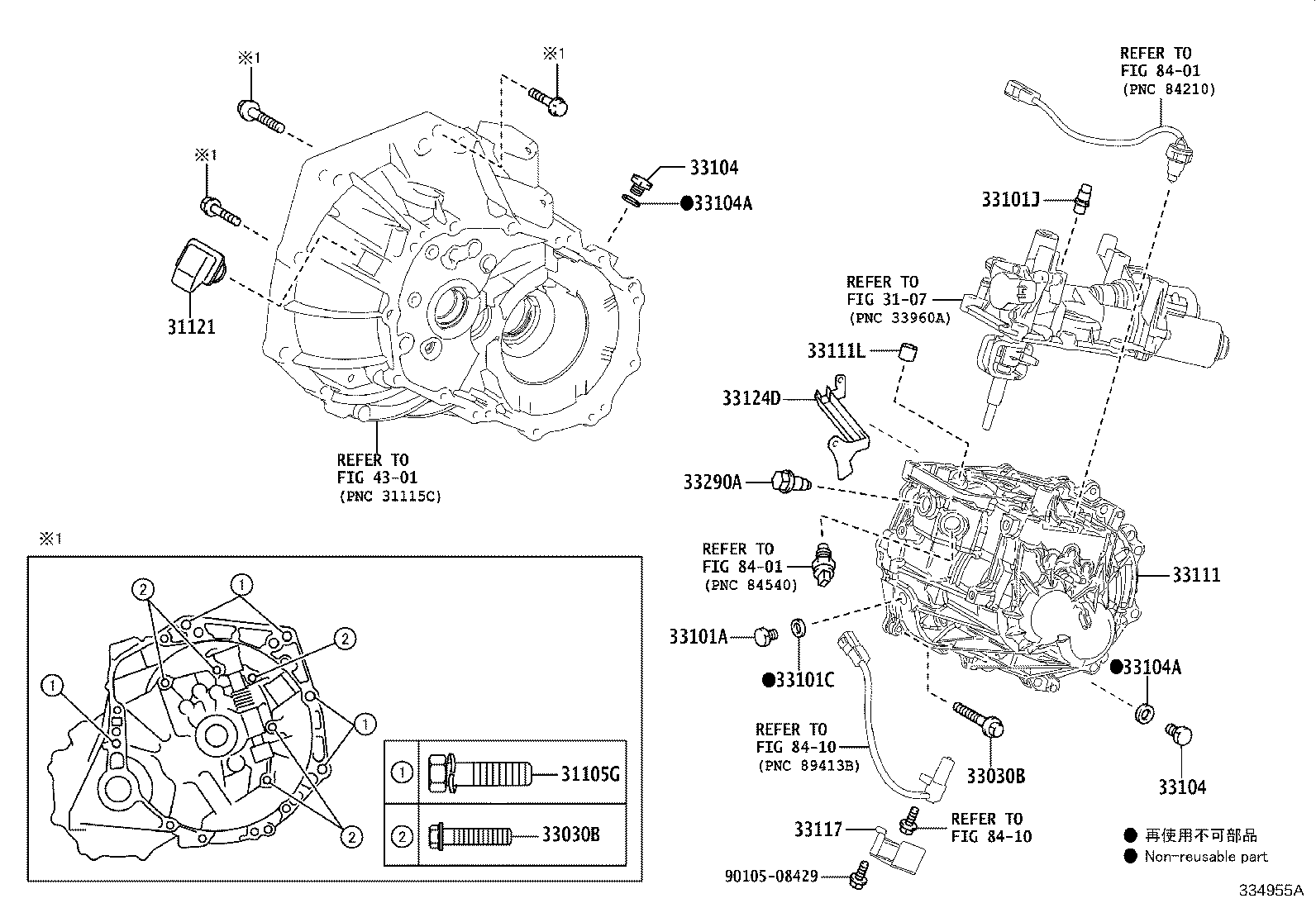

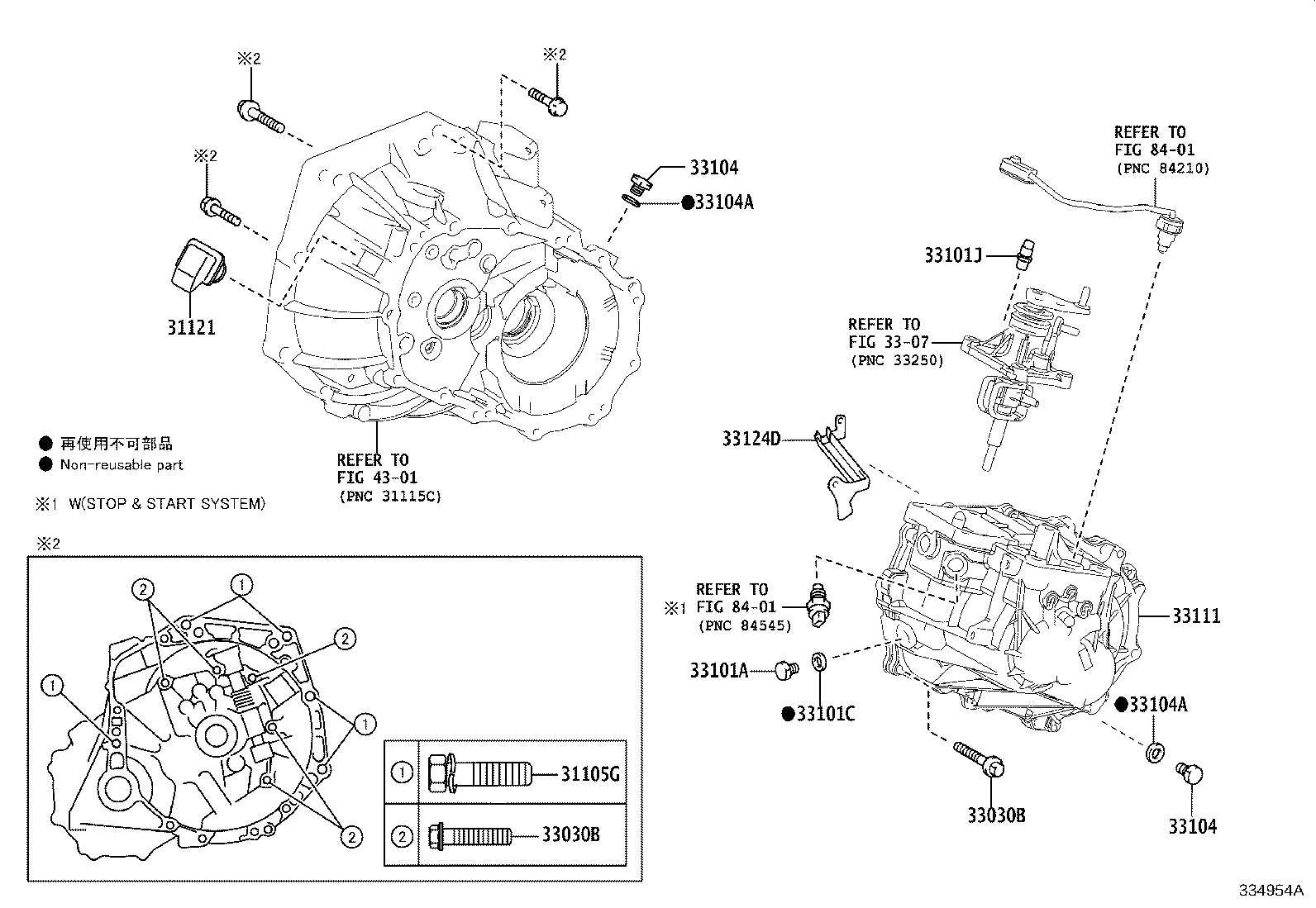

Clutch Housing & Transmission Case (MTM)
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 31105G | Bolt(FOR TRANSAXLE CASE & ENGINE SETTING) |
| 31121 | Cover, Clutch Housing, NO.1 |
| 33030B | Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) |
| 33101A | Plug(FOR MANUAL TRANSMISSION FILLER) |
| 33101C | Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) |
| 33101J | Plug, Breather |
| 33102 | Cover Sub-assy, Manual Transmission Case |
| 33104 | Plug Sub-assy, Drain(MTM) |
| 33104A | Gasket, Drain Plug(MTM) |
| 33111 | Case, Manual Transmission |
| 33111J | Pin, Straight(FOR MANUAL TRANSMISSION CASE) |
| 33111L | Bush, Bimetal Formed(FOR TRANSMISSION CASE) |
| 33117 | Protector, Manual Transmission Case |
| 33121H | Bolt, W/Washer(FOR TRANSMISSION CASE COVER) |
| 33122A | Gasket, Manual Transmission Case Cover |
| 33124D | Pipe, Oil Receiver, NO.2(MTM) |
| 33199A | Protector, Breather |
| 33290A | Ball Assy, Lock, NO.1 |
| 33403K | Cover Sub-assy, Speedometer Driven Hole |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
