Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

16 part groups · 3 illustrations

Illustrations

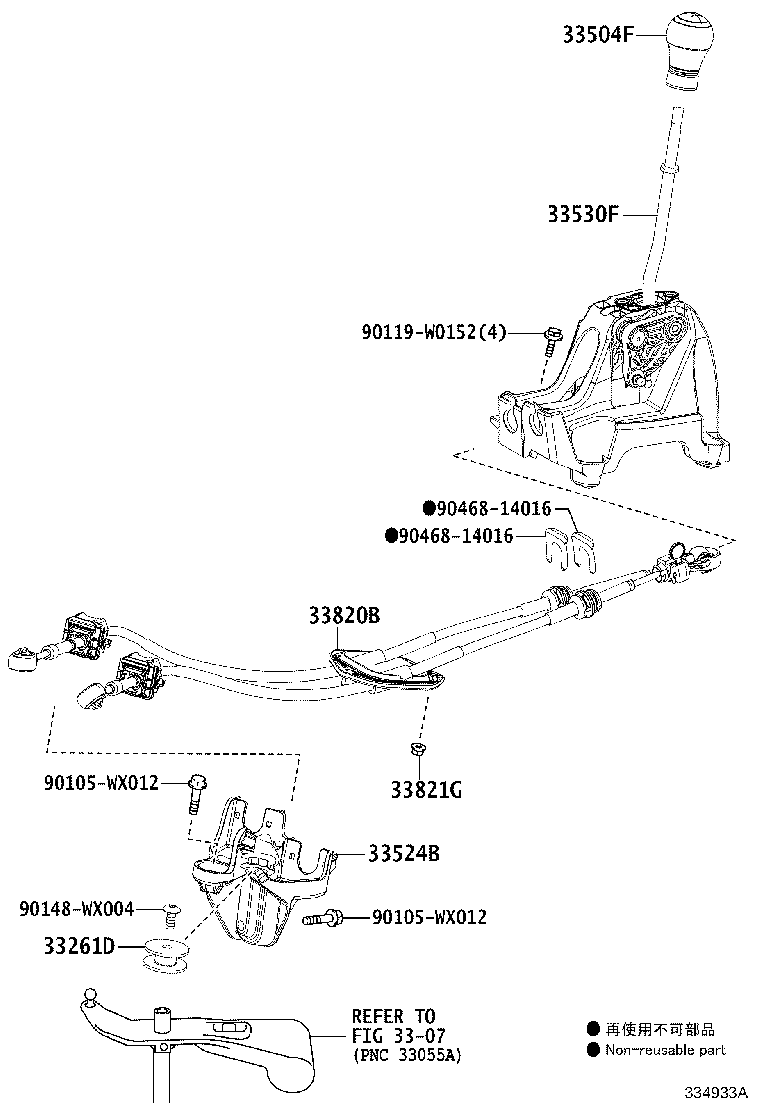

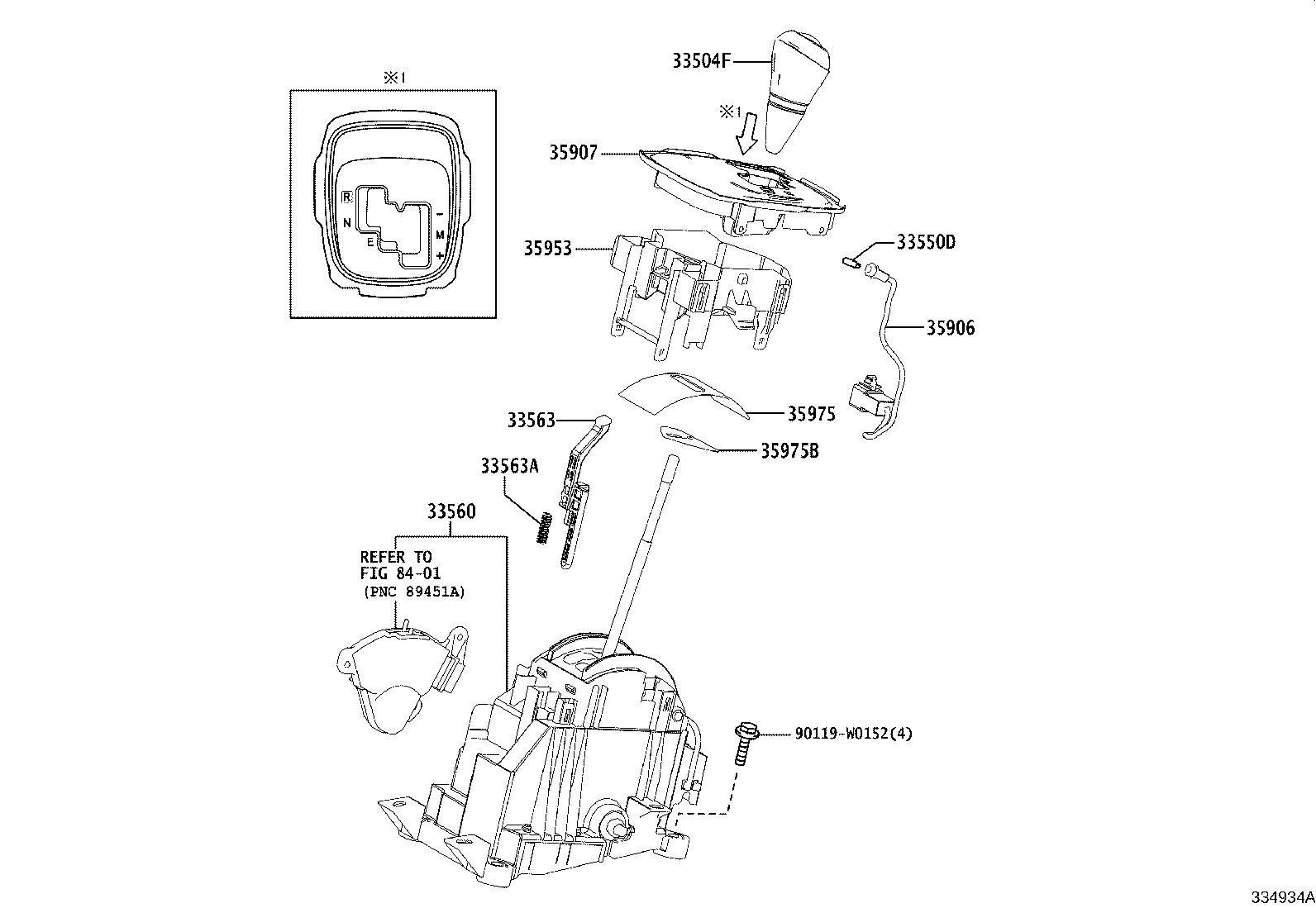

Figure 334932G 334932G 2014-05 → — Figure 334933A 334933A 2014-05 → — Figure 334934A 334934A 2014-05 → —

Part groups

PNCDescription
33261D Bush (FOR SHIFT & SELECT LEVER)
33504F Knob Sub-assy, Shift Lever
33524B Bracket, Control Cable
33524F Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33550D Bulb, Position Indicator Lamp
33560 Unit Assy, Shift Lock Control
33563 Button, Shift Lock Release
33563A Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON)
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
35906 Wire Sub-assy, Indicator Lamp
35907 Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
35953 Guide, Position Indicator Light
35975 Cover, Slide (FOR POSITION INDICATOR)
35975B Cover, Slide, NO.2(FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
