Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

10 part groups · 2 illustrations

Illustrations

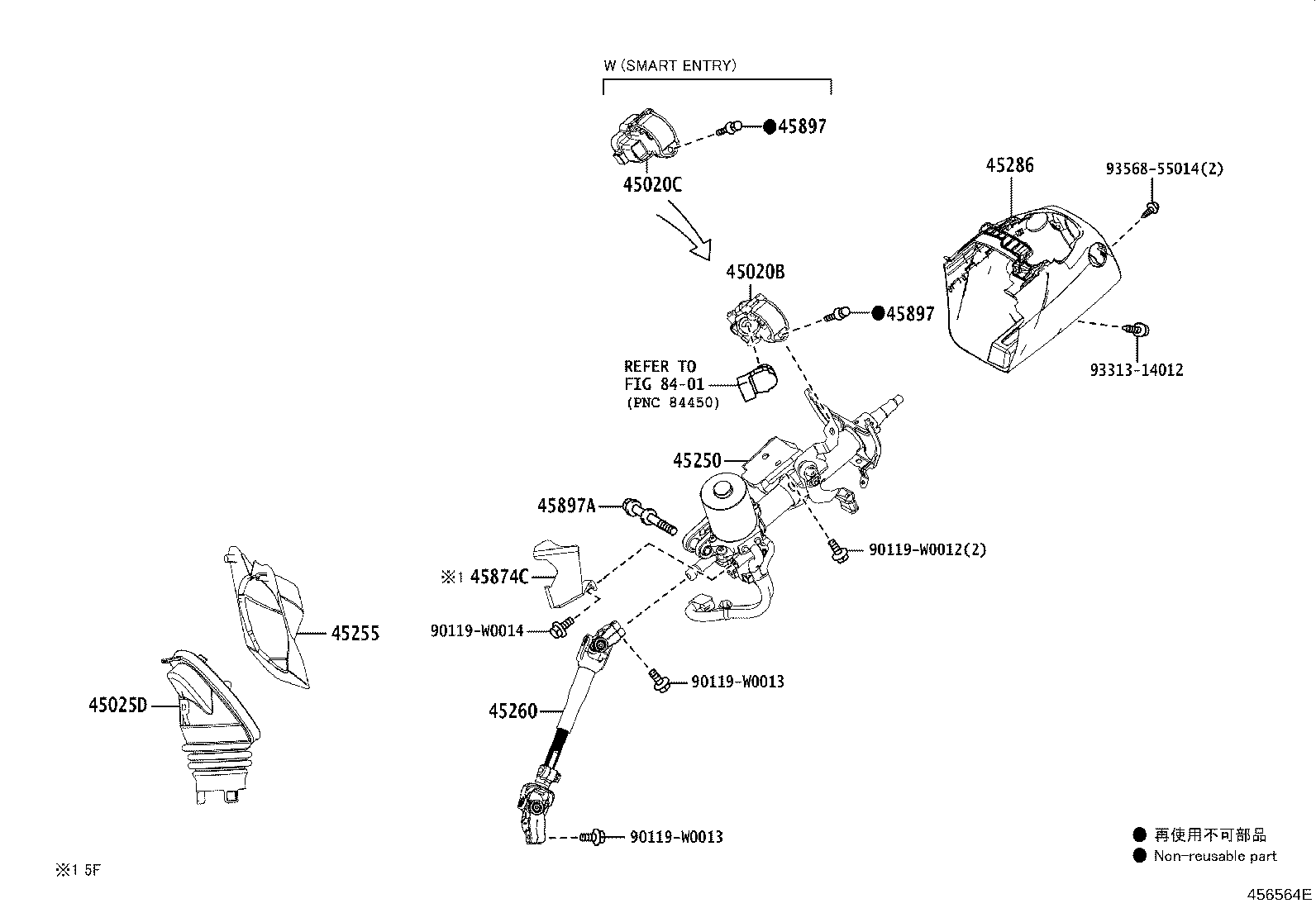

Figure 456563E 456563E 2014-05 → — Figure 456564E 456564E 2014-05 → —

Part groups

PNCDescription
45020B Actuator OR Upper Bracket Assy, Steering Lock
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45250 Column Assy, Steering
45255 Plate, Steering Column Hole Cover
45260 Shaft Assy, Steering Intermediate, NO.2
45286 Cover, Steering Column
45874C Protector, Steering Column, NO.1
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
