Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

7 part groups · 3 illustrations

Illustrations

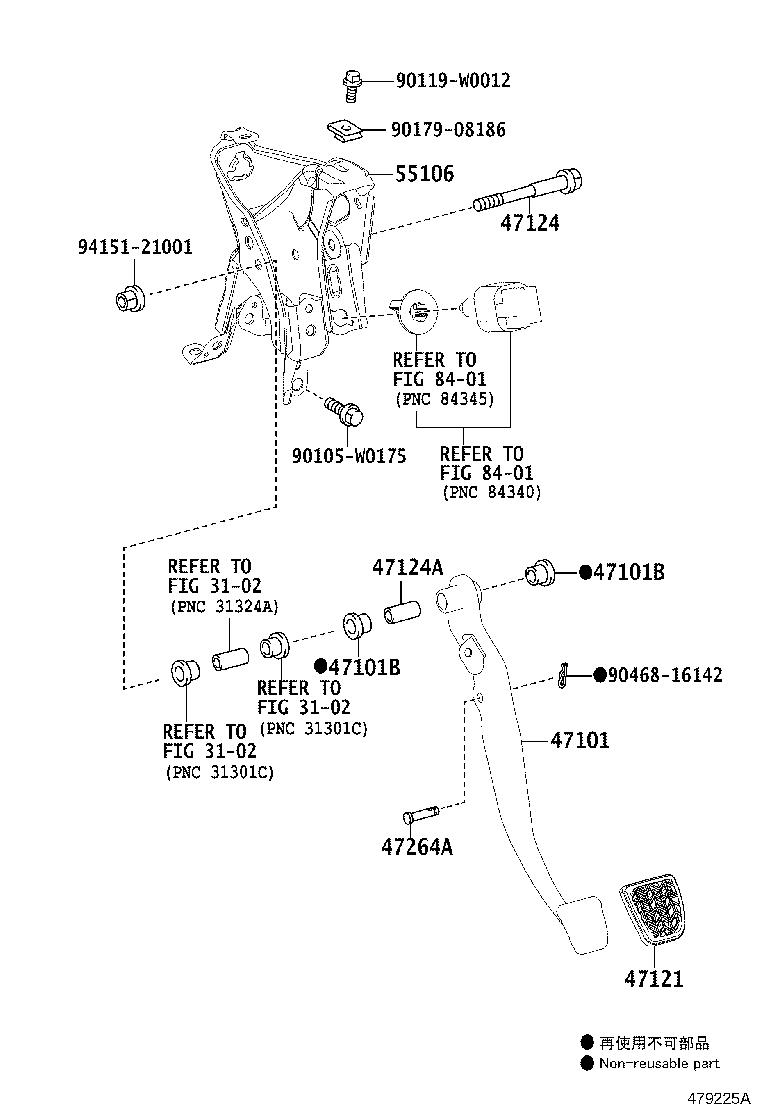

Figure 479224A 479224A 2014-05 → — Figure 479225A 479225A 2014-05 → — Figure 479226A 479226A 2014-05 → —

Part groups

PNCDescription
47101 Pedal Sub-assy, Brake
47101B Bush(FOR BRAKE PEDAL)
47121 Pad, Brake Pedal
47124 Shaft, Brake Pedal
47124A Collar(FOR BRAKE PEDAL SHAFT)
47264A Pin(FOR PUSH ROD)
55106 Support Sub-assy, Brake Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
