Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

6 part groups · 4 illustrations

Illustrations

Figure 479240D

479240D 2014-05 → —

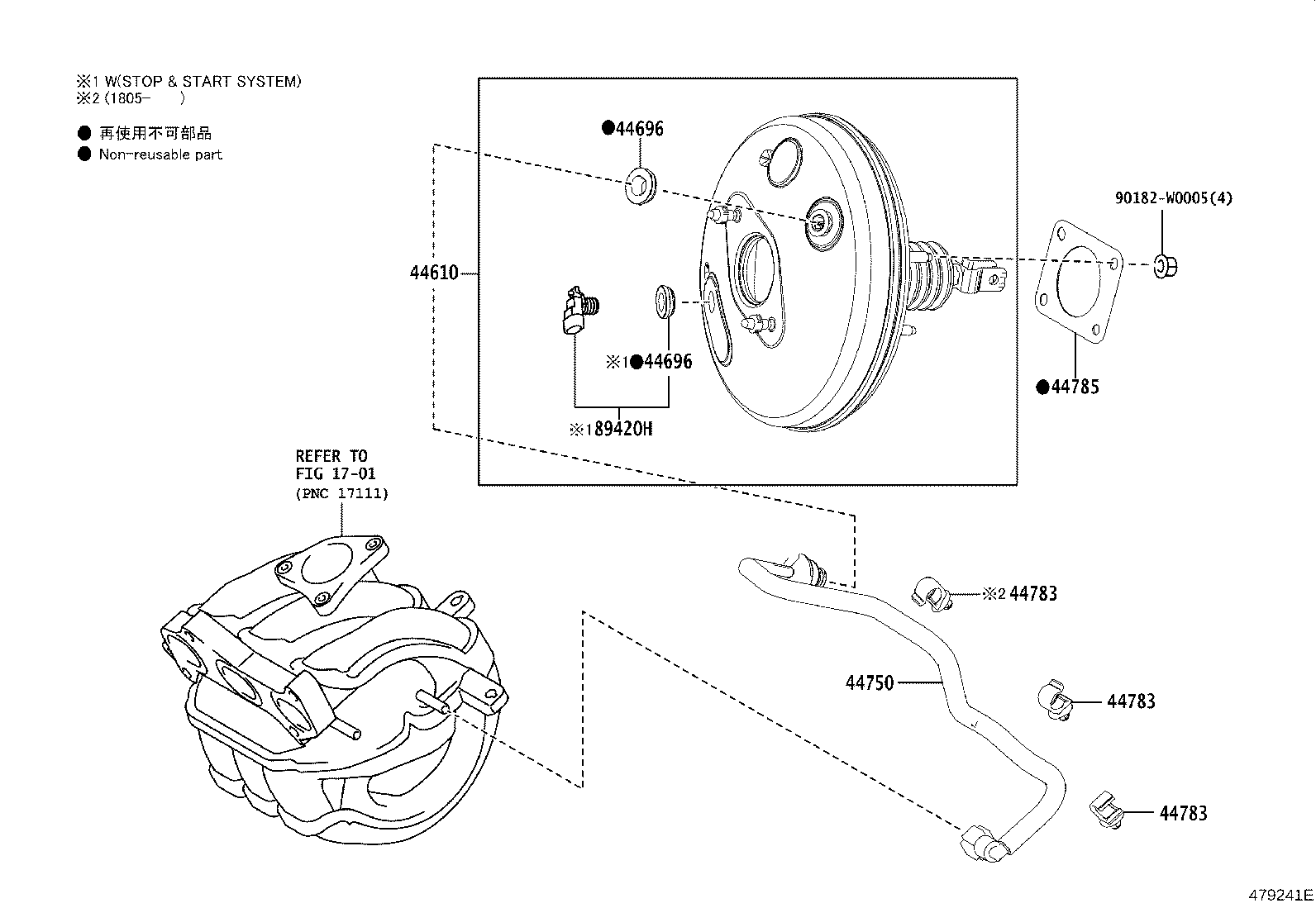

Figure 479241E

479241E 2014-05 → —

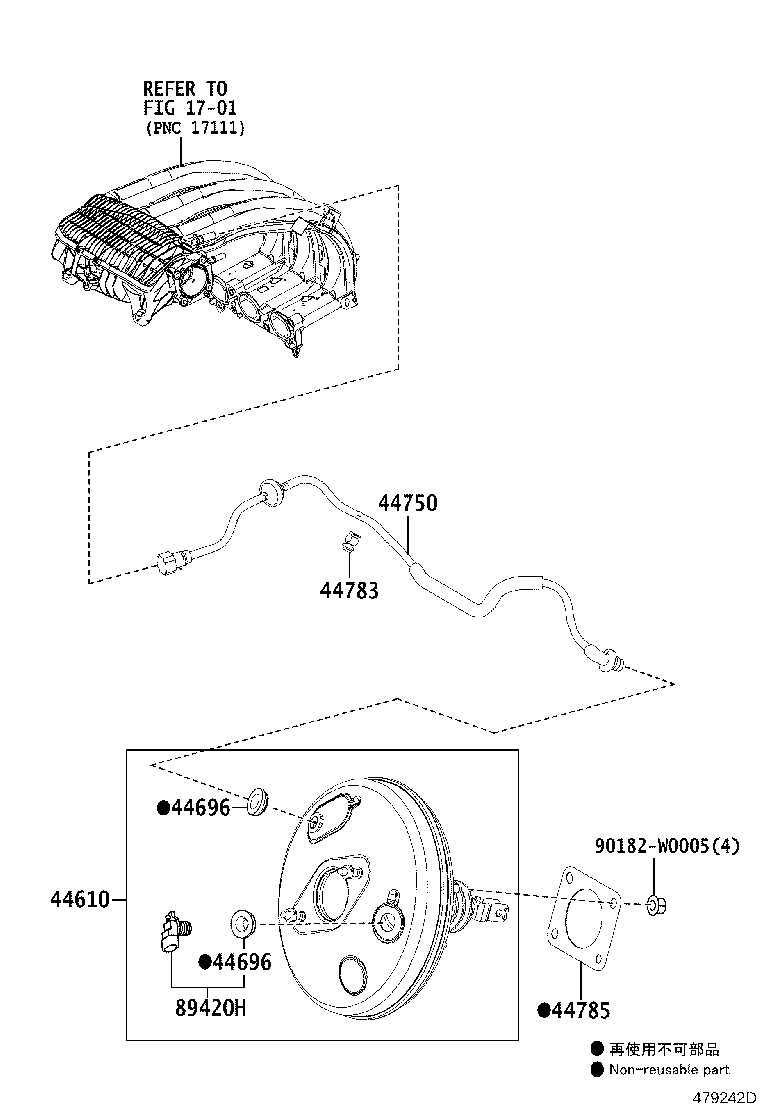

Figure 479242D

479242D 2014-05 → —

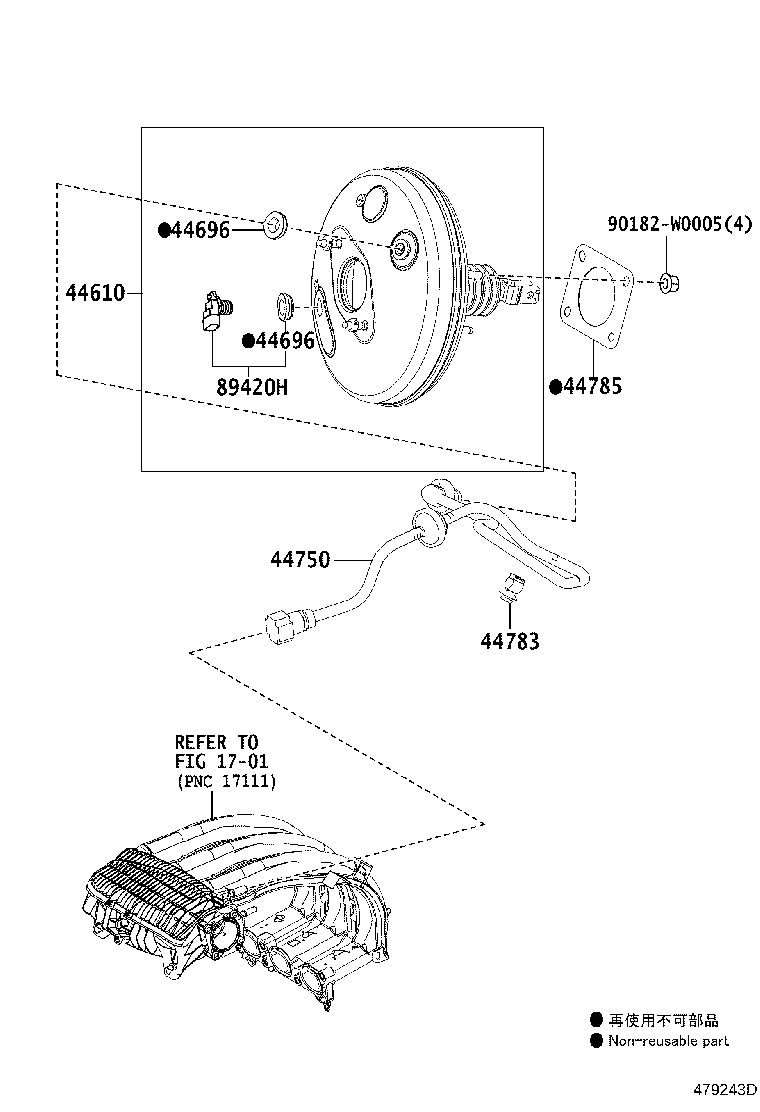

Figure 479243D

479243D 2014-05 → —

Part groups

PNC	Description
44610	Booster Assy, Brake
44696	Grommet, Check Valve
44750	Hose Assy, Vacuum
44783	Clamp, Vacuum Hose
44785	Gasket, Brake Booster
89420H	Sensor Assy, Vacuum

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
