Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

16 part groups · 2 illustrations

Illustrations

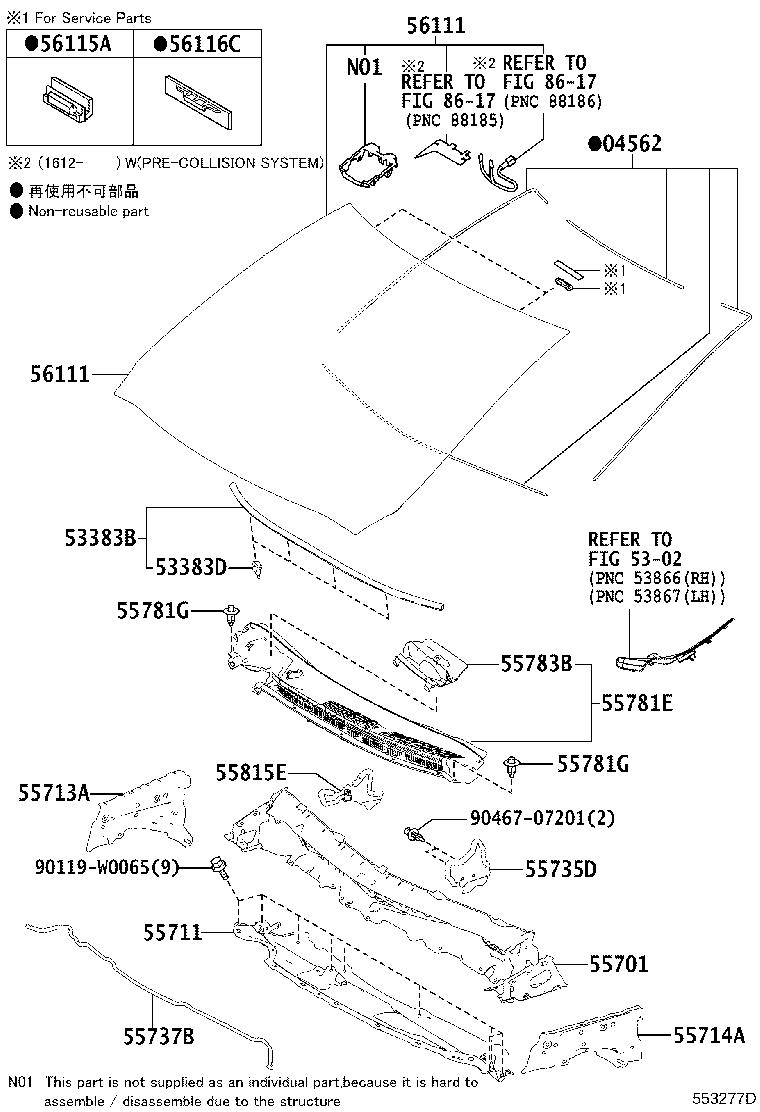

Figure 553270D 553270D 2014-05 → — Figure 553277D 553277D 2014-05 → —

Part groups

PNCDescription
04562 Dam Kit, Windshield Glass
53383B Seal, Hood TO Cowl Top
53383D Clip(FOR HOOD TO COWL TOP SEAL)
55701 Panel Sub-assy, Cowl
55711 Panel, Cowl Top, Outer
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
55735D Seal, Front Air Shutter, RH
55737B Seal, Heater Air Duct Splash Shield, NO.1
55781E Louver Sub-assy, Cowl Top Ventilator
55781G Clip, Cowl Top Ventilator Louver
55783B Louver, Cowl Top Ventilator, Center NO.1
55815E Seal, Front Ventilator, NO.1
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
