Toyota Aygo
2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe
Supported model
Data version 2018-04

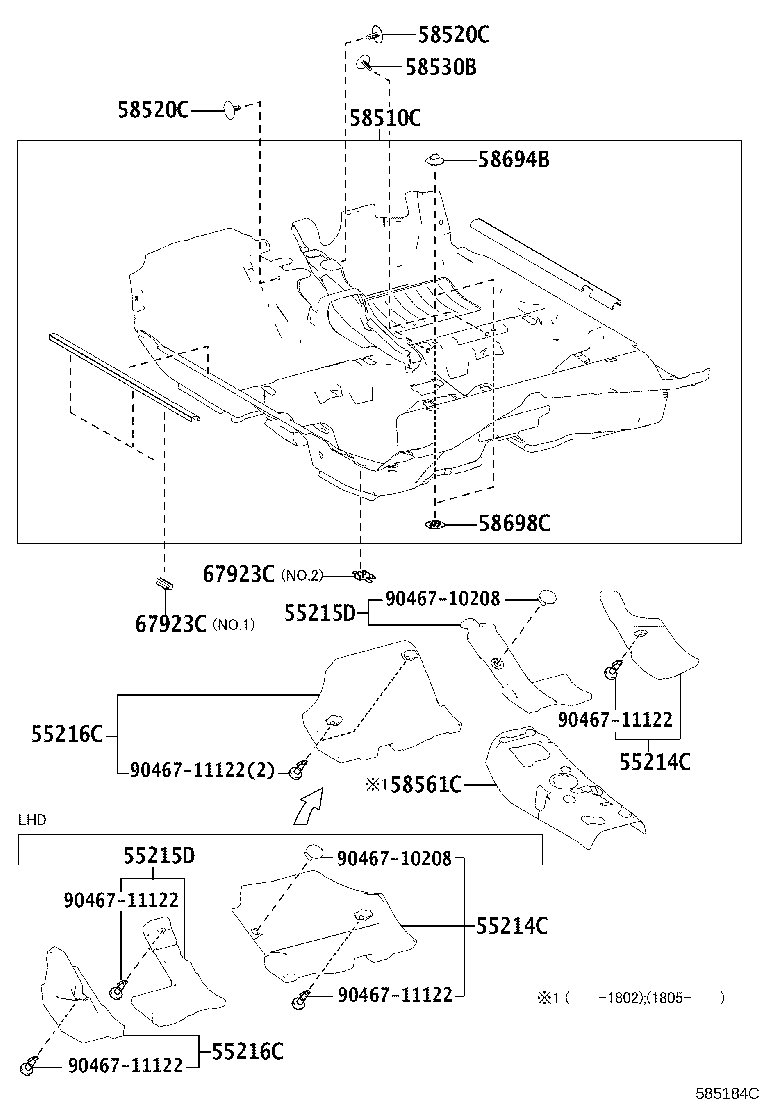

Mat & Carpet
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55214C | Pad, Dash Panel Insulator, NO.2 |
| 55215D | Pad, Dash Panel Insulator, NO.3 |
| 55216C | Pad, Dash Panel Insulator, NO.4 |
| 58510C | Carpet Assy, Front Floor, Front |
| 58510H | Mat Assy, Floor |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58561C | Silencer, Front Floor, NO.1 |
| 58694B | Plate, Mat Set, Upper |
| 58698C | Plate, Mat Set, Lower |
| 67923C | Clamp, Door Scuff Plate, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
