Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

35 part groups · 3 illustrations

Illustrations

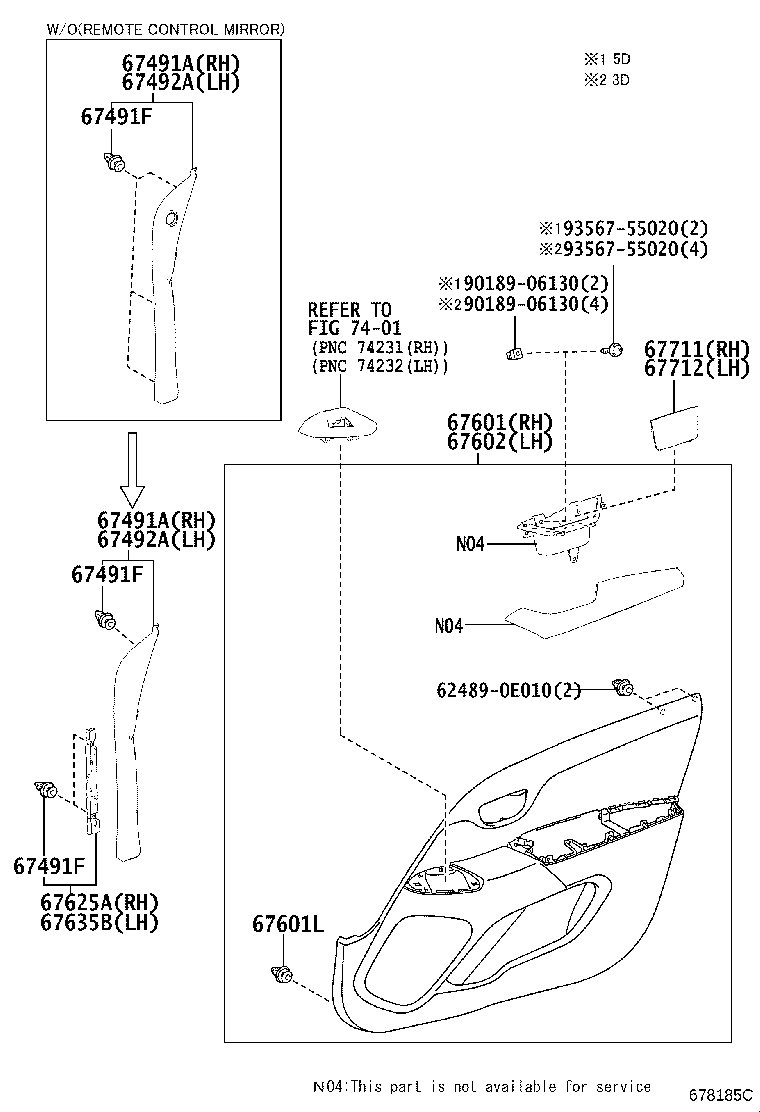

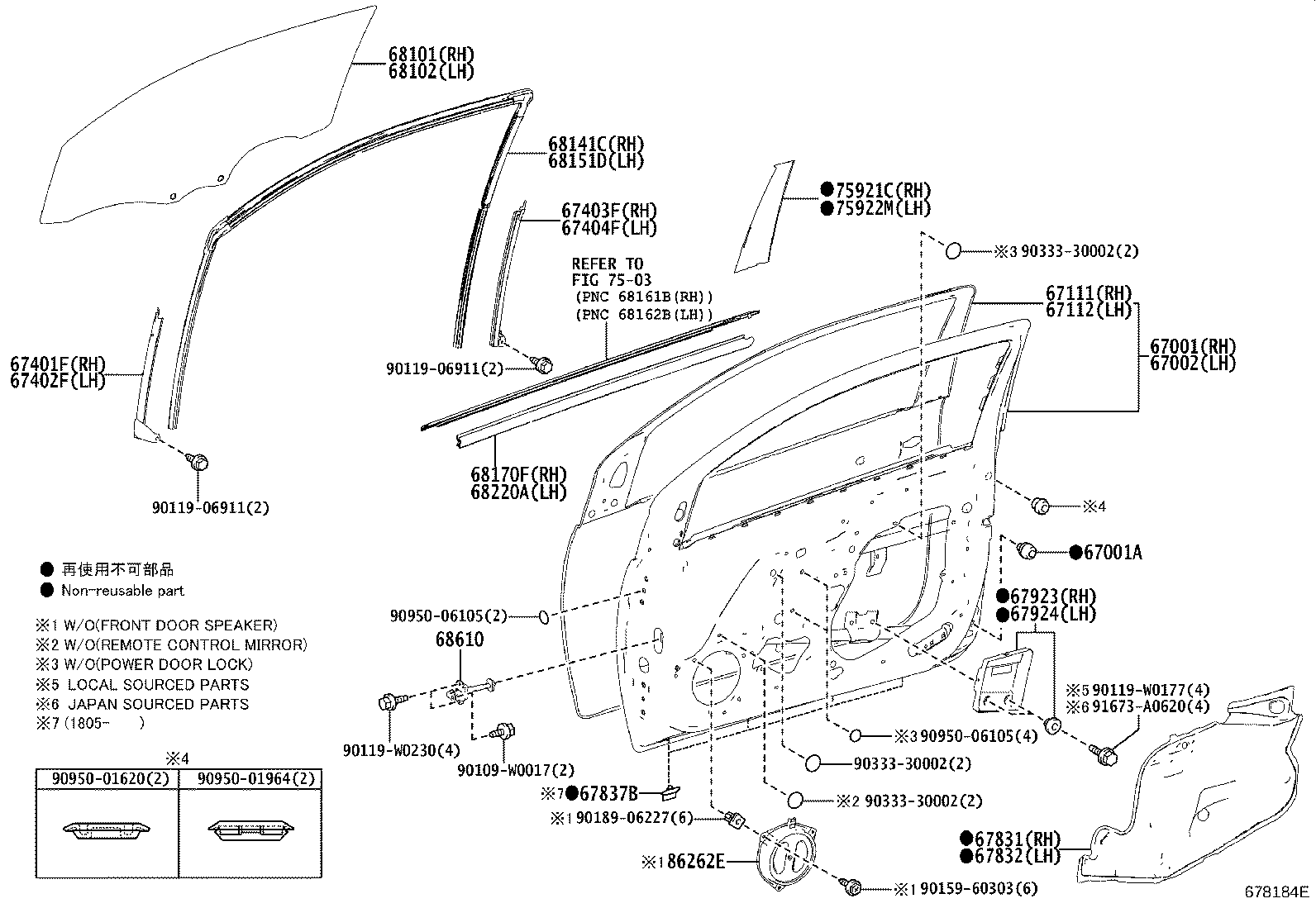

Figure 678183F 678183F 2014-05 → — Figure 678184E 678184E 2014-06 → — Figure 678185C 678185C 2014-05 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67401F Frame Sub-assy, Front Door, Front Lower RH
67402F Frame Sub-assy, Front Door, Front Lower LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67491F Clip(FOR DOOR TRIM)
67492A Garnish, Front Door Lower Frame Bracket, LH
67601 Board Sub-assy, Front Door Trim, RH
67601L Clip(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67625A Bracket, Front Door Trim, NO.1
67635B Bracket, Door Trim, NO.1 LH
67711 Cover, Front Door Trim, RH
67712 Cover, Front Door Trim, LH
67715 Pad, Door Trim, NO.1
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67837B Seal, Front Door Dust Proof
67923 Cushion, Front Door Stiffener, NO.1
67924 Cushion, Front Door Stiffener, NO.2
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68151D Run, Front Door Glass, LH
68170F Weatherstrip Assy, Front Door Glass, Inner RH
68220A Weatherstrip Assy, Front Door Glass, Inner LH
68610 Check Assy, Front Door
75921C Tape, Black Out, NO.1 RH
75922M Tape, Black Out, NO.1 LH
86262E Cover, Speaker, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
