Toyota Aygo
2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe
Supported model
Data version 2018-04

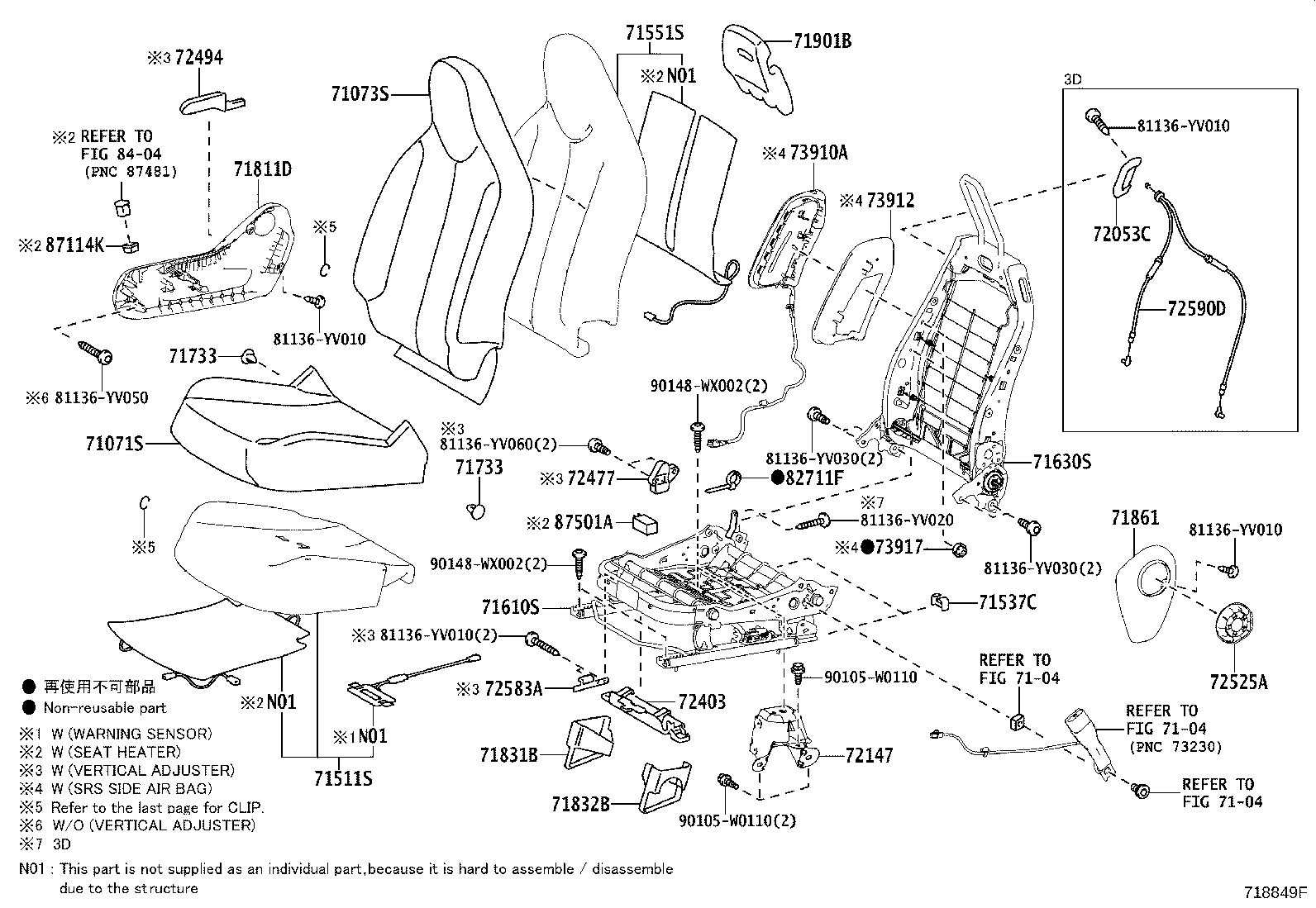

Front Seat & Seat Track
45 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537C | Protector, Front Seat Cushion Edge, RH |
| 71537D | Protector, Front Seat Cushion Edge, LH |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71733 | Retainer, Seat Cover Fastener, A (FOR FRONT SEAT) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71831B | Cover, Front Seat Hinge, RH |
| 71832B | Cover, Front Seat Hinge, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71901B | Insert Sub-assy, Front Seat Headrest |
| 72053C | Lever Sub-assy, Reclining Remote Control, RH |
| 72054A | Lever Sub-assy, Reclining Remote Control, LH |
| 72147 | Bracket, Front Inner Seat Track, Lower Rear RH |
| 72148 | Bracket, Front Inner Seat Track, Lower Rear LH |
| 72403 | Bracket Sub-assy, Seat Frame Set |
| 72477 | Spacer, Vertical Adjuster |
| 72494 | Handle, Vertical Adjusting, RH |
| 72495 | Handle, Vertical Adjusting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72583A | Bracket, Seat Side Garnish, RH |
| 72584A | Bracket, Seat Side Garnish, LH |
| 72590D | Cable Assy, Reclining Remote Control, RH |
| 72590E | Cable Assy, Reclining Remote Control, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73912 | Case, Seat Airbag, RH |
| 73917 | Hook, Seat Airbag |
| 73920A | Airbag Assy, Front Seat, LH |
| 73922 | Case, Seat Airbag, LH |
| 82711F | Clamp, Wiring Harness |
| 87114K | Cover, Heater |
| 87501A | Control Sub-assy, Seat Heater, RH |
| 87501B | Control Sub-assy, Seat Heater, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
