Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

20 part groups · 3 illustrations

Illustrations

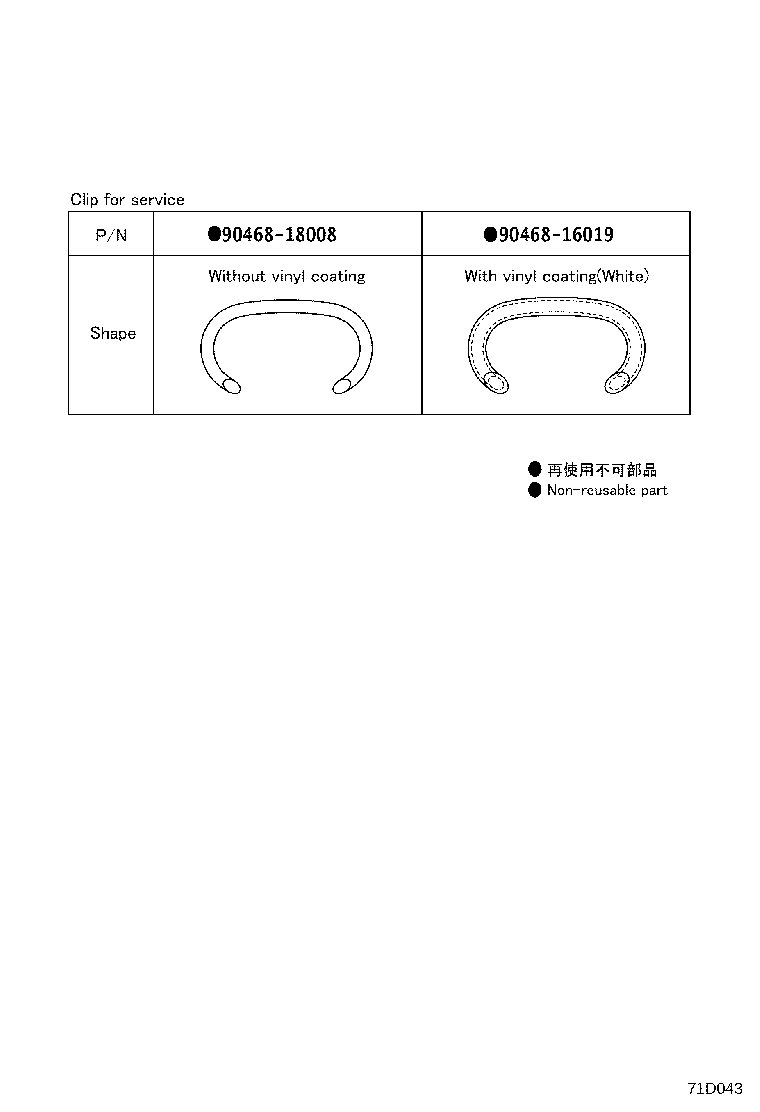

Figure 718853C 718853C 2014-05 → — Figure 718854C 718854C 2014-05 → — Figure 71D043 71D043 2014-05 → —

Part groups

PNCDescription
71017A Frame Sub-assy, Rear Seatback
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71305A Hinge Sub-assy, Rear Seatback, Center
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72057 Lever Sub-assy, Rear Seat Lock Control, RH
72058A Lever Sub-assy, Rear Seat Lock Control, LH
72601B Striker Sub-assy, Rear Seatback Lock
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72615A Cover, Rear Seatback Lock Striker, RH
72616A Cover, Rear Seatback Lock Striker, LH
72693 Hook, Rear Seat Cushion Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
