Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

37 part groups · 11 illustrations

Illustrations

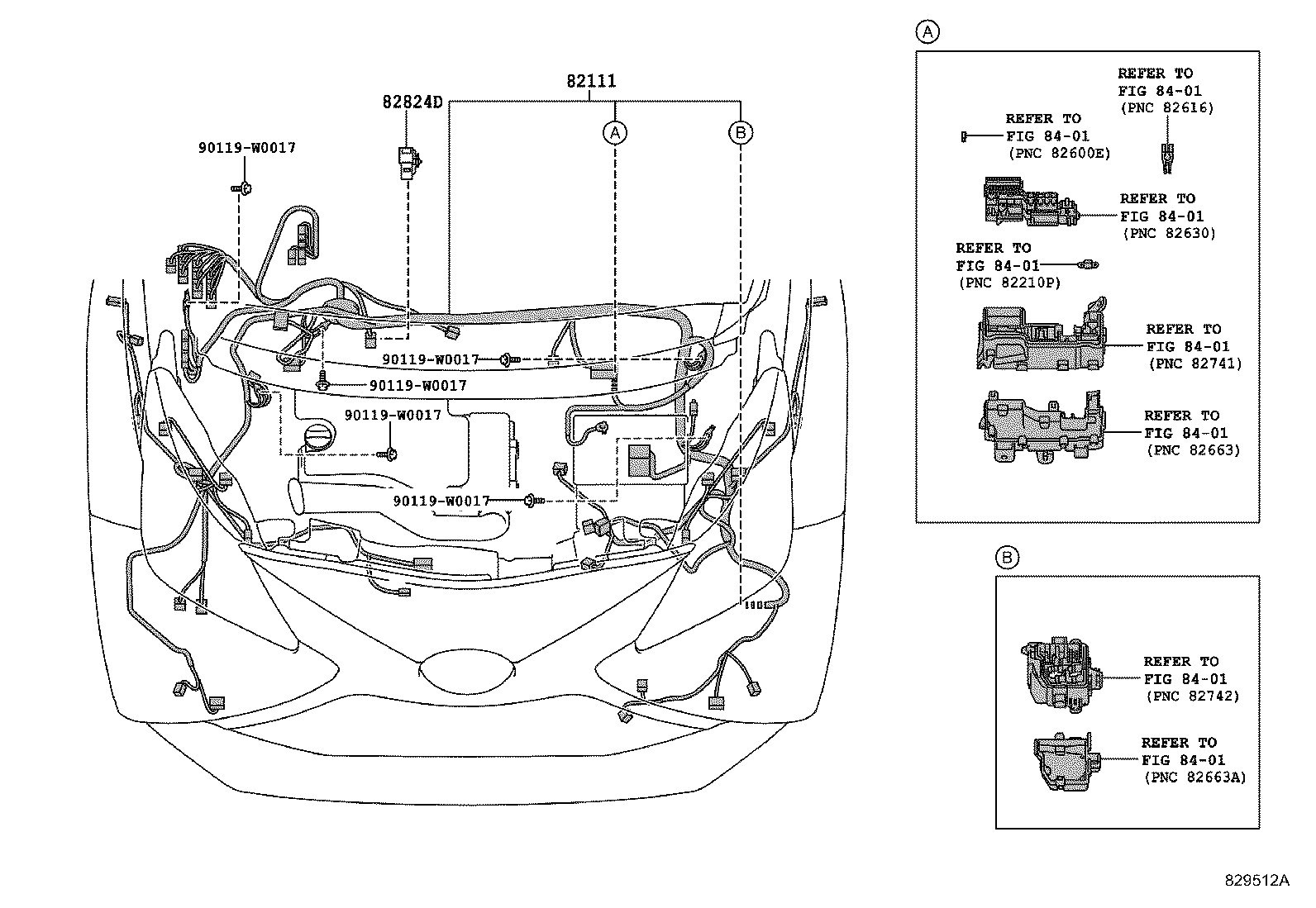

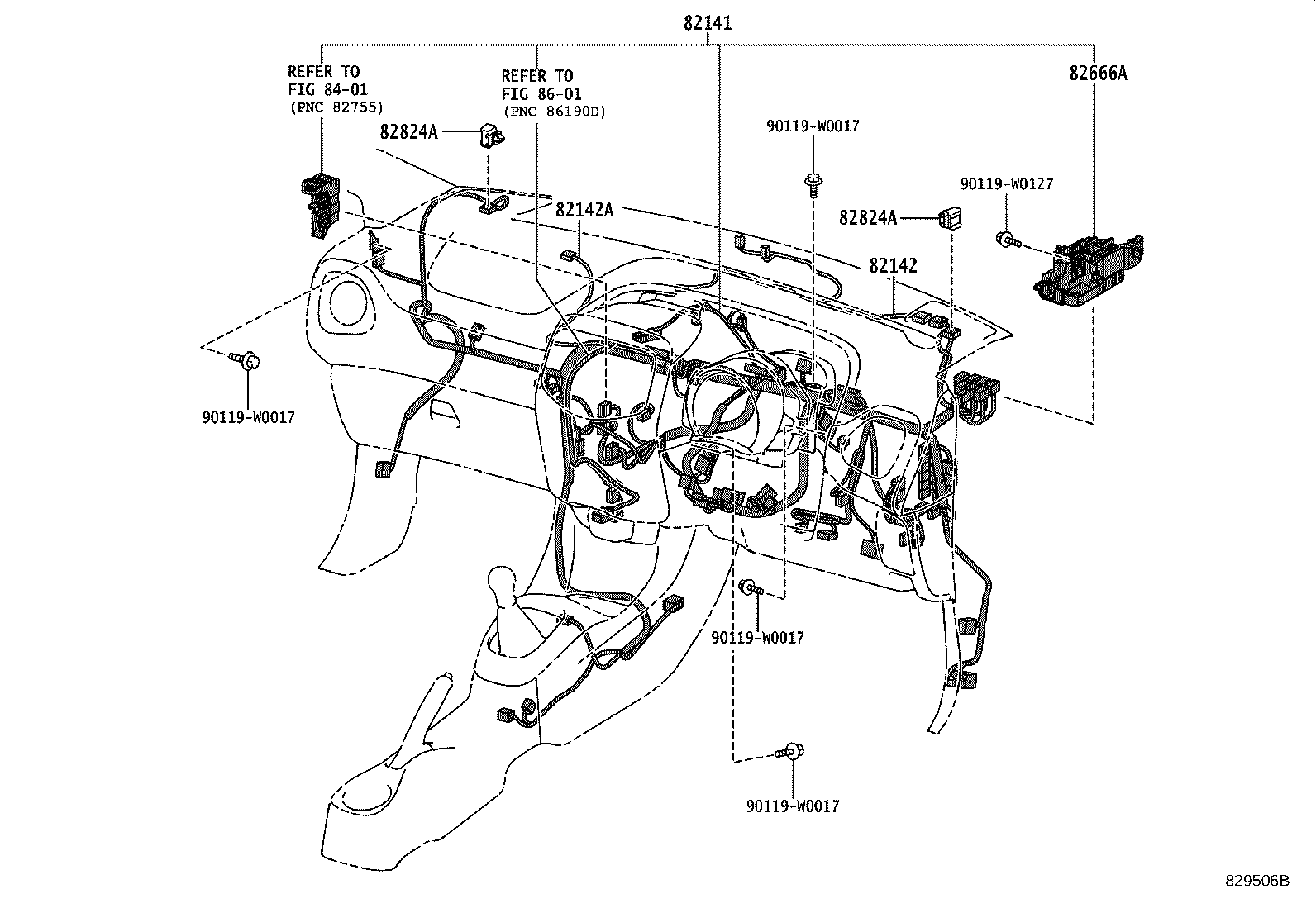

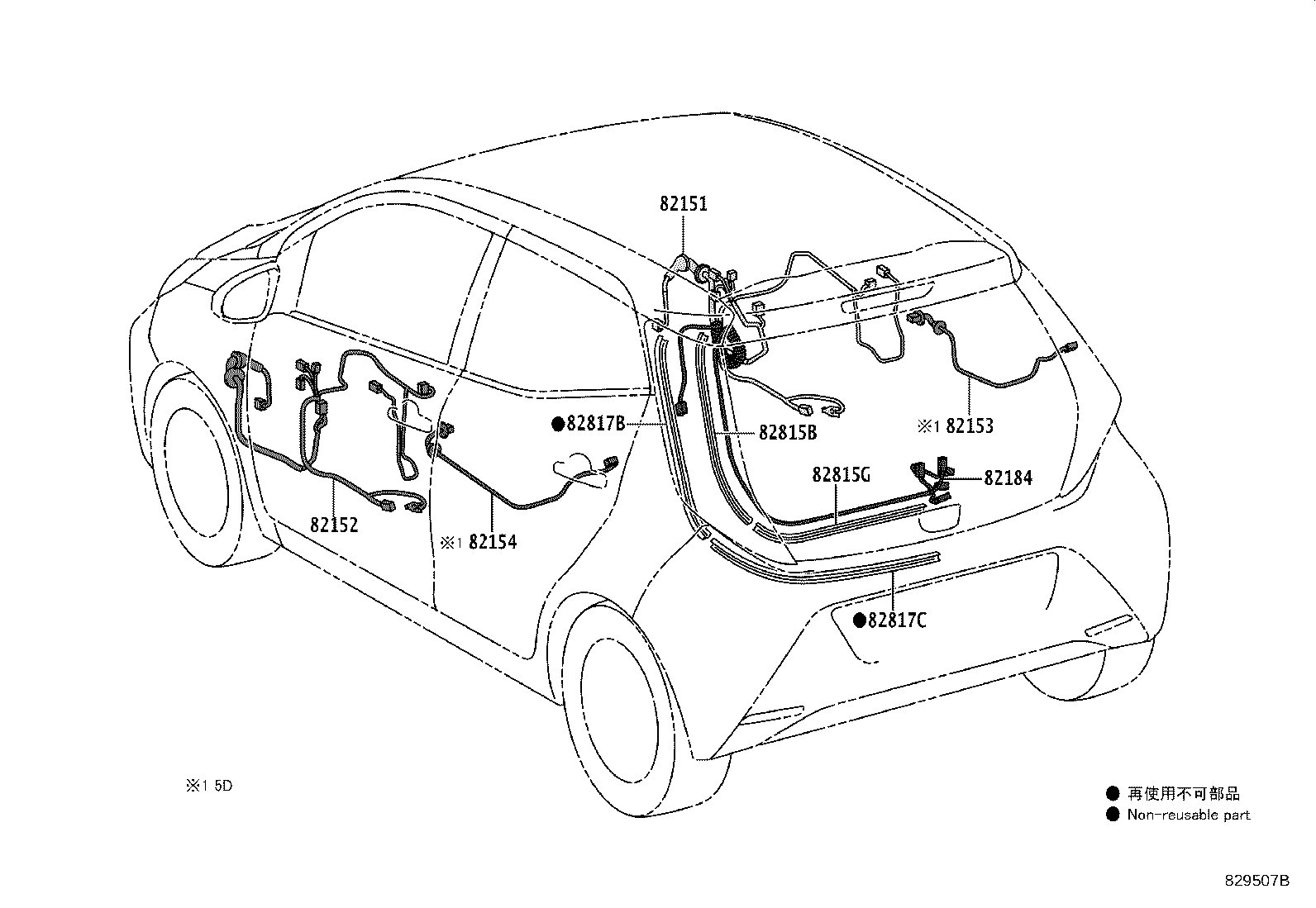

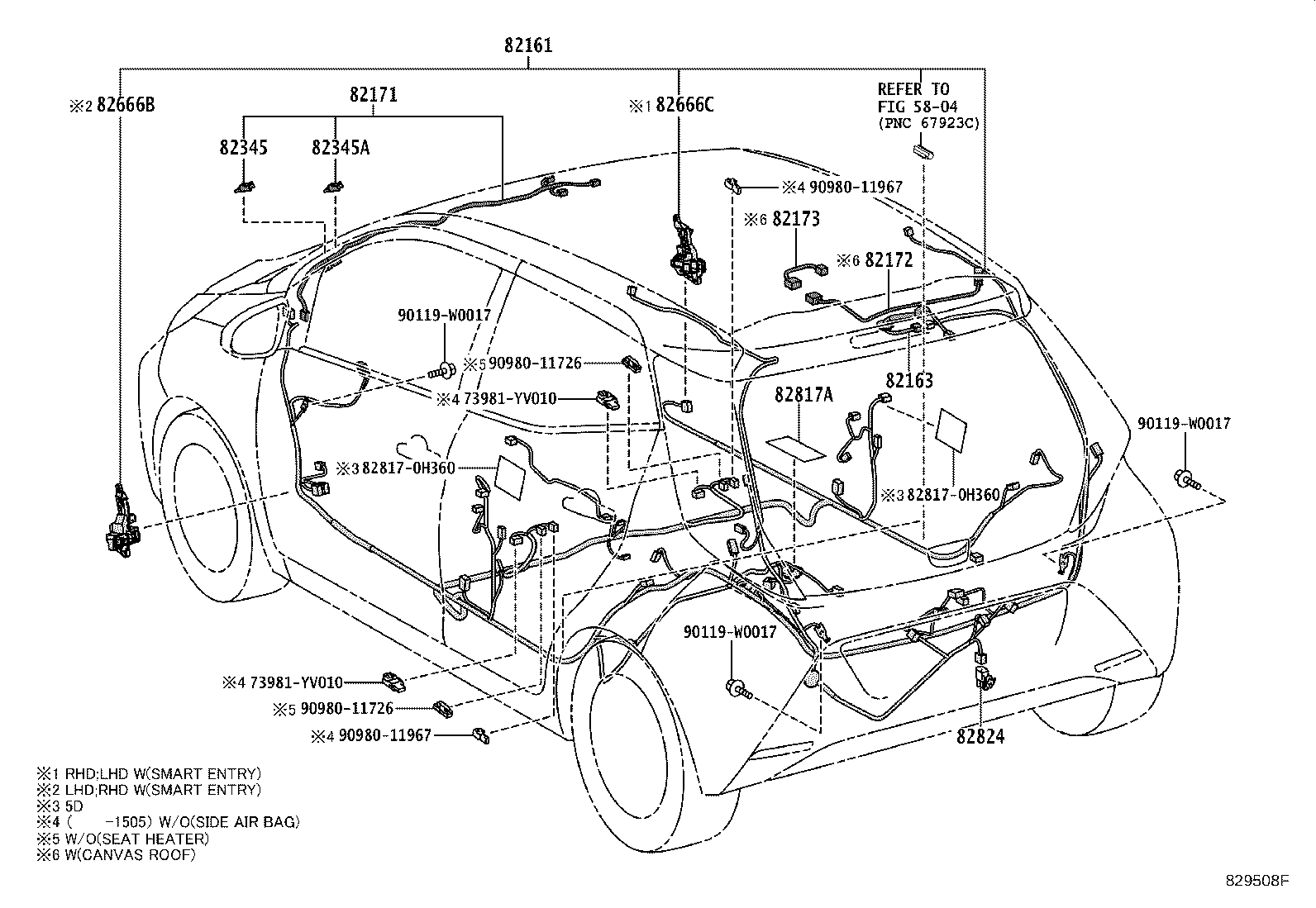

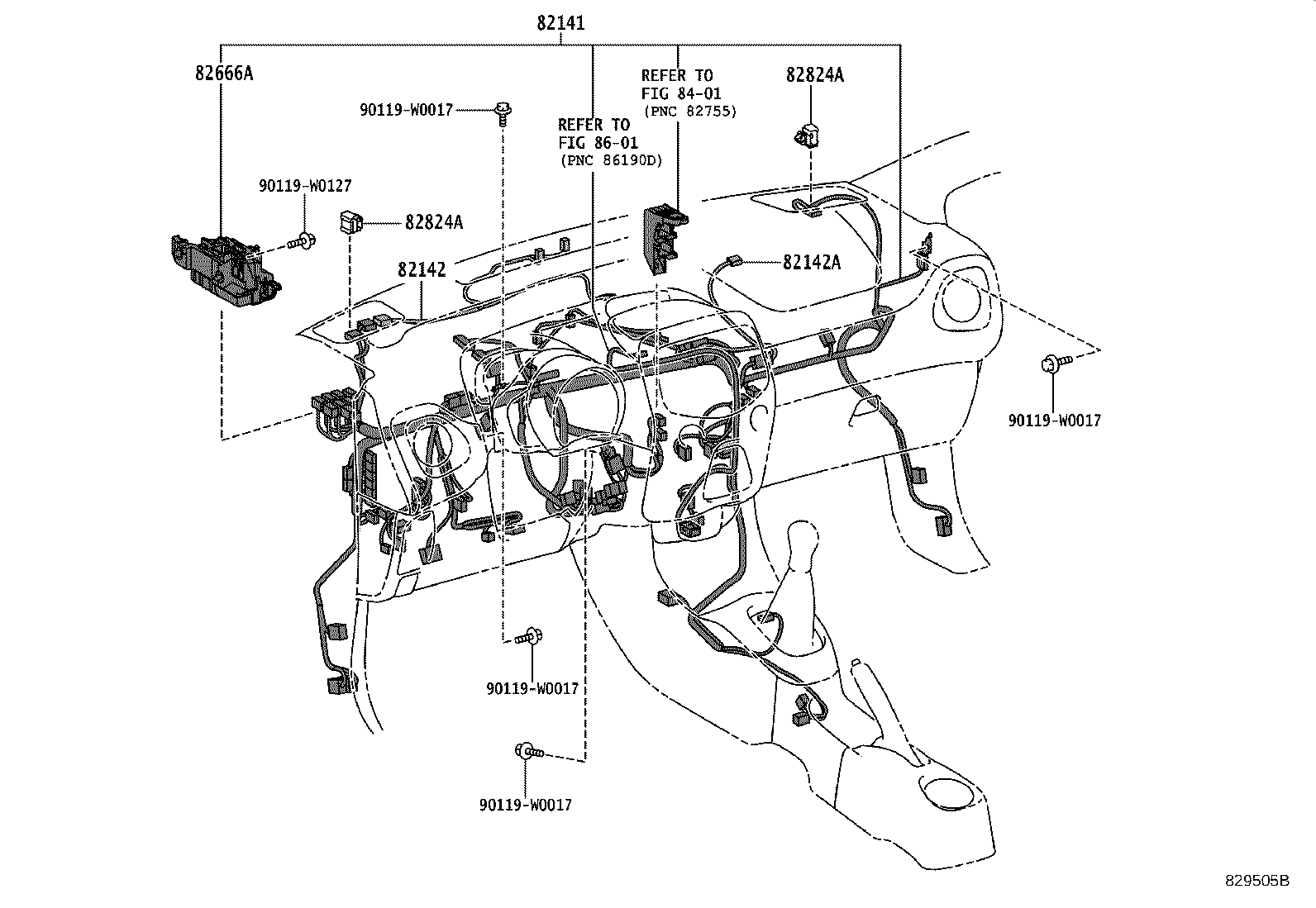

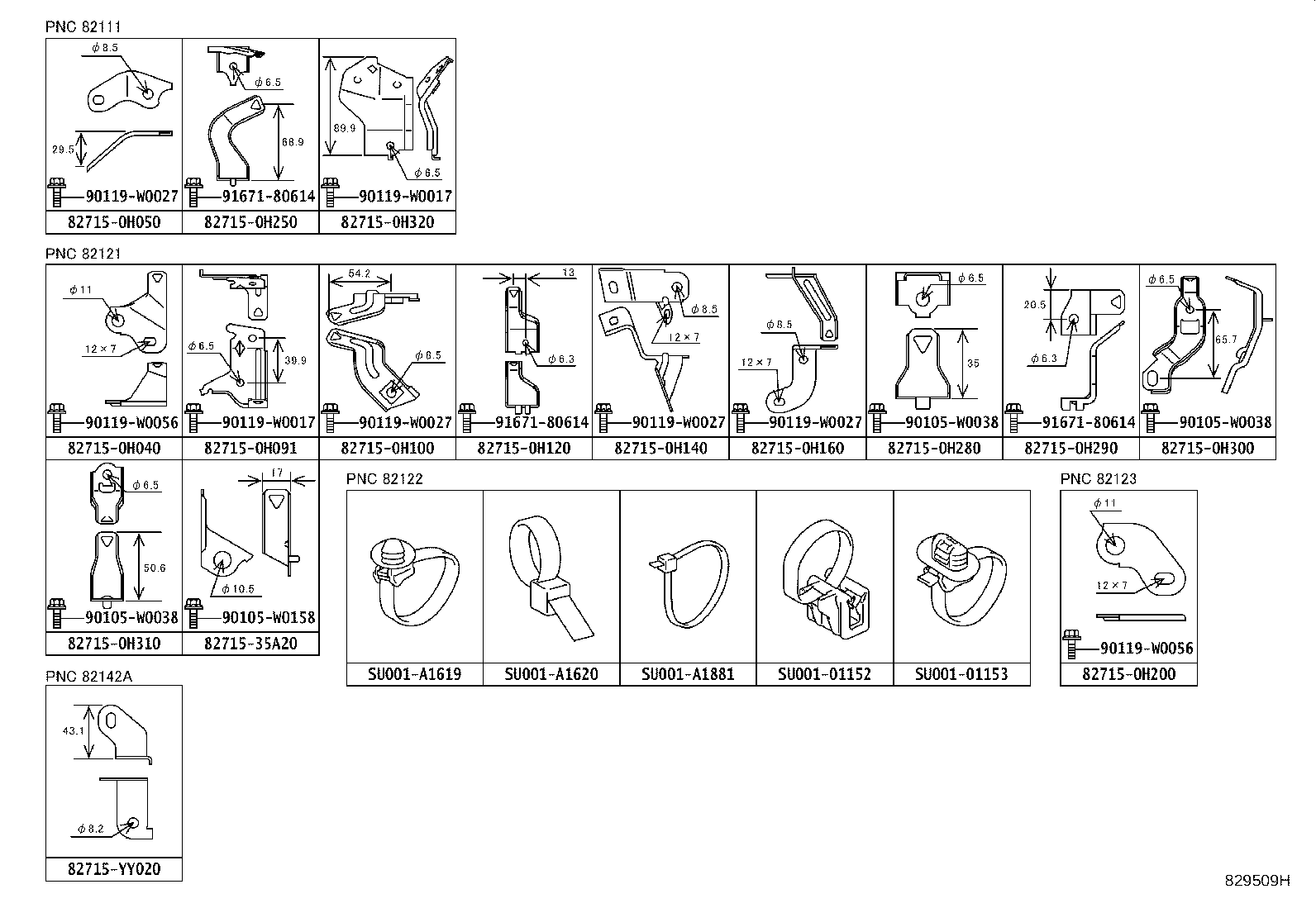

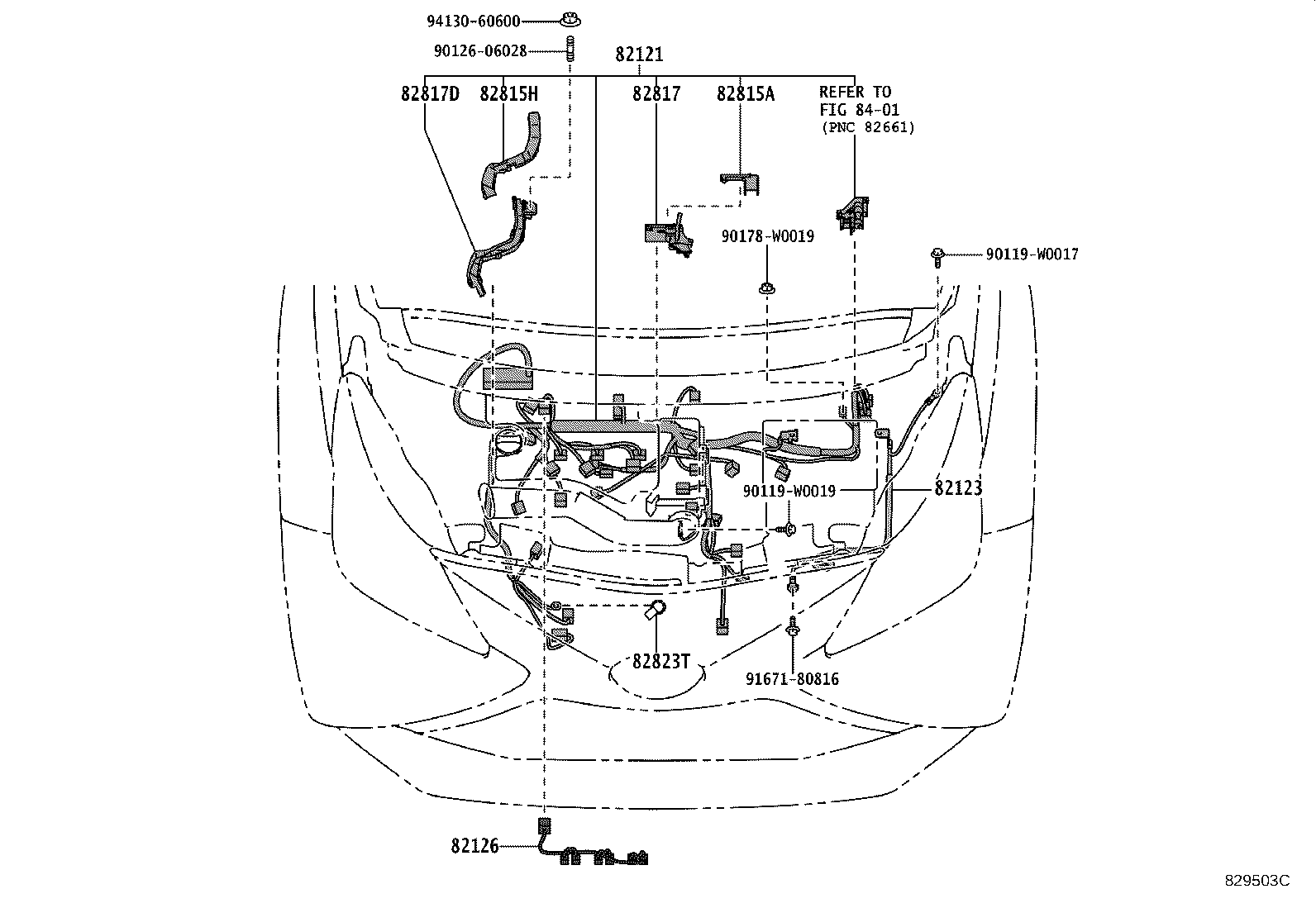

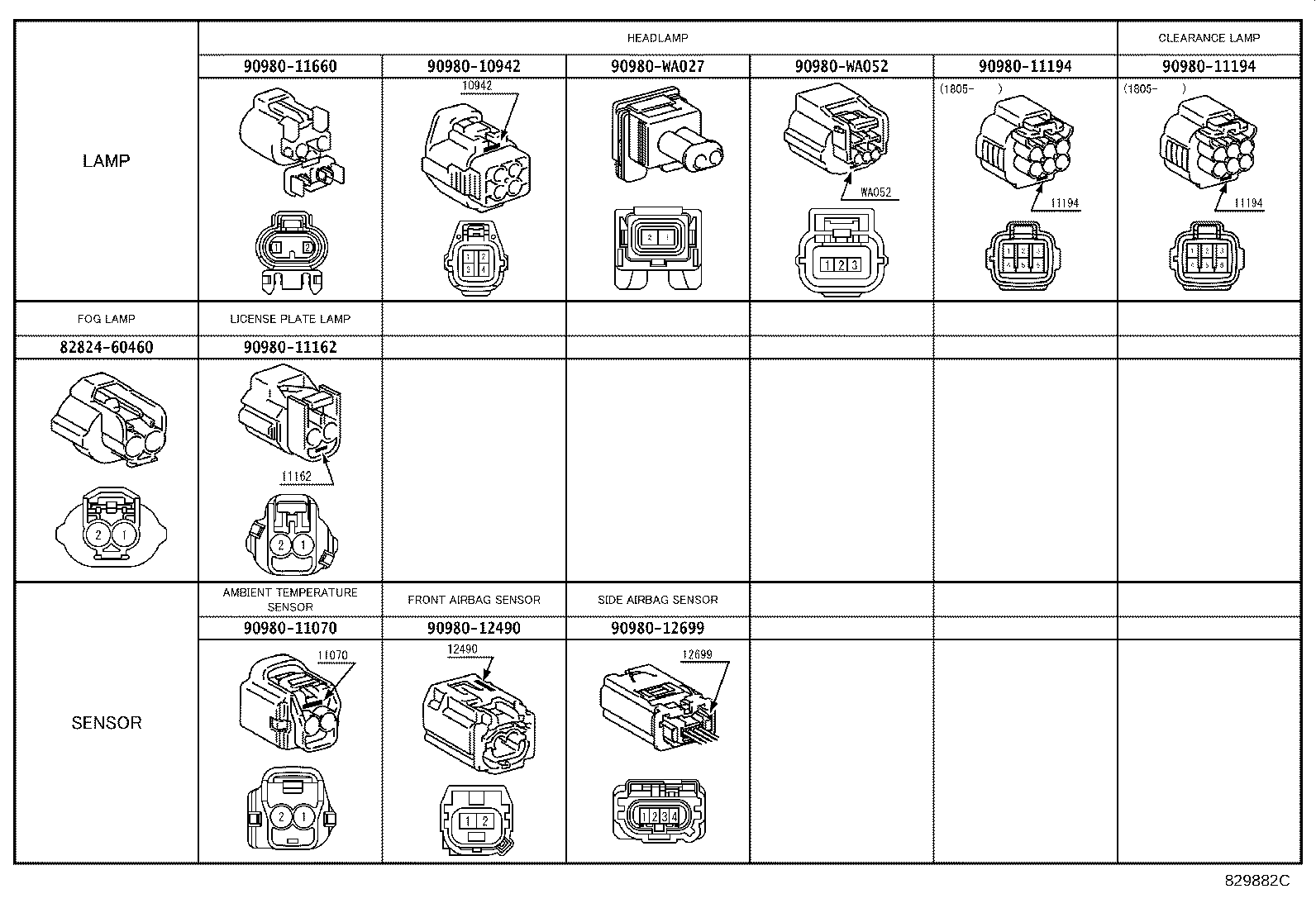

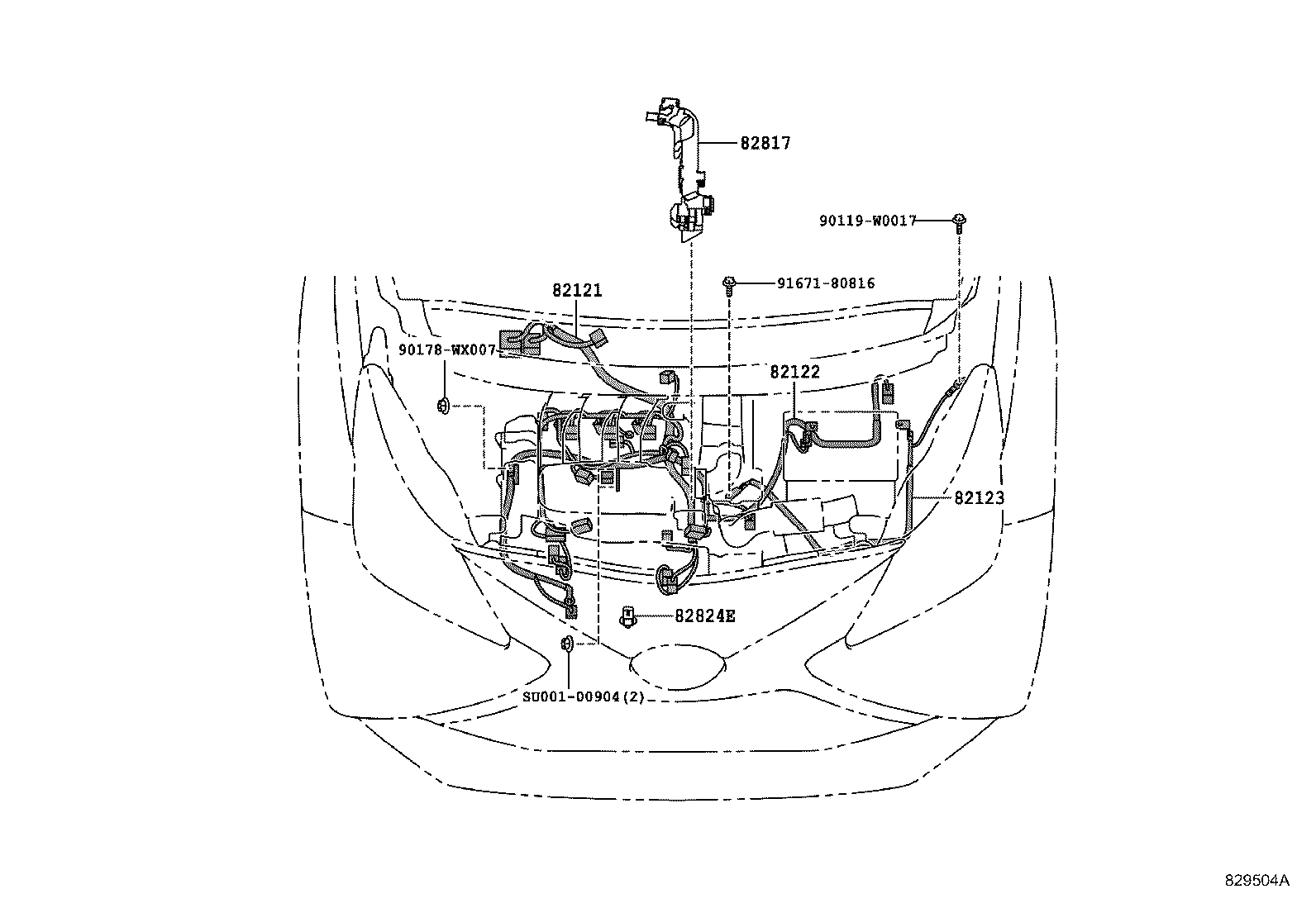

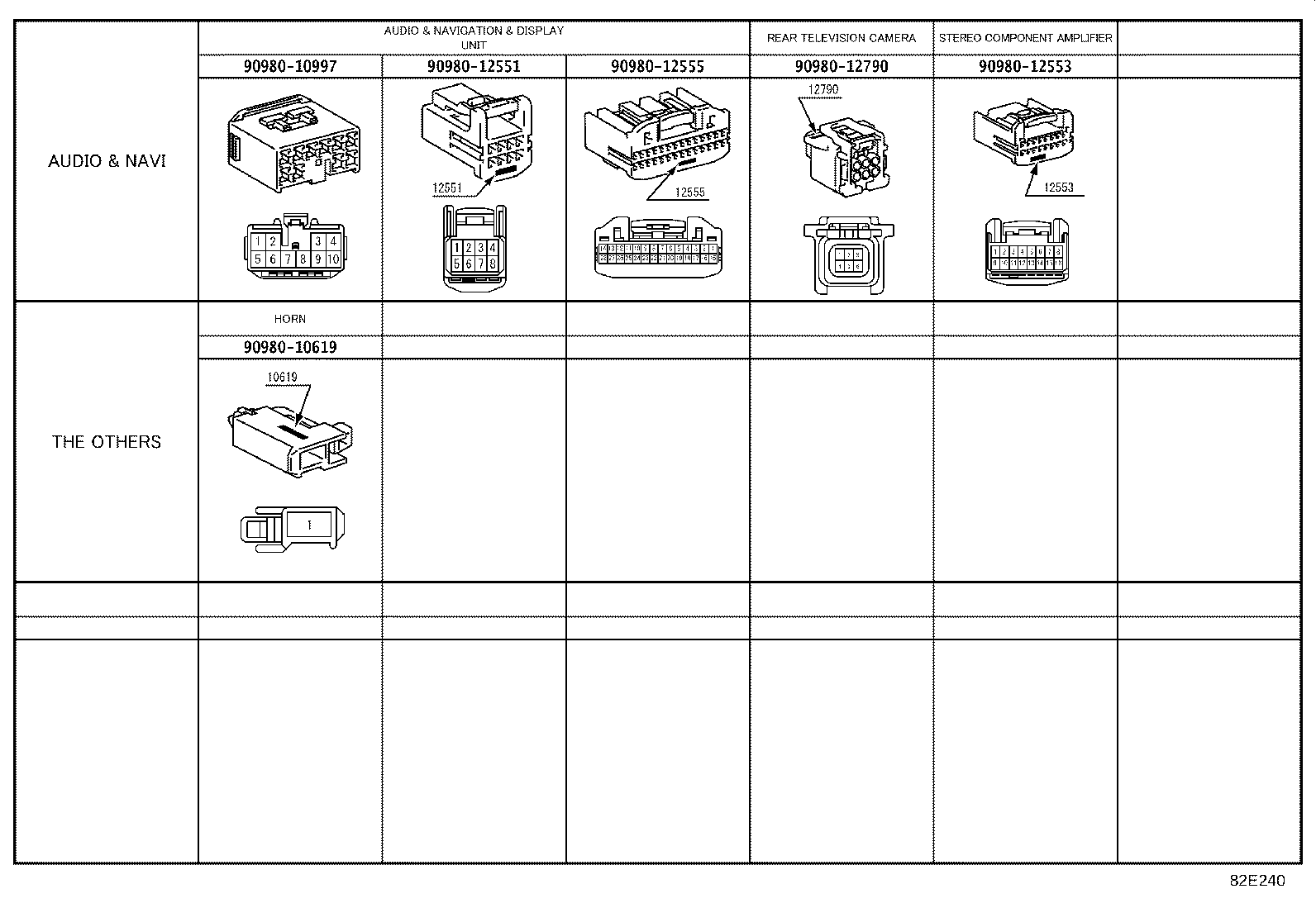

Figure 829502A 829502A 2014-05 → — Figure 829512A 829512A 2014-05 → — Figure 829503C 829503C 2014-05 → — Figure 829504A 829504A 2014-05 → — Figure 829505B 829505B 2014-05 → — Figure 829506B 829506B 2014-05 → — Figure 829507B 829507B 2014-05 → — Figure 829508F 829508F 2014-05 → — Figure 829509H 829509H 2014-05 → — Figure 829882C 829882C 2014-05 → — Figure 82E240 82E240 2014-05 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82126 Wire, Engine
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82184 Wire, Back Door, NO.1
82345 Diode
82345A Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
