Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

6 part groups · 3 illustrations

Illustrations

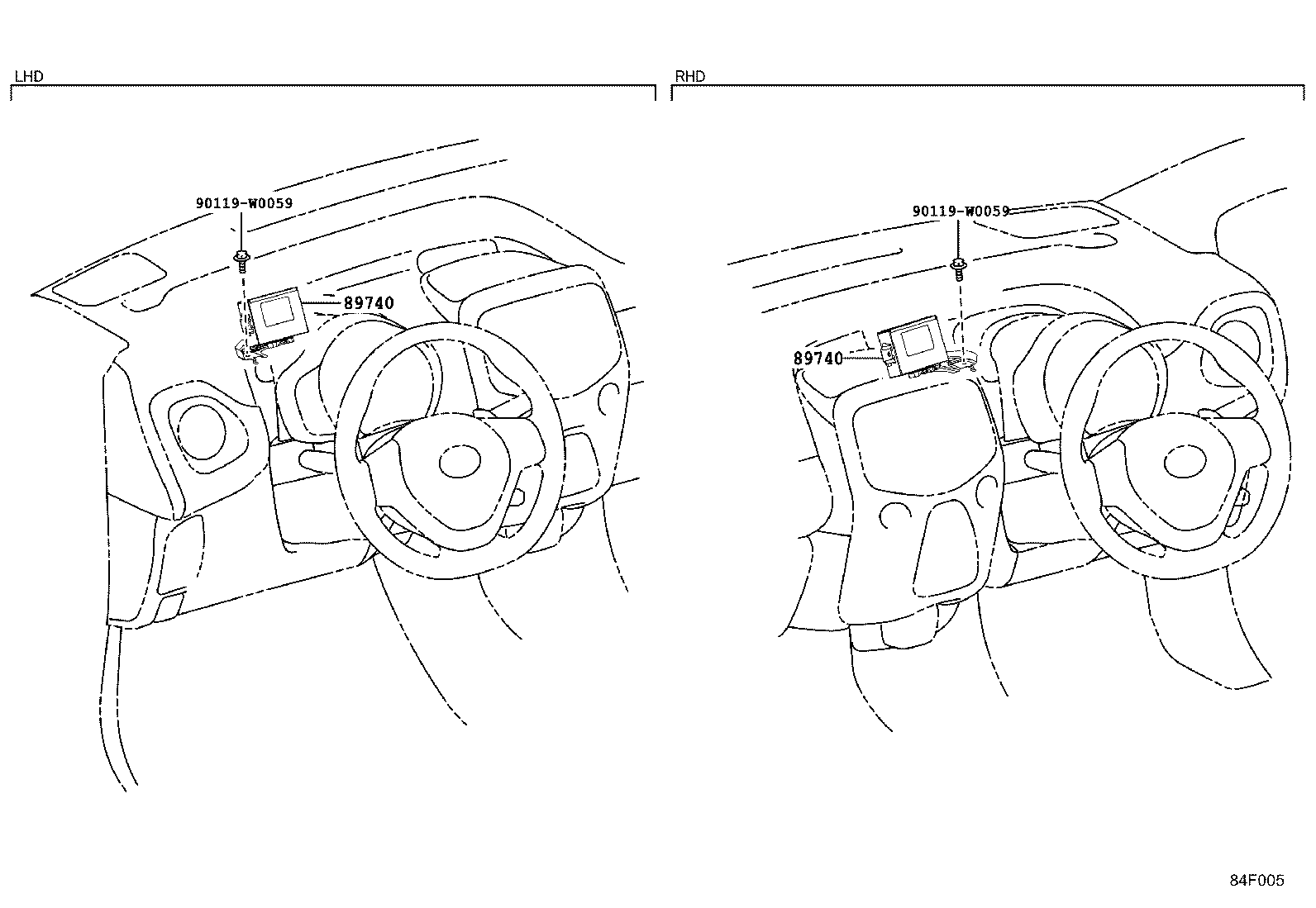

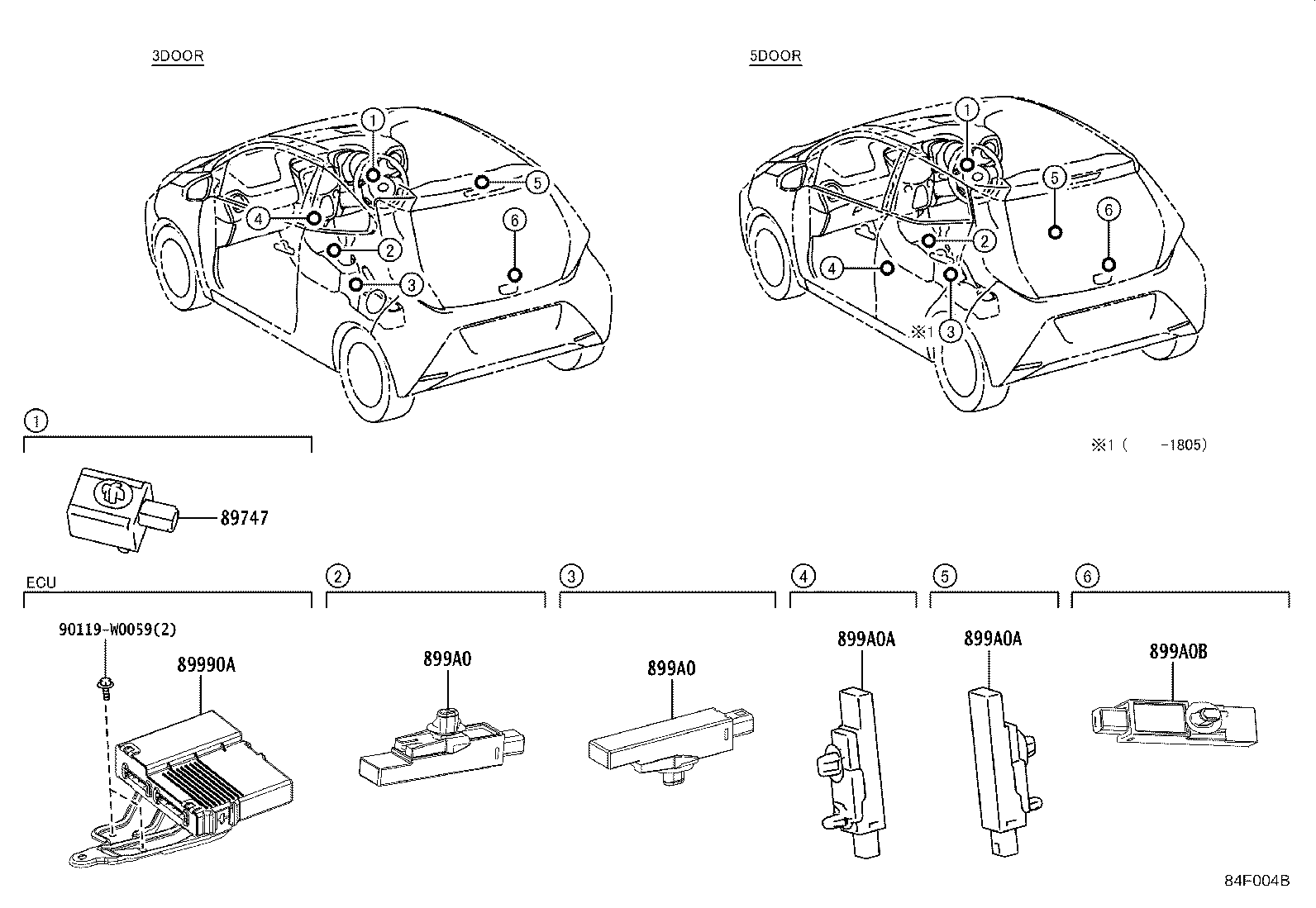

Figure 84F003B 84F003B 2014-05 → — Figure 84F004B 84F004B 2014-05 → — Figure 84F005 84F005 2014-05 → —

Part groups

PNCDescription
89740 Computer Assy, Door Control W/Receiver
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A0B Antenna Assy, Indoor Electrical Key, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
