Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

7 part groups · 2 illustrations

Illustrations

Figure 84F006A

84F006A 2014-05 → —

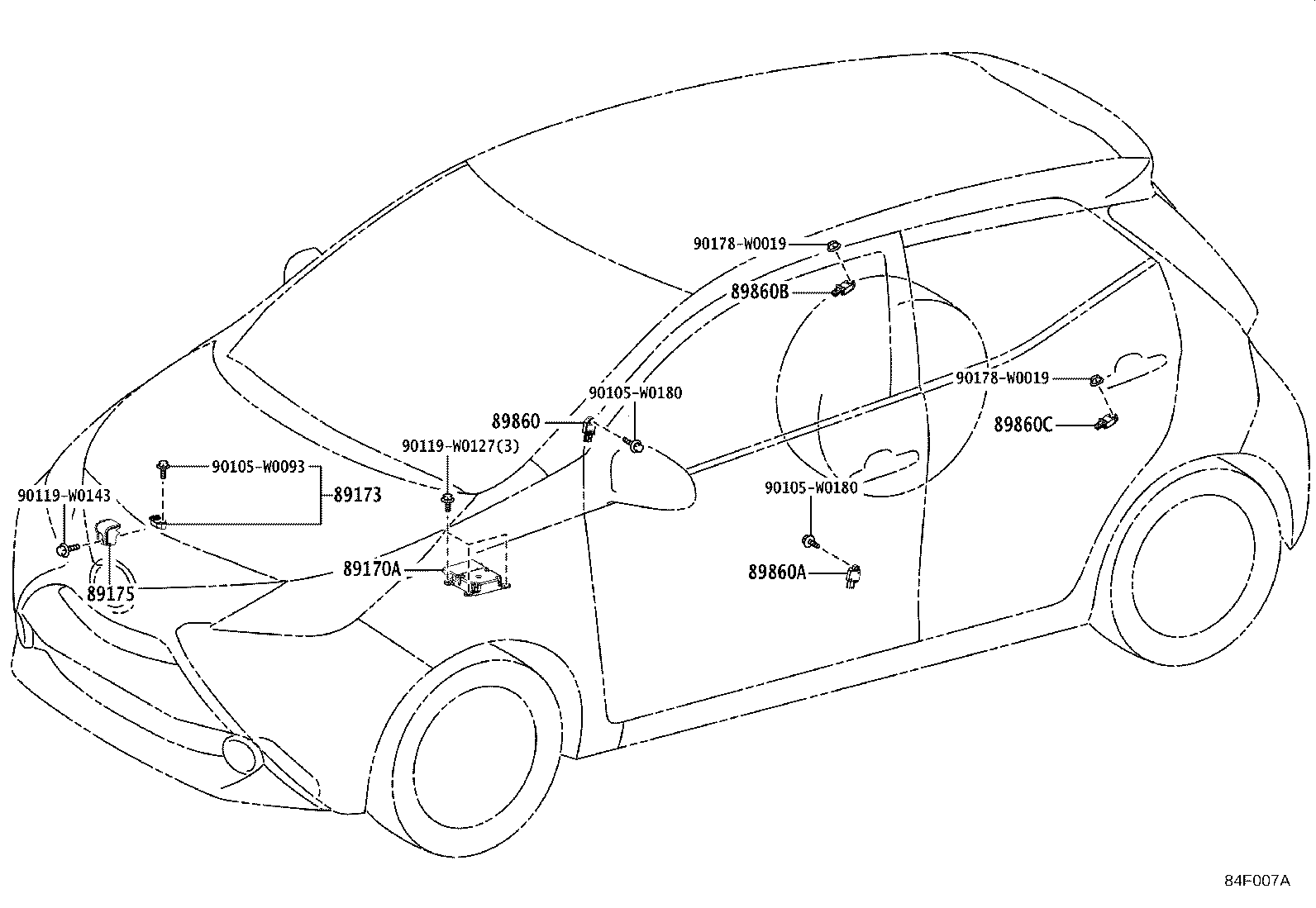

Figure 84F007A

84F007A 2014-05 → —

Part groups

PNC	Description
89170A	Computer Assy, Airbag
89173	Sensor, Airbag, Front
89175	Bracket, Airbag Sensor
89860	Sensor Assy, Side Airbag, RH
89860A	Sensor Assy, Side Airbag, LH
89860B	Sensor Assy, Side Airbag, RH, NO.2
89860C	Sensor Assy, Side Airbag, LH, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
