Toyota Aygo

2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

16 part groups · 6 illustrations

Illustrations

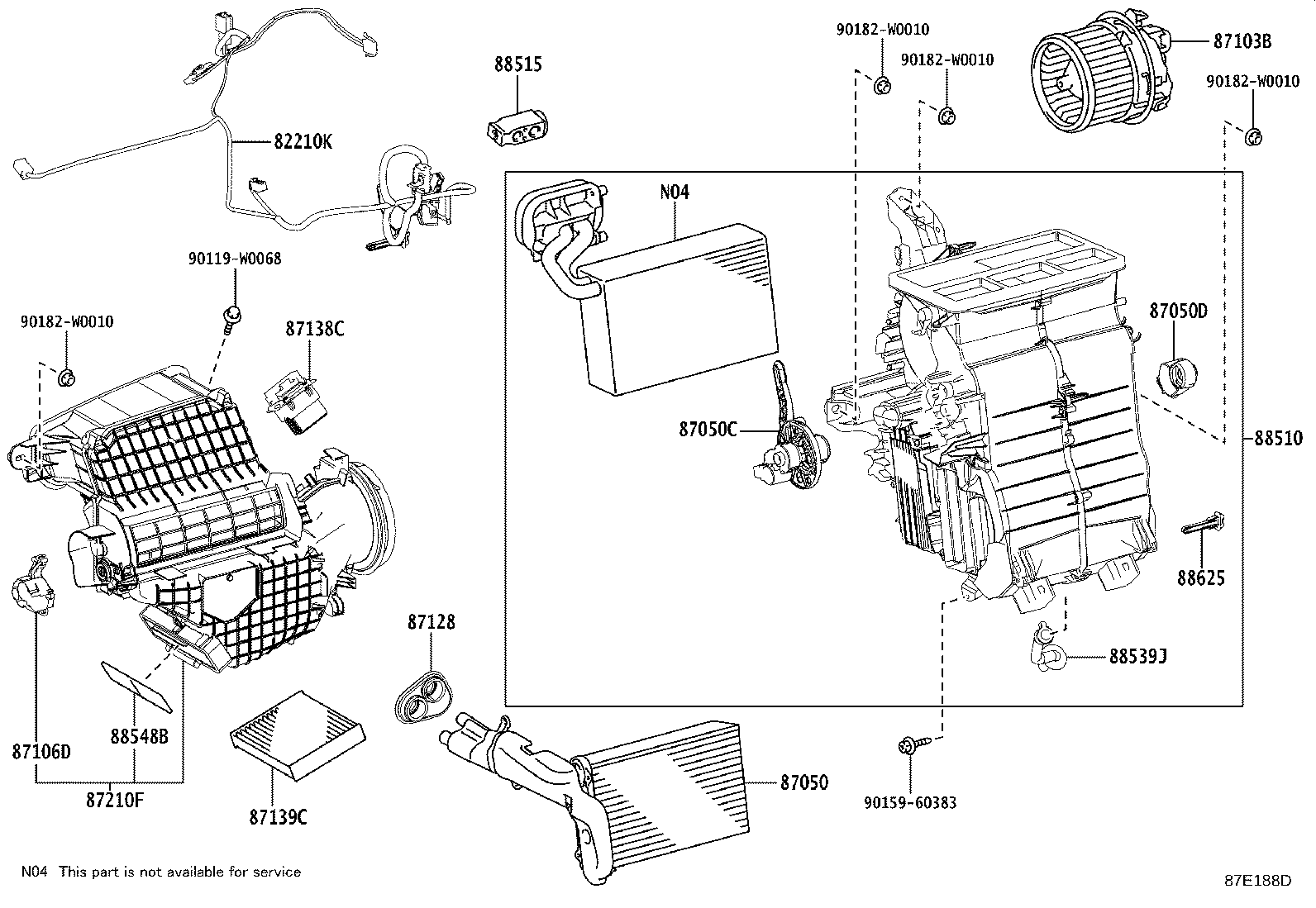

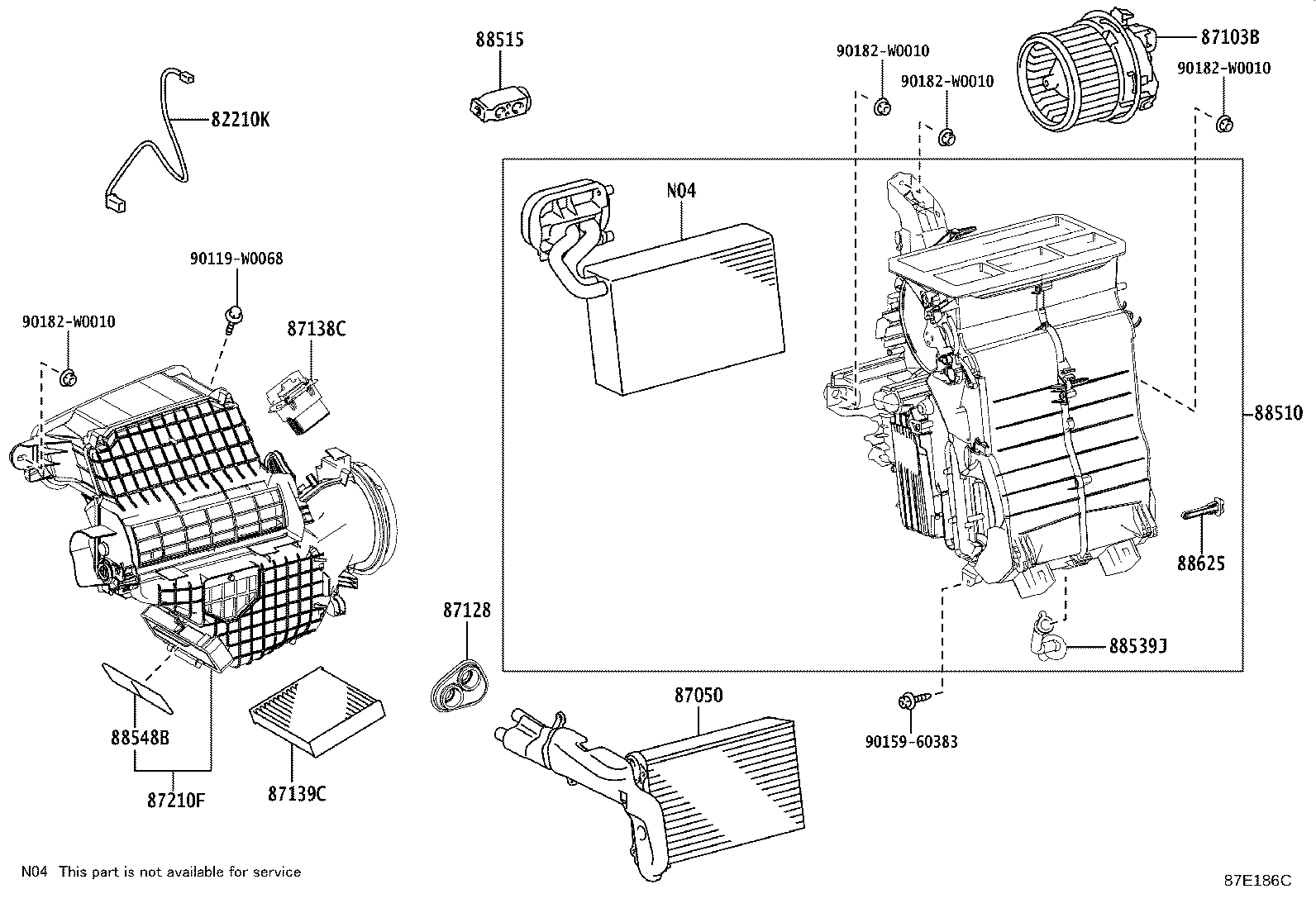

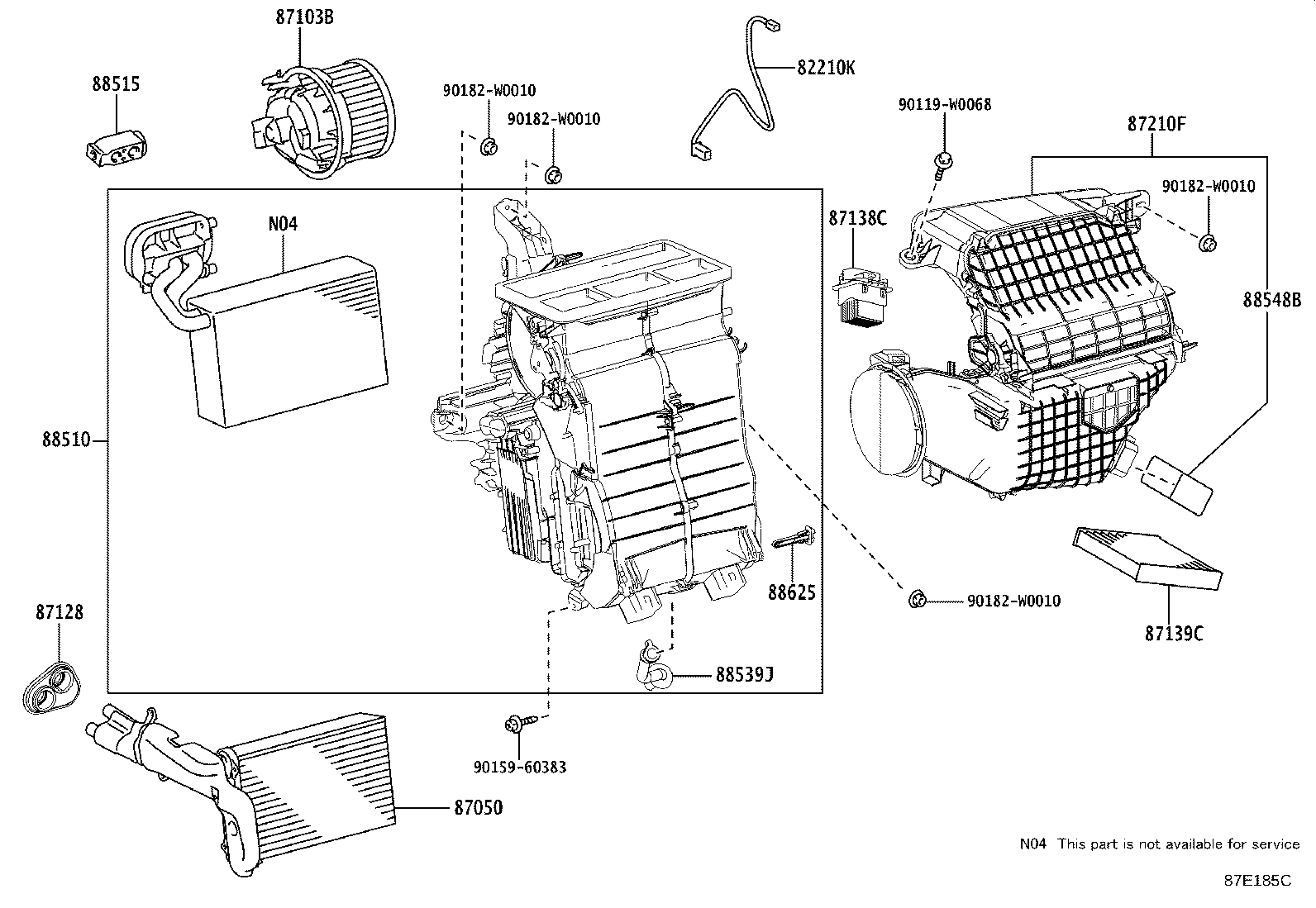

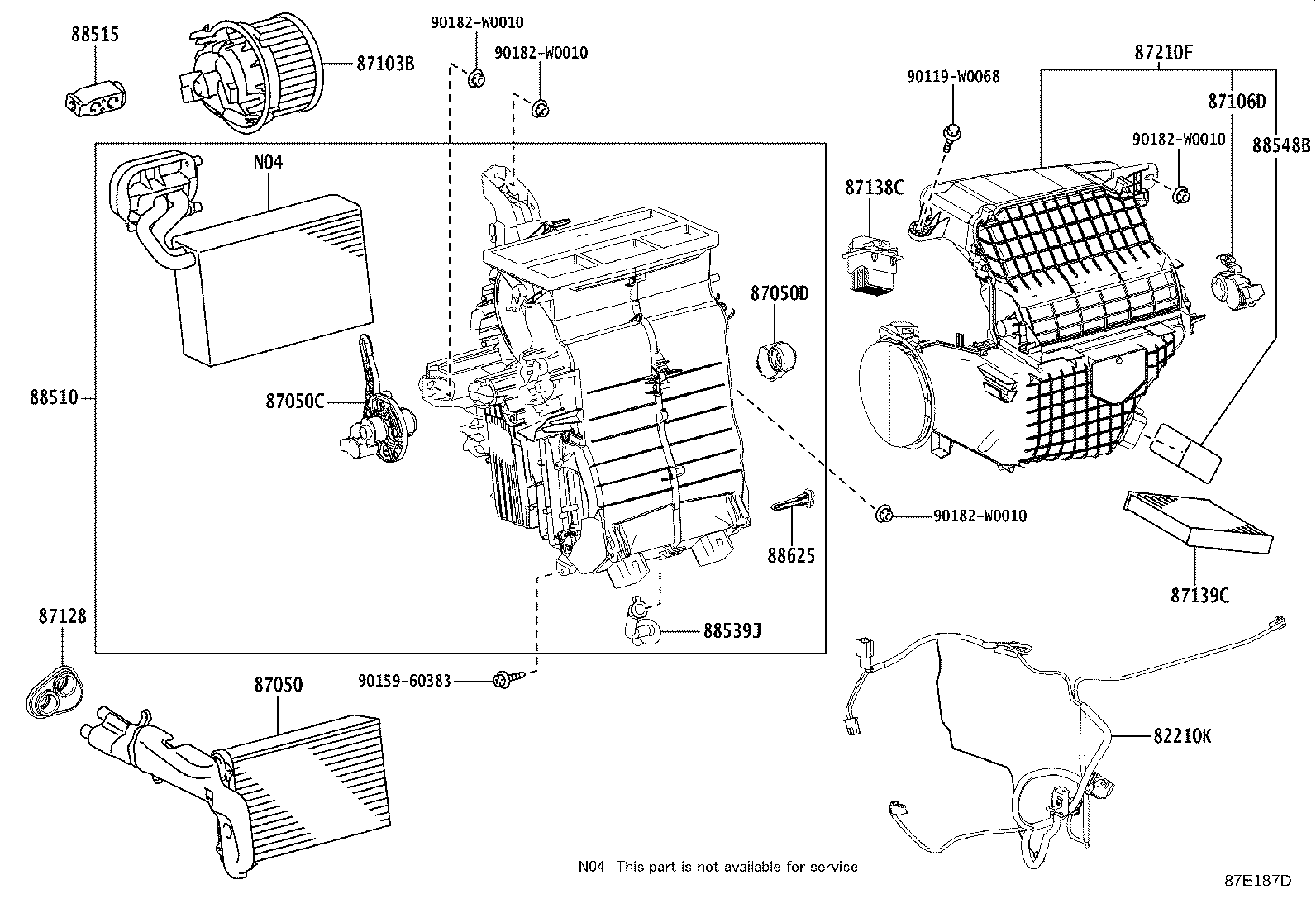

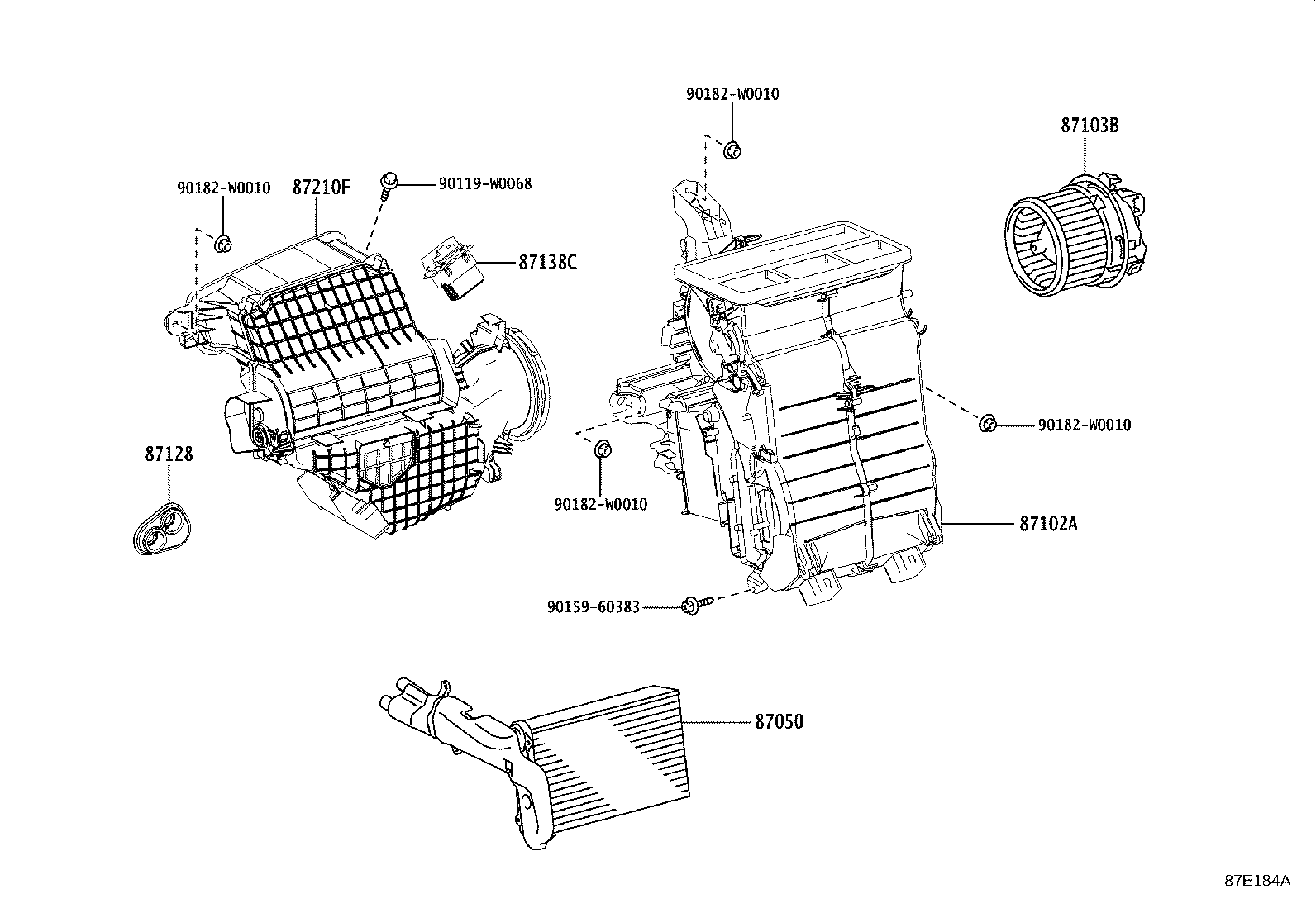

Figure 87E183A 87E183A 2014-05 → — Figure 87E184A 87E184A 2014-05 → — Figure 87E185C 87E185C 2014-05 → — Figure 87E186C 87E186C 2014-05 → — Figure 87E187D 87E187D 2014-05 → — Figure 87E188D 87E188D 2014-05 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050D Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87102A Case Sub-assy, Radiator
87103B Motor Sub-assy, Blower W/Fan
87106D Servo Sub-assy, Damper, NO.1
87128 Grommet, Heater
87138C Resistor, Blower
87139C Filter, Clean Air
87210F Case Assy, Air Damper
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539J Hose, Drain Cooler
88548B Case, Air Filter
88625 Thermistor, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
