Toyota Aygo
2014-05 → present · chassis KGB40,PAB40 · catalogue 101520 · Europe
Supported model
Data version 2018-04
Heating & Air Conditioning - Control & Air Duct
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55900 | Control Assy, Air Conditioner |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909C | Cable Sub-assy, Airmix Damper Control |

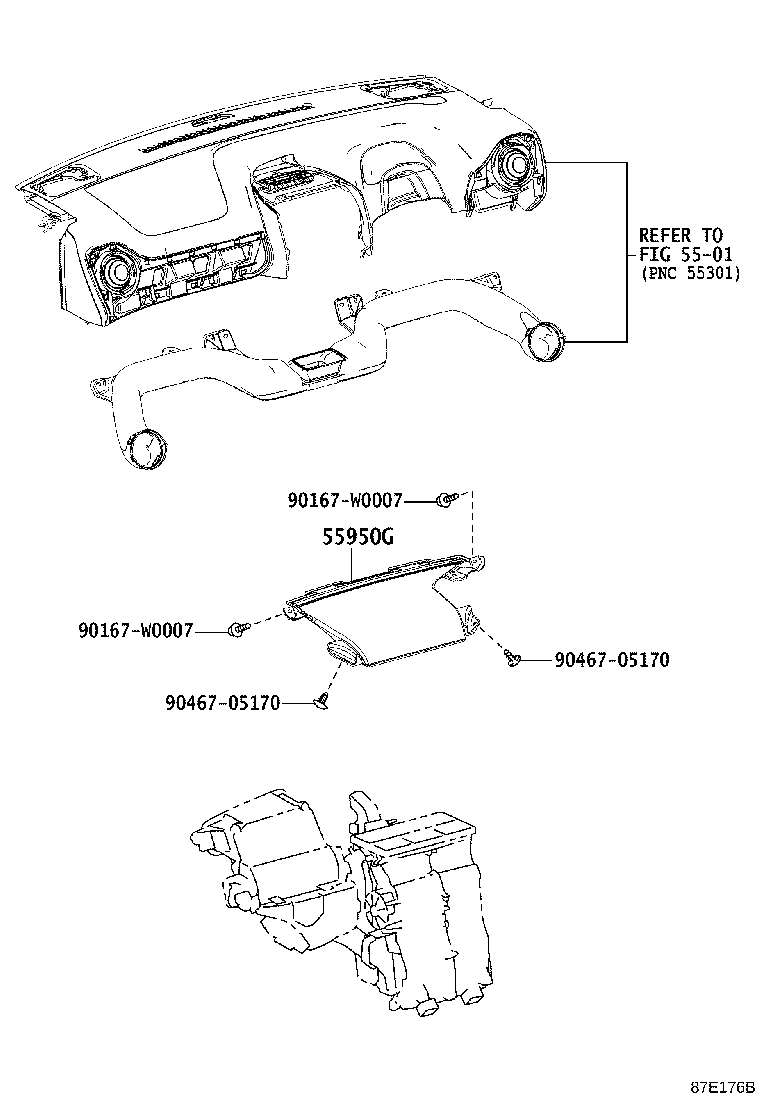

| 55950G | Nozzle Assy, Defroster |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |

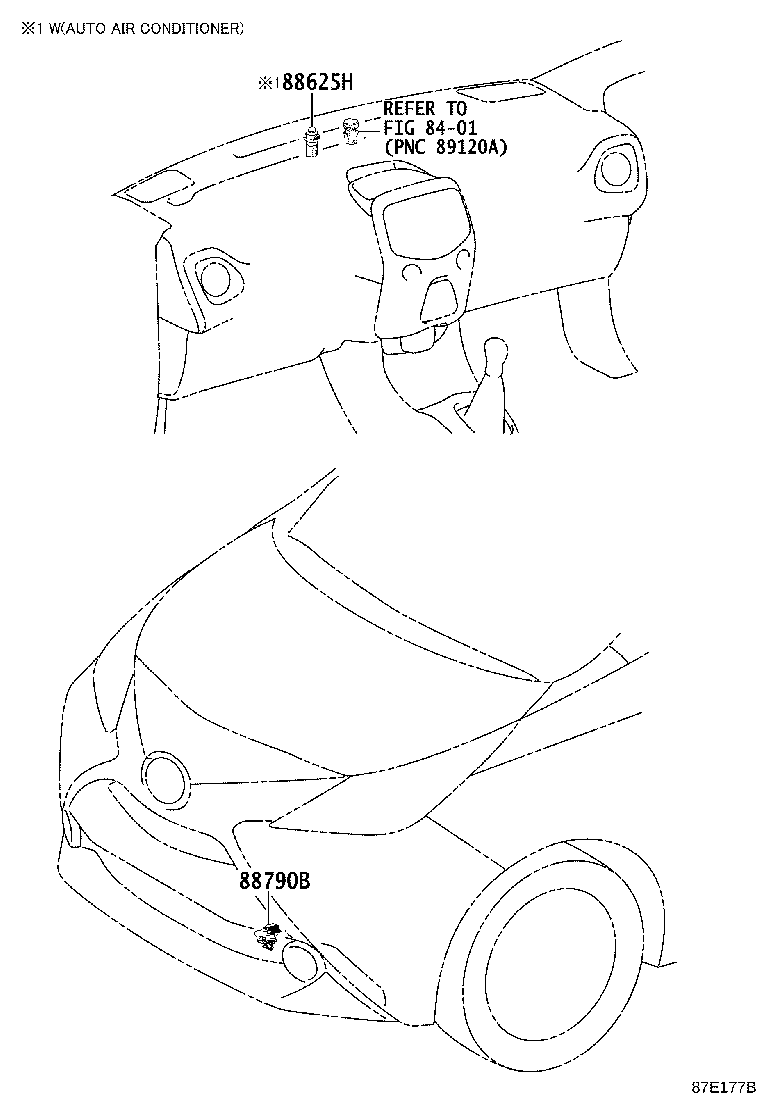

| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88790B | Thermistor Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
