Toyota Aygo X
2022-03 → present · chassis KGB70 · catalogue 101530 · Europe
Supported model
Data version 2022-02

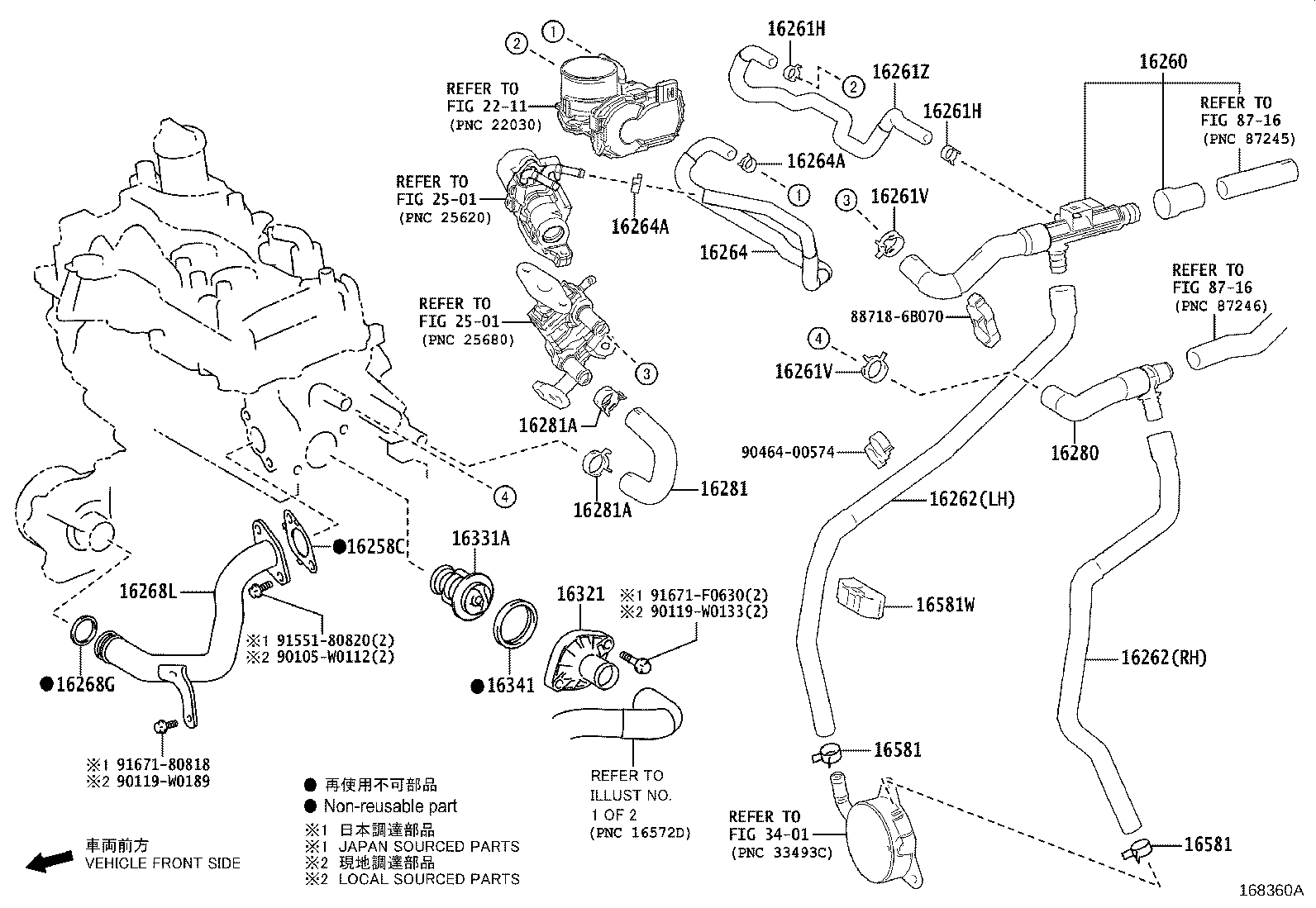

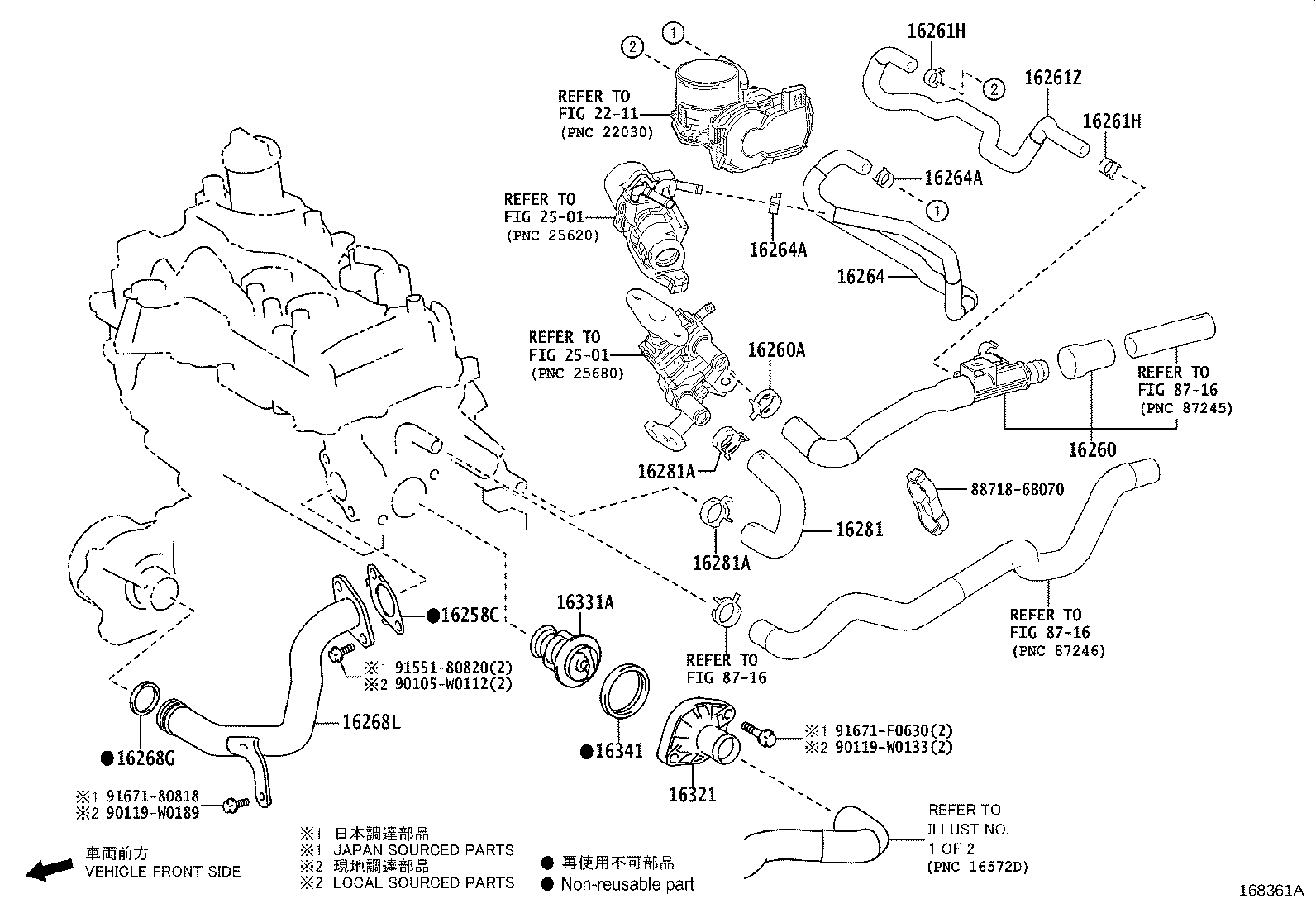

Radiator & Water Outlet
30 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16258C | Gasket(FOR WATER BY-PASS PIPE) |
| 16260 | Hose Assy, Water By-pass |
| 16260A | Clip(FOR WATER BY-PASS HOSE ASSY) |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261V | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261Z | Hose, Water By-pass, NO.1 |
| 16262 | Hose, Water Inlet |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16268G | Gasket(FOR WATER BY-PASS PIPE) |
| 16268L | Pipe, Water By-pass |
| 16280 | Hose Assy, Water By-pass, NO.2 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16321 | Inlet, Water |
| 16331A | Thermostat |
| 16341 | Gasket, Water Outlet |
| 16360A | Fan Assy, W/Motor |
| 16401 | Cap Sub-assy, Radiator |
| 16410 | Radiator Assy, W/O Cap |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16523A | Cushion, Radiator Support |
| 16535 | Support, Radiator, Lower |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16581 | Clamp, Hose(FOR WATER HOSE) |
| 16581W | Clamp, Hose(FOR WATER HOSE) |
| 16711 | Shroud, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
