Toyota Aygo X

2022-03 → present · chassis KGB70 · catalogue 101530 · Europe

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

6 part groups · 2 illustrations

Illustrations

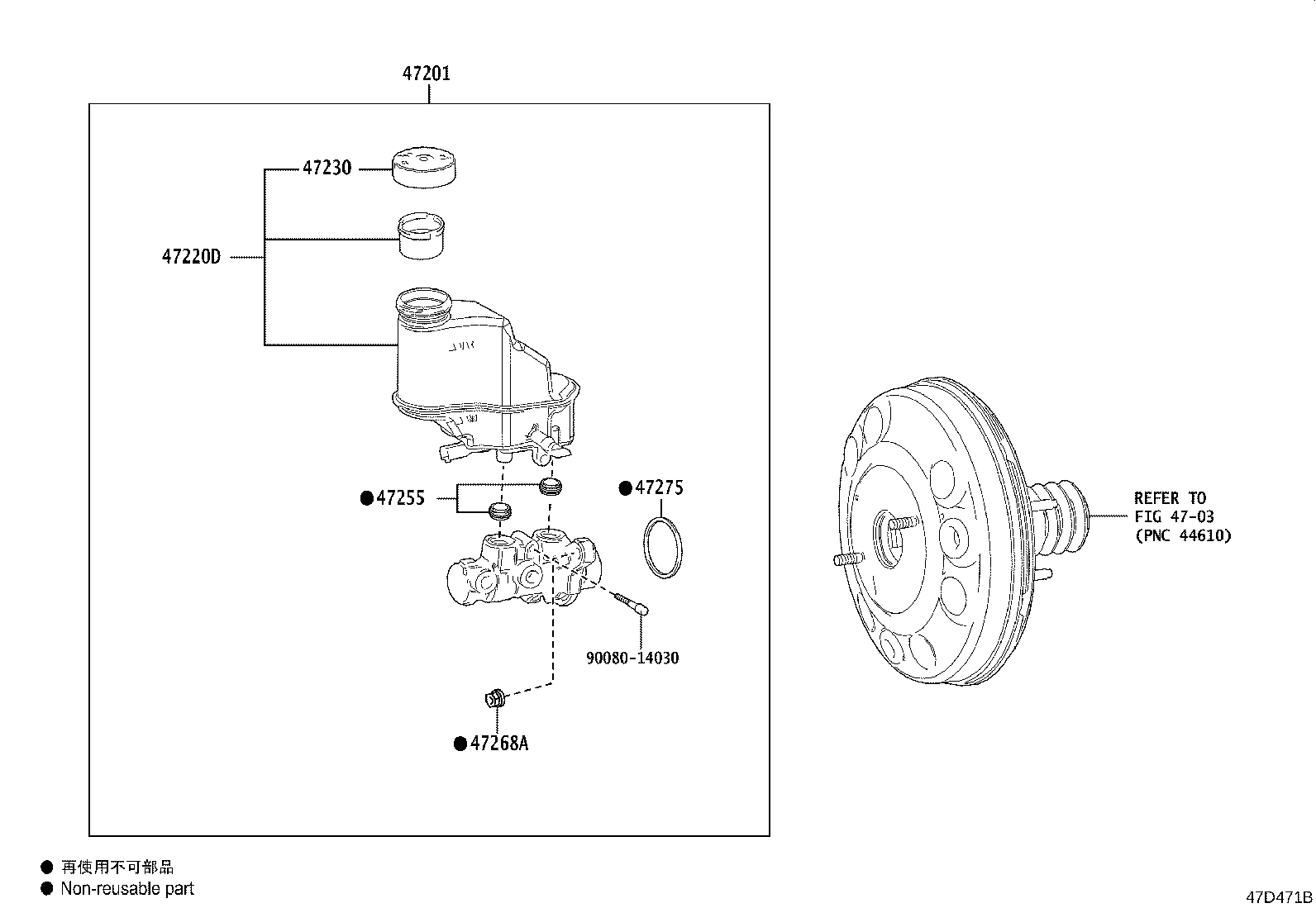

Figure 47D470B 47D470B 2022-03 → — Figure 47D471B 47D471B 2022-03 → —

Part groups

PNCDescription
47201 Cylinder Sub-assy, Brake Master
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 Grommet, Master Cylinder Reservoir
47268A Nut, Brake Master Cylinder
47275 Gasket, Brake Master Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
