Toyota Aygo X

2022-03 → present · chassis KGB70 · catalogue 101530 · Europe

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

22 part groups · 2 illustrations

Illustrations

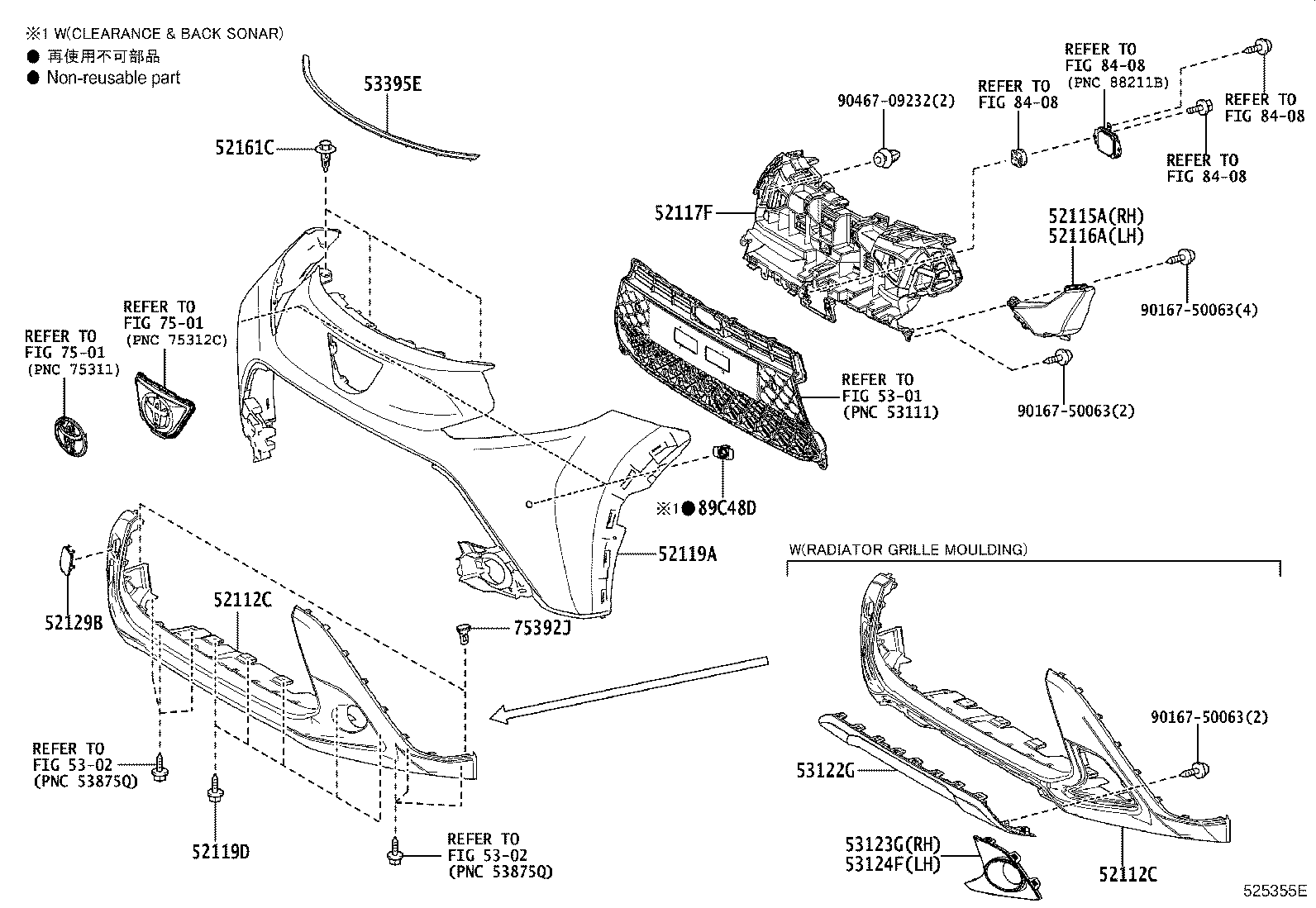

Figure 525354A 525354A 2022-03 → — Figure 525355E 525355E 2022-03 → —

Part groups

PNCDescription
51451F Grommet, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52112C Extension, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52117F Support, Front Bumper, Upper
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52119D Screw, NO.1
52129B Cover, Front Bumper, Lower
52161C Piece, Front Bumper
52161T Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
53122G Moulding, Radiator Grille, Lower Center
53123G Moulding, Radiator Grille Side, RH
53124F Moulding, Radiator Grille Side, LH
53395E Seal, Hood TO Front End Panel
75392J Retainer, Outside Moulding
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
