Toyota Aygo X

2022-03 → present · chassis KGB70 · catalogue 101530 · Europe

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

16 part groups · 2 illustrations

Illustrations

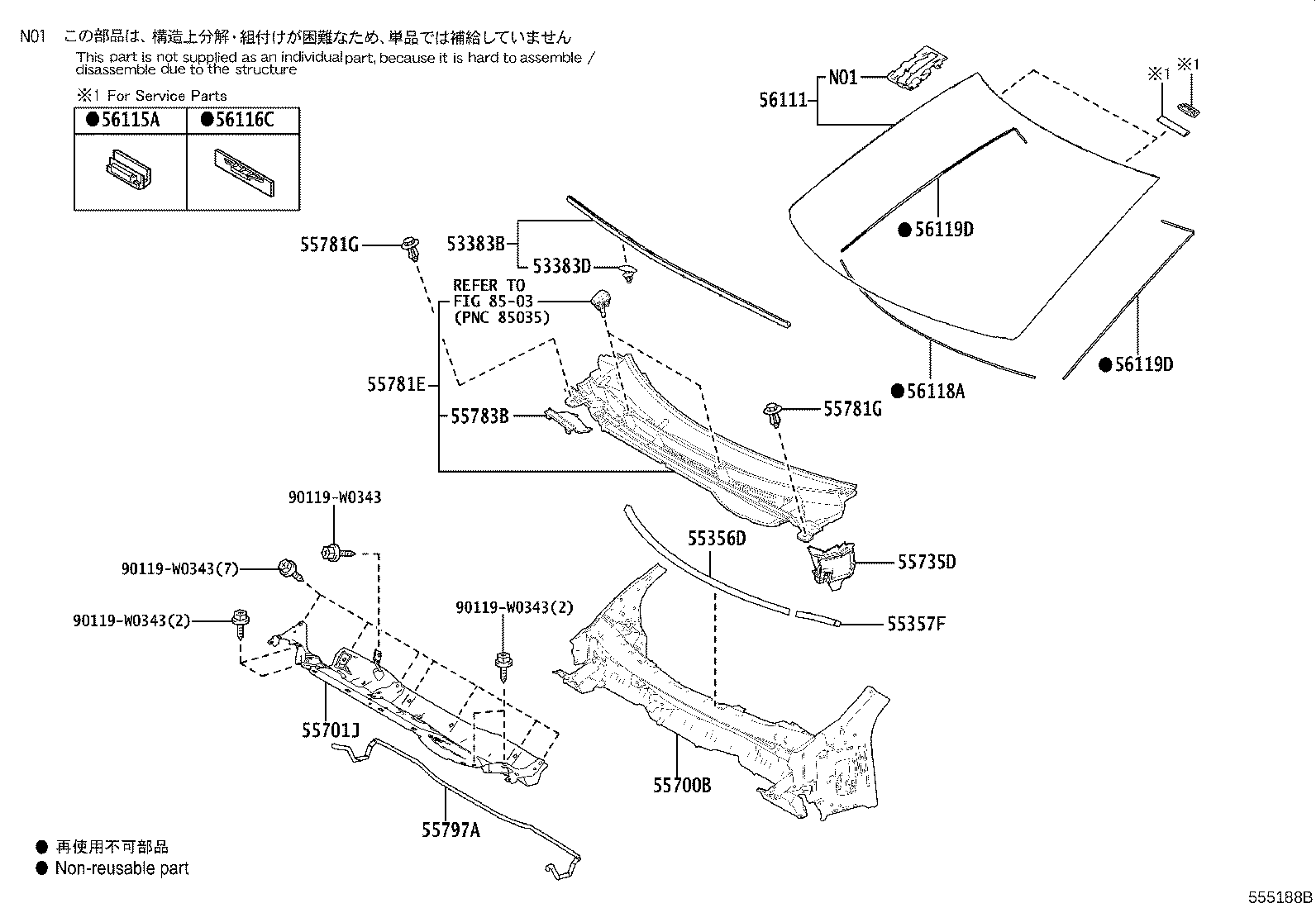

Figure 555187B 555187B 2022-03 → — Figure 555188B 555188B 2022-03 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
53383D Clip(FOR HOOD TO COWL TOP SEAL)
55356D Cushion, Instrument Panel, NO.2
55357F Cushion, Instrument Panel, NO.3
55700B Cowl Assy
55701J Panel Sub-assy, Cowl Top, Outer
55735D Seal, Front Air Shutter, RH
55781E Louver Sub-assy, Cowl Top Ventilator
55781G Clip, Cowl Top Ventilator Louver
55783B Louver, Cowl Top Ventilator, Center NO.1
55797A Seal, Cowl Water Extract
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56118A Dam, Window Glass Adhesive, NO.2
56119D Dam, Window Glass Adhesive, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
