Toyota Aygo X

2022-03 → present · chassis KGB70 · catalogue 101530 · Europe

Supported model Data version 2022-02

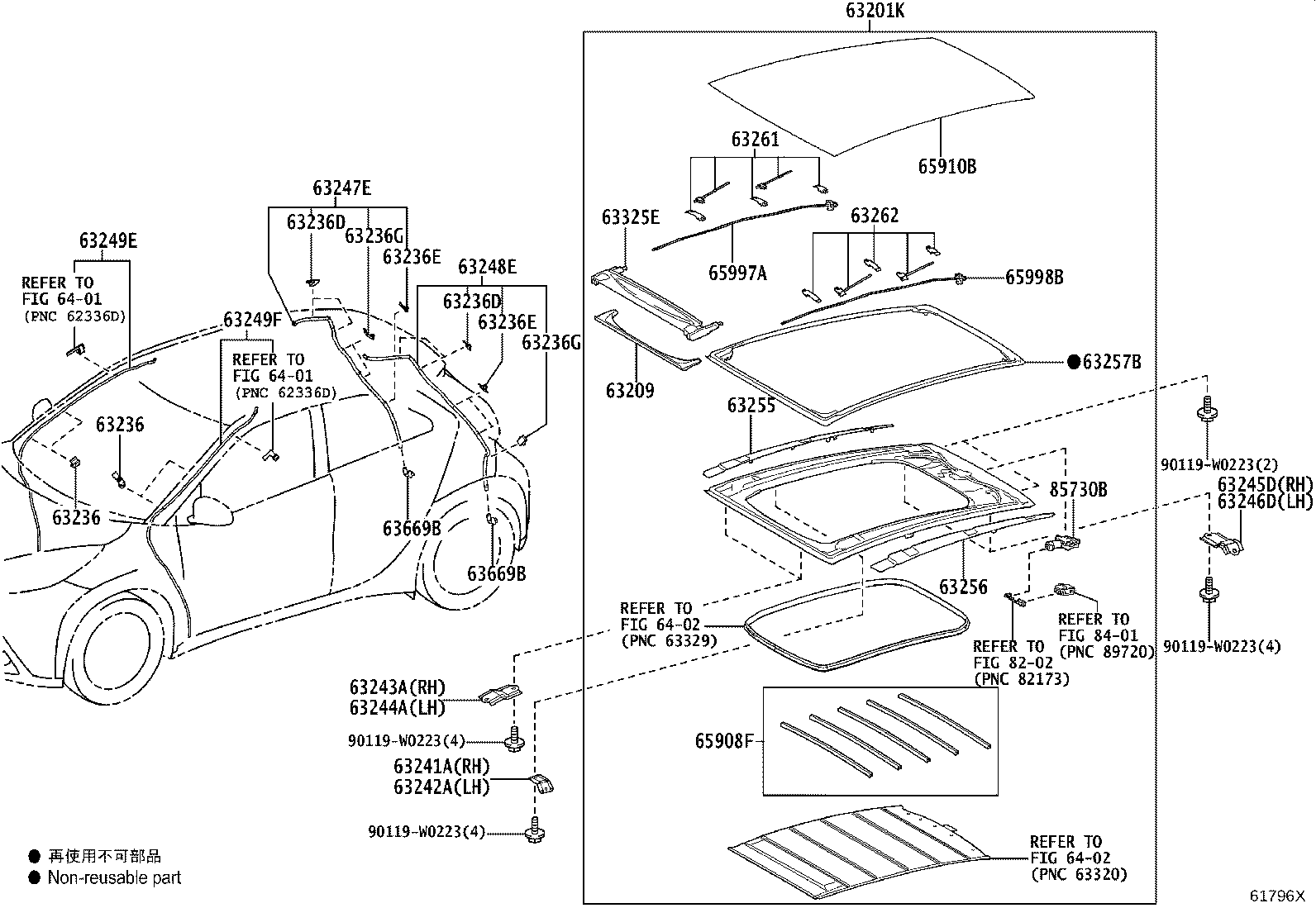

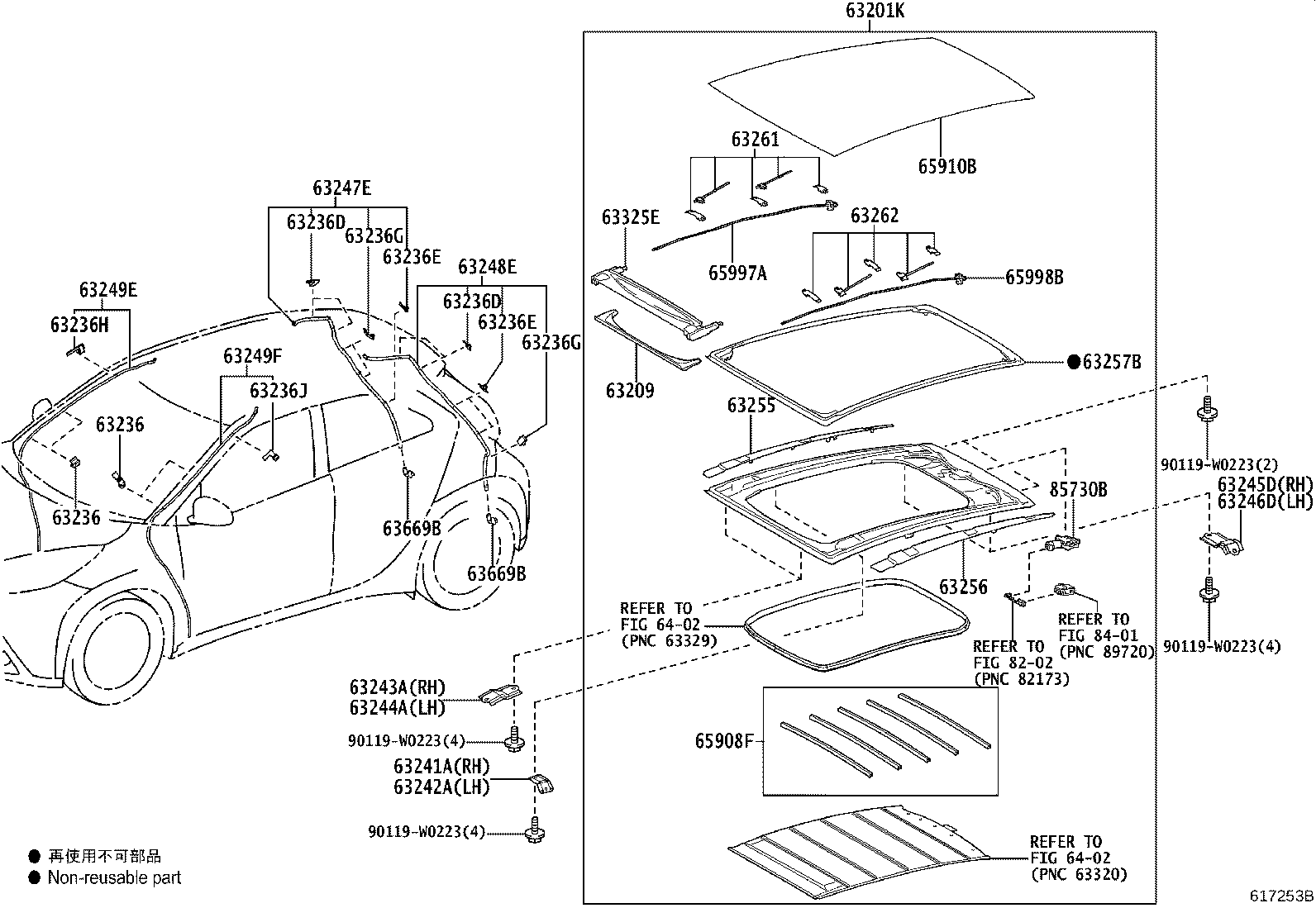

Roof Panel & Back Window Glass

39 part groups · 3 illustrations

PNC	Description
63102A	Panel Sub-assy, Windshield Header
63103C	Reinforcement Sub-assy, Roof Panel
63105D	Frame Sub-assy, Back Window, Upper
63111	Panel, Roof
63131	Panel, Windshield Header, Outer
63147F	Bracket, Roof Panel Reinforcement, RH
63148E	Bracket, Roof Panel Reinforcement, LH
63177B	Retainer, Back Door Hinge Female, RH
63178C	Retainer, Back Door Hinge Female, LH
63201K	Canvas Sub-assy, Sliding Roof
63209	Panel Sub-assy, Roof Wind Deflector
63236	Clamp, Sliding Roof OR Removable Roof Drain Hose
63236D	Clamp, Sliding Roof Drain Hose
63236E	Clamp, Sliding Roof Drain Hose
63236G	Clamp, Sliding Roof Drain Hose
63236H	Clamp, Sliding Roof Drain Hose
63236J	Clamp, Sliding Roof Drain Hose
63241A	Bracket, Sliding Roof Housing Front Mounting, RH
63242A	Bracket, Sliding Roof Housing Front Mounting, LH
63243A	Bracket, Removable Roof Housing Front Mounting, RH
63244A	Bracket, Removable Roof Housing Front Mounting, LH
63245D	Bracket, Sliding Roof Housing Rear Mounting, RH
63246D	Bracket, Sliding Roof Housing Rear Mounting, LH
63247E	Hose, Sliding Roof Drain, Rear RH
63248E	Hose, Sliding Roof Drain, Rear LH
63249E	Hose, Sliding Roof Drain
63249F	Hose, Sliding Roof Drain
63255	Cover, Sliding Roof Guide Rail, RH
63256	Cover, Sliding Roof Guide Rail, LH
63257B	Seal, Sliding Roof
63261	Shoe, Sliding Roof, Front
63262	Shoe, Sliding Roof, Front LH
63325E	Plate, Roof Headlining Set
63669B	Grommet, Sliding Roof Drain
65908F	Bow Set, Tarpaulin
65910B	Tarpaulin Assy
65997A	Cable, Tarpaulin Rail, RH
65998B	Cable, Tarpaulin Rail, LH
85730B	Motor Assy, Slide Roof

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
