Toyota Aygo X
2022-03 → present · chassis KGB70 · catalogue 101530 · Europe
Supported model
Data version 2022-02

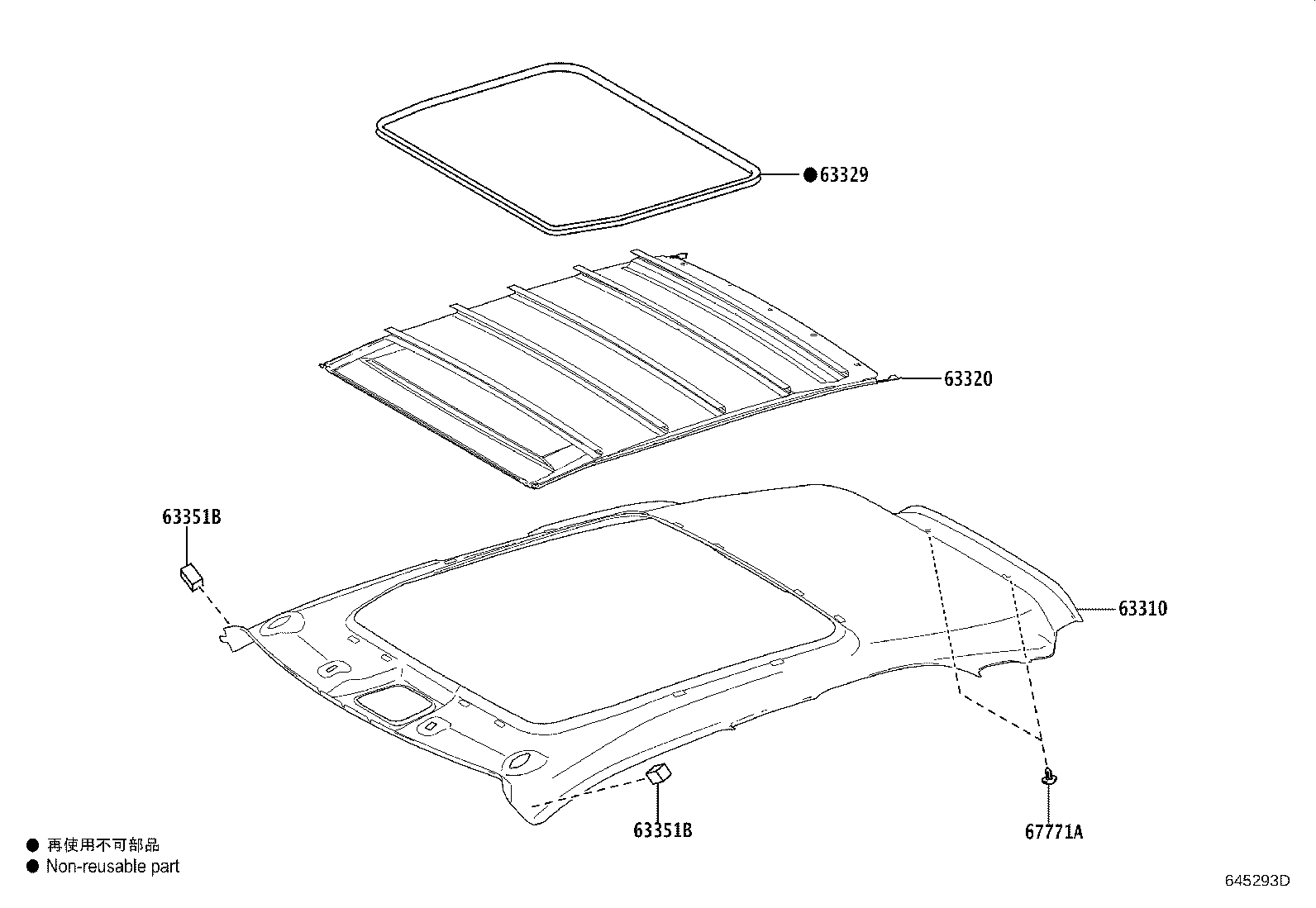

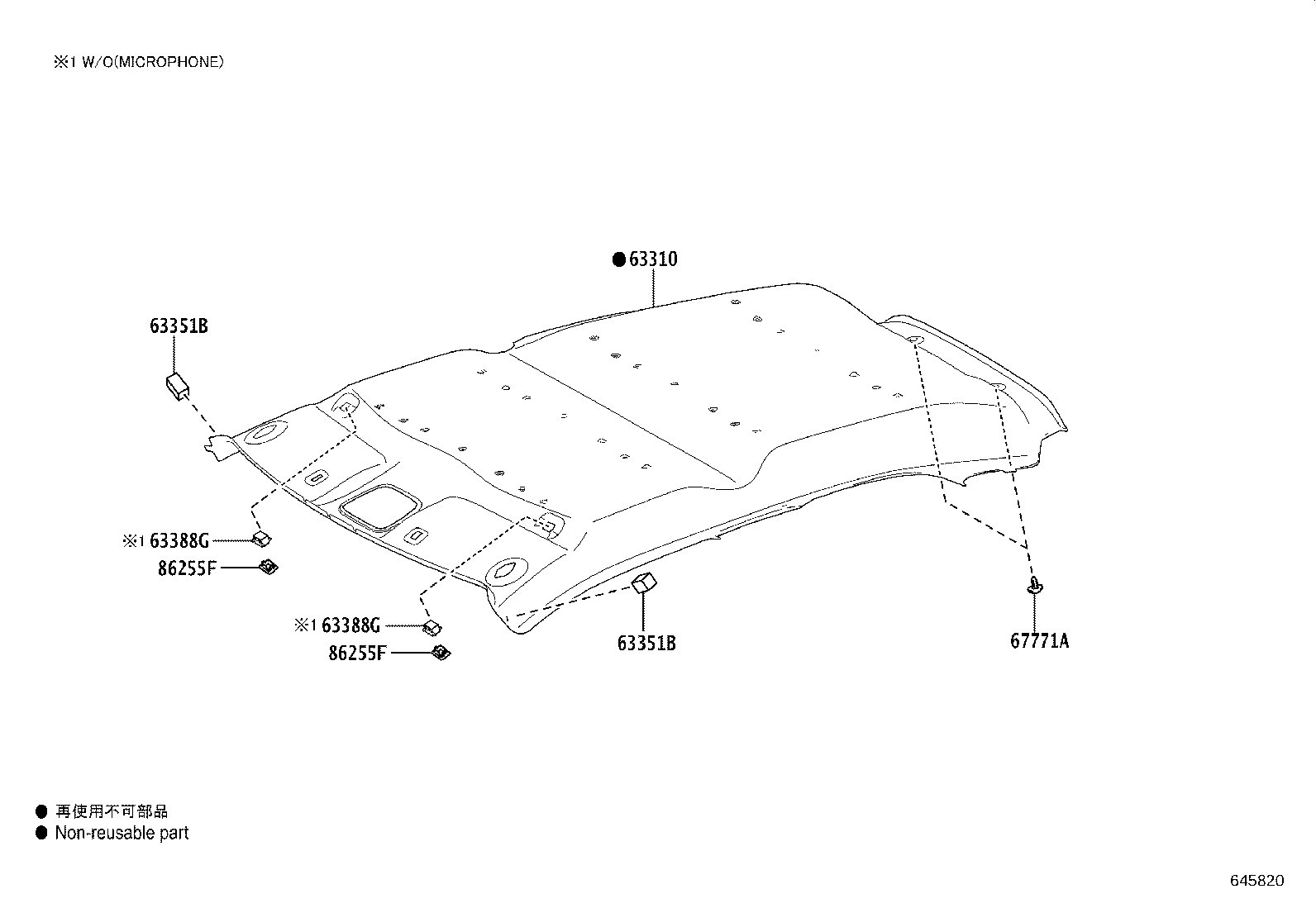

Roof Headlining & Silencer Pad
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63310 | Headlining Assy, Roof |
| 63320 | Headlining Assy, Sun Roof OR Removable Roof |
| 63329 | Moulding, Sun Roof Opening Trim, NO.2 |
| 63351B | Pad, Roof Headlining |
| 63388G | Cover, Roof Headlining Holder, NO.2 |
| 67771A | Retainer, Roof Headlining |
| 86255F | Case, Microphone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
