Toyota Aygo X
2022-03 → present · chassis KGB70 · catalogue 101530 · Europe
Supported model
Data version 2022-02

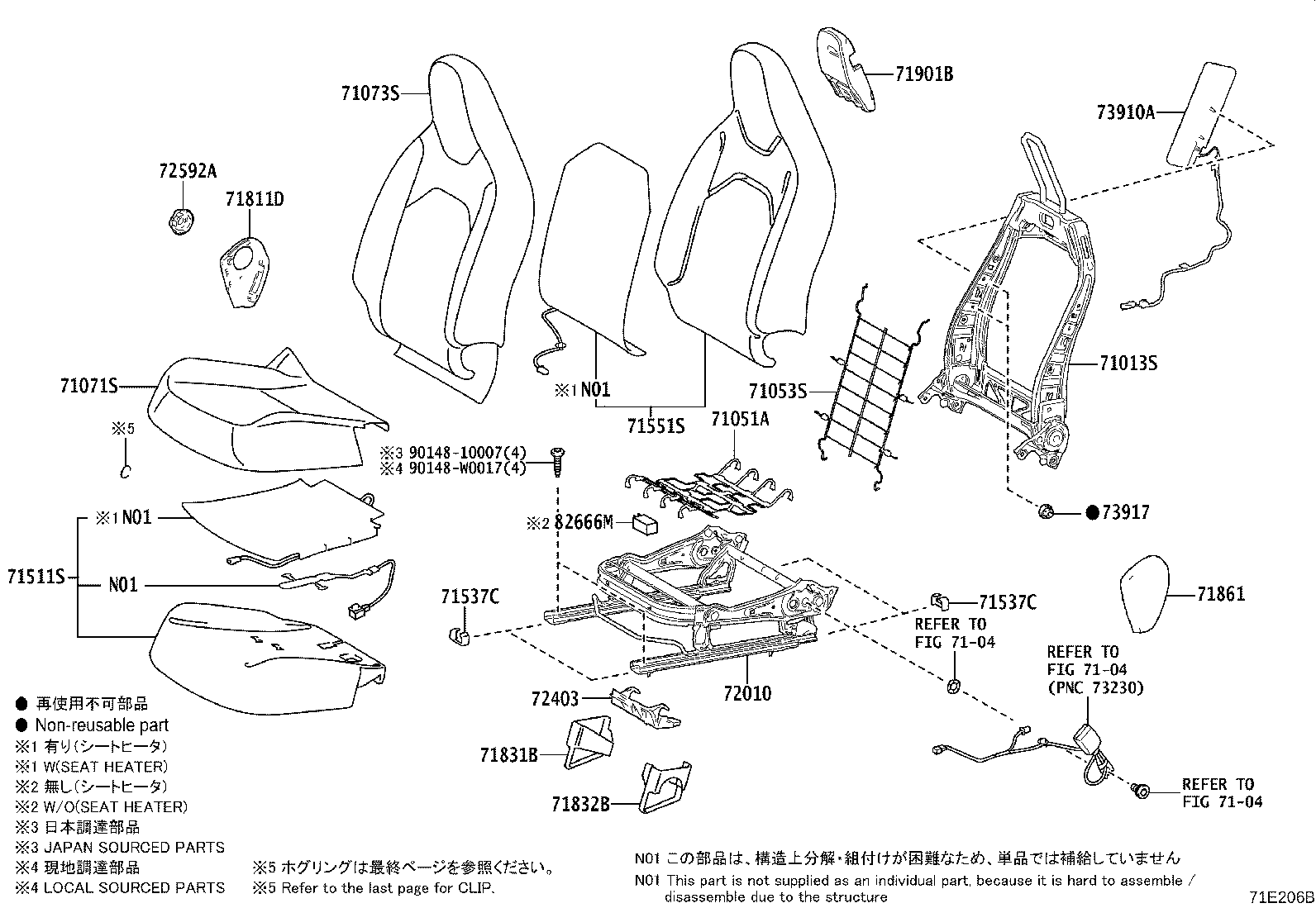

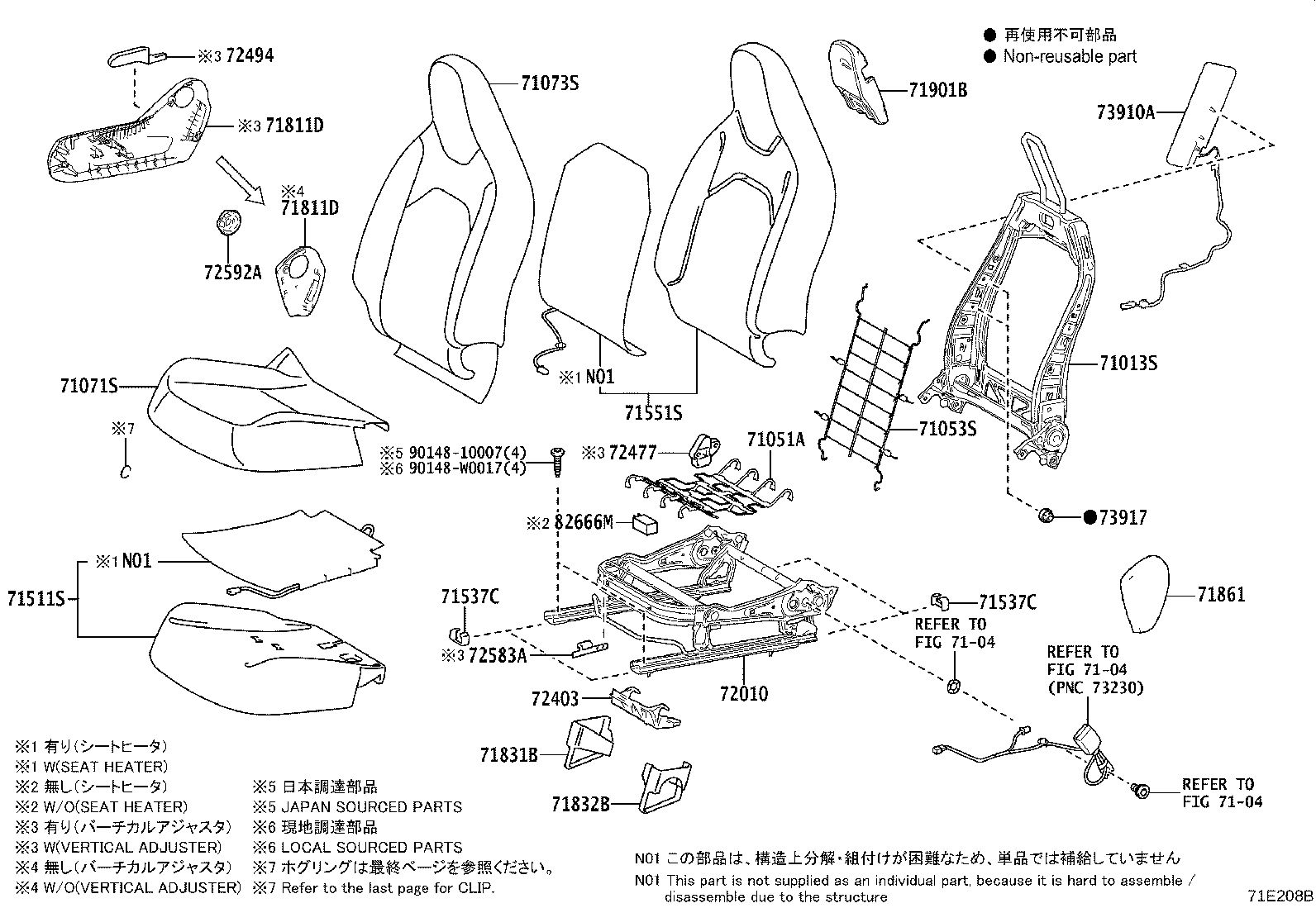

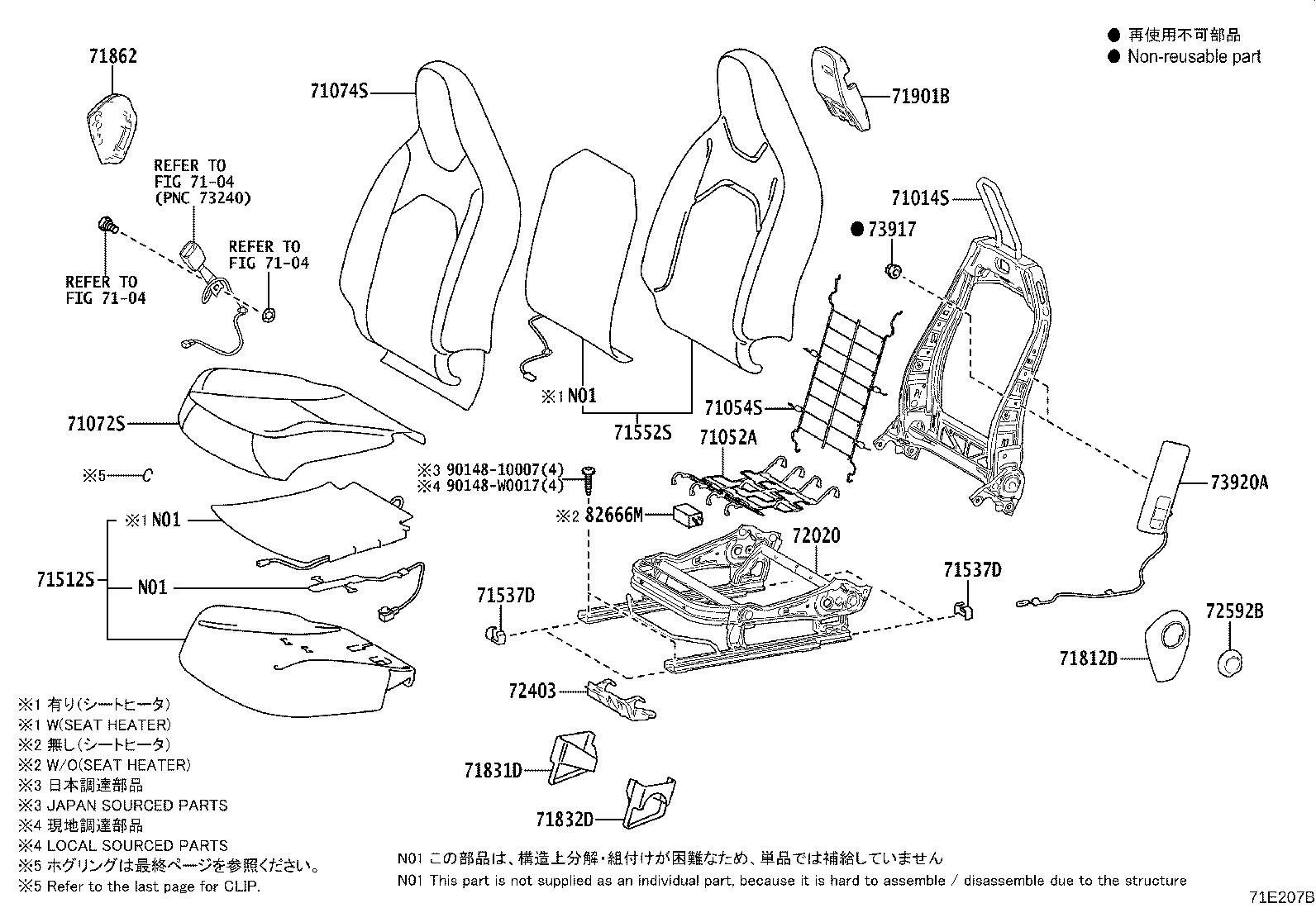

Front Seat & Seat Track
39 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71051A | Spring Sub-assy, Front Seat Cushion, RH |
| 71052A | Spring Sub-assy, Front Seat Cushion, LH |
| 71053S | Spring Sub-assy, Front Seatback, RH |
| 71054S | Spring Sub-assy, Front Seatback, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537C | Protector, Front Seat Cushion Edge, RH |
| 71537D | Protector, Front Seat Cushion Edge, LH |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71831B | Cover, Front Seat Hinge, RH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71832B | Cover, Front Seat Hinge, LH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71901B | Insert Sub-assy, Front Seat Headrest |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72403 | Bracket Sub-assy, Seat Frame Set |
| 72477 | Spacer, Vertical Adjuster |
| 72494 | Handle, Vertical Adjusting, RH |
| 72495 | Handle, Vertical Adjusting, LH |
| 72583A | Bracket, Seat Side Garnish, RH |
| 72584A | Bracket, Seat Side Garnish, LH |
| 72592A | Knob,Reclining Adjuster, RH |
| 72592B | Knob,Reclining Adjuster, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73917 | Hook, Seat Airbag |
| 73920A | Airbag Assy, Front Seat, LH |
| 82666M | Holder, Connector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
