Toyota Aygo X

2022-03 → present · chassis KGB70 · catalogue 101530 · Europe

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

8 part groups · 3 illustrations

Illustrations

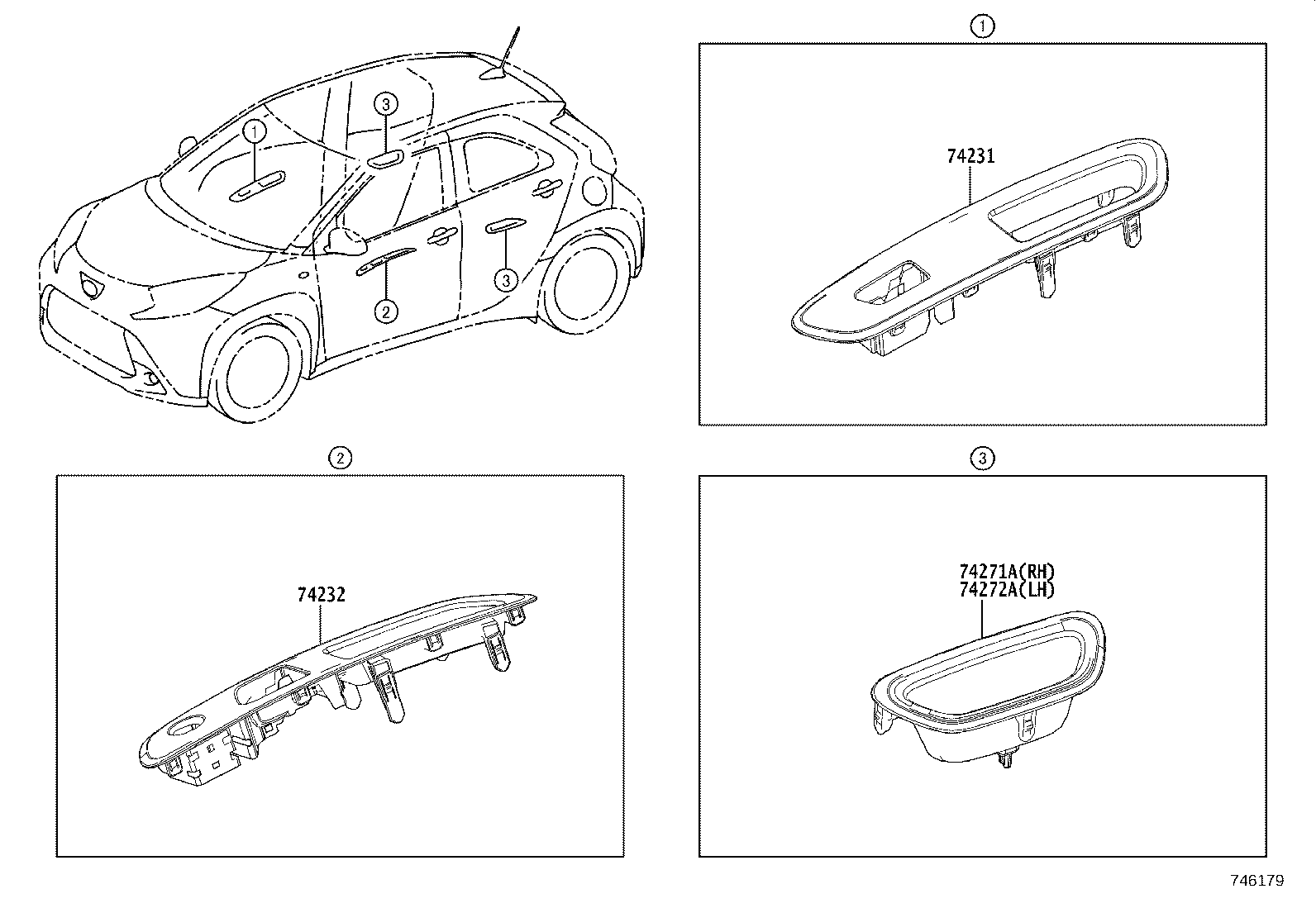

Figure 746178 746178 2022-03 → — Figure 746179 746179 2022-03 → — Figure 746180 746180 2022-03 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348B Holder, Visor, RH
74348C Holder, Visor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
