Toyota Aygo X
2022-03 → present · chassis KGB70 · catalogue 101530 · Europe
Supported model
Data version 2022-02

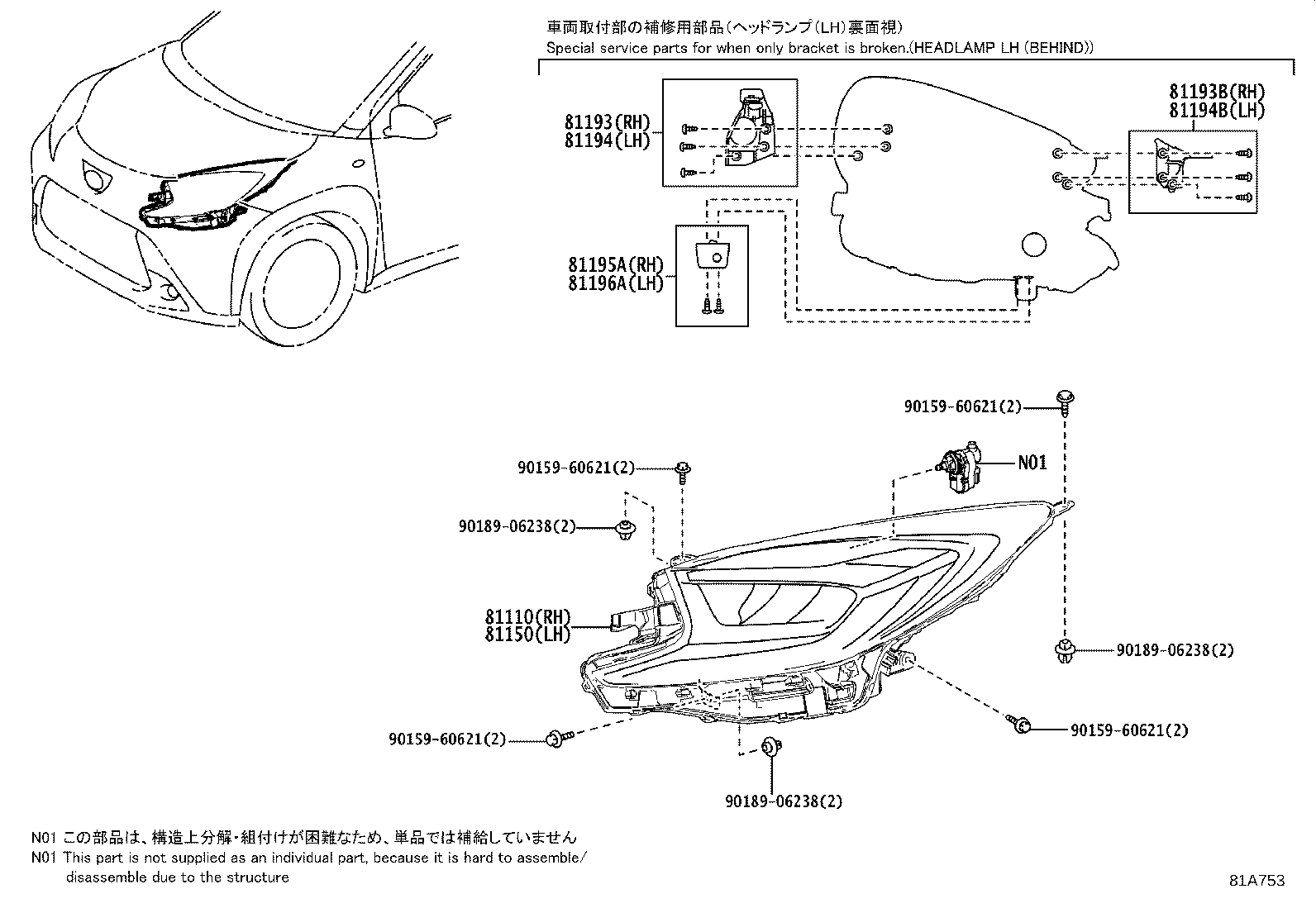

Headlamp
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81135 | Unit Assy, Headlamp, RH |
| 81144 | Cover, Headlamp, NO.1 |
| 81145 | Cover, Headlamp, NO.2 |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 8158AJ | Led, Daytime Running Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
