Toyota Aygo X

2022-03 → present · chassis KGB70 · catalogue 101530 · Europe

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

14 part groups · 2 illustrations

Illustrations

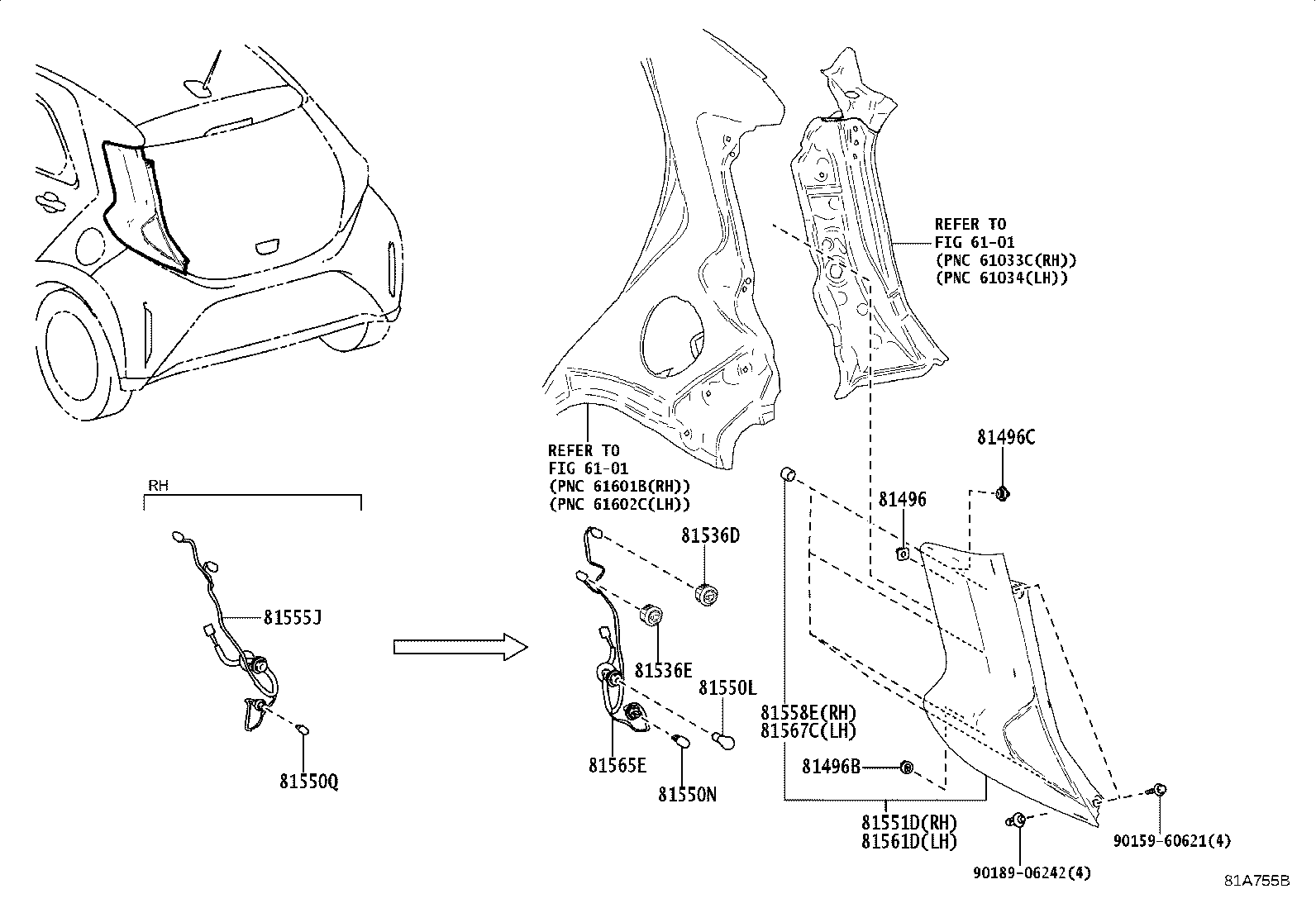

Figure 81A754B 81A754B 2022-03 → — Figure 81A755B 81A755B 2022-03 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81496B Guide, Rear Lamp
81496C Guide, Rear Combination Lamp, NO.2
81536D Led, Taillamp
81536E Led, Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550Q Bulb, Rear Fog Lamp, NO.1
81551D Lens & Body, Rear Combination Lamp, RH
81555J Socket & Wire, Rear Combination Lamp, RH
81558E Cover, Rear Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
81565E Socket & Wire, Rear Combination Lamp, LH
81567C Cover, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
