Toyota Aygo X
2022-03 → present · chassis KGB70 · catalogue 101530 · Europe
Supported model
Data version 2022-02

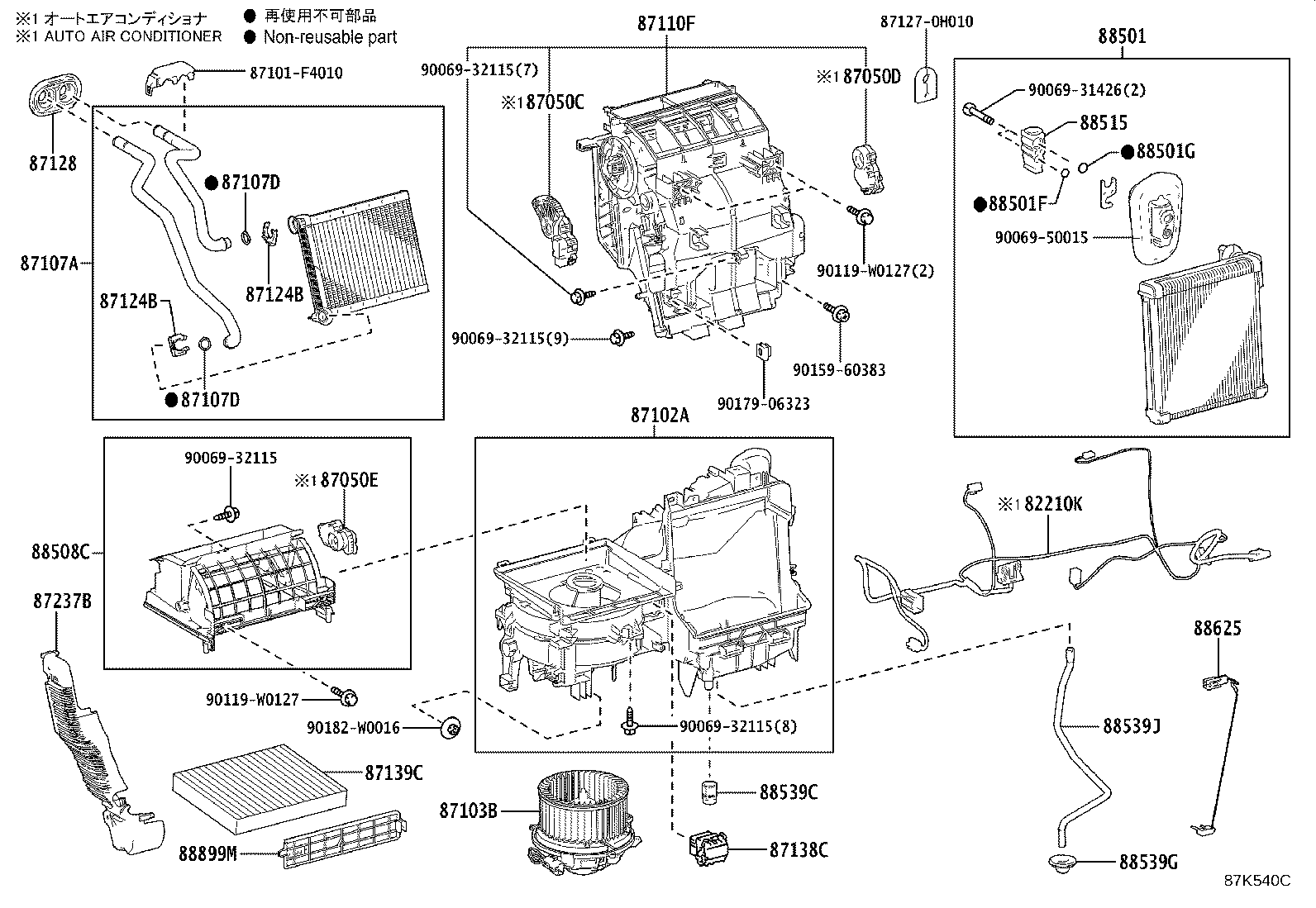

Heating & Air Conditioning - Cooler Unit
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82210K | Harness Assy, Air Conditioner |
| 87050C | Damper Servo Sub-assy, Air Conditioner Radiator, NO.1 |
| 87050D | Damper Servo Sub-assy, Air Conditioner Radiator, NO.2 |
| 87050E | Damper Servo Sub-assy, Air Conditioner Radiator, NO.3 |
| 87102A | Case Sub-assy, Radiator |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87107D | Ring, O (FOR HEATER RADIATOR UNIT) |
| 87110F | Heater Assy |
| 87124B | Clamp, Heater |
| 87128 | Grommet, Heater |
| 87138C | Resistor, Blower |
| 87139C | Filter, Clean Air |
| 87237B | Cover, Heater Piping |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501F | O-ring, Cooler Evaporator NO.1(DISCHARGE) |
| 88501G | O-ring, Cooler Evaporator NO.1(SUCTION) |
| 88508C | Filter Sub-assy, Air |
| 88515 | Valve, Cooler Expansion |
| 88539C | Hose, Cooler Unit Drain, NO.2 |
| 88539G | Grommet (FOR COOLER UNIT DRAIN HOSE) |
| 88539J | Hose, Drain Cooler |
| 88625 | Thermistor, Cooler, NO.1 |
| 88899M | Plate, Cover(FOR AIR FILTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
