Toyota Aygo X
2022-03 → present · chassis KGB70 · catalogue 101530 · Europe
Supported model
Data version 2022-02
Heating & Air Conditioning - Control & Air Duct
23 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

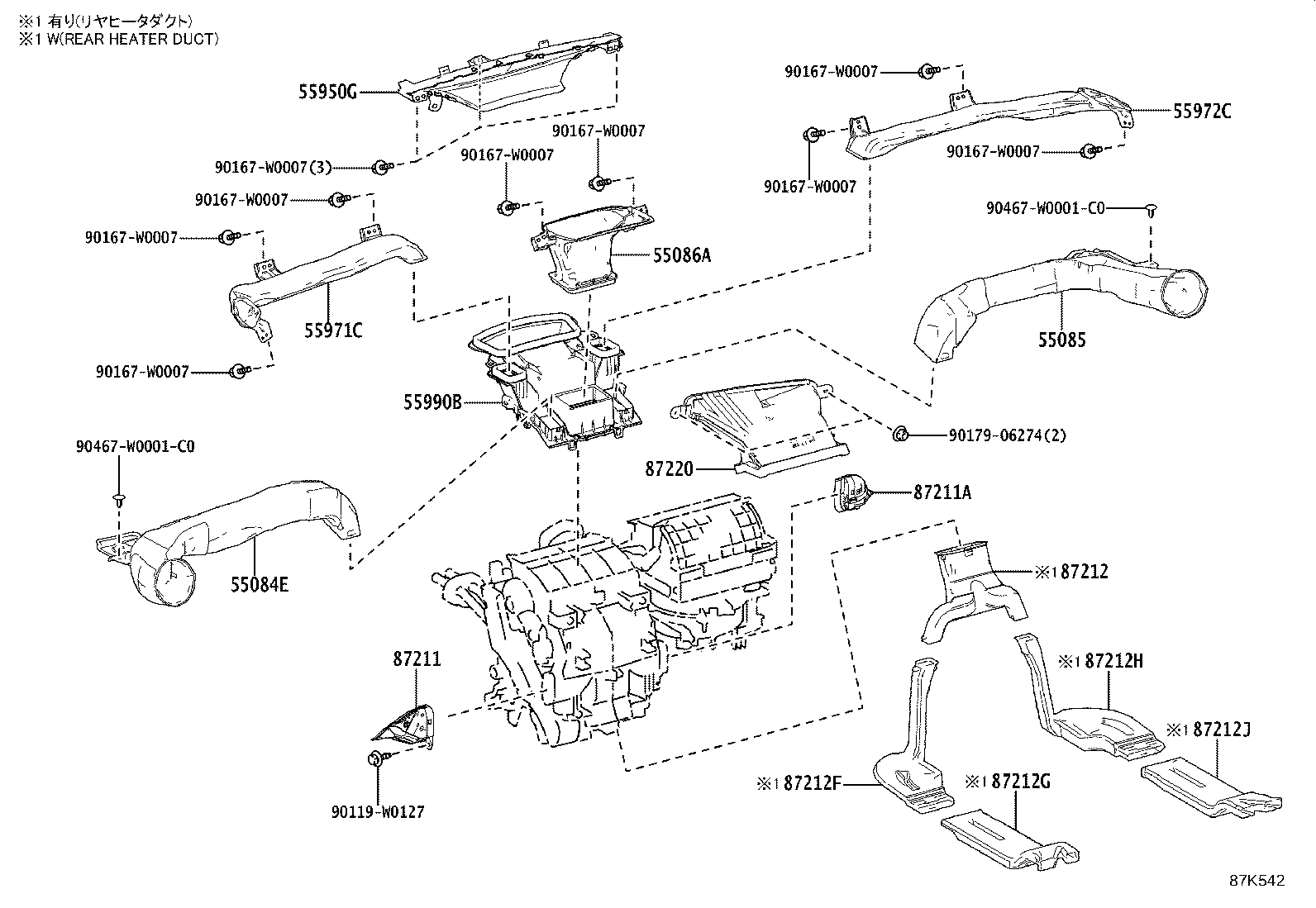

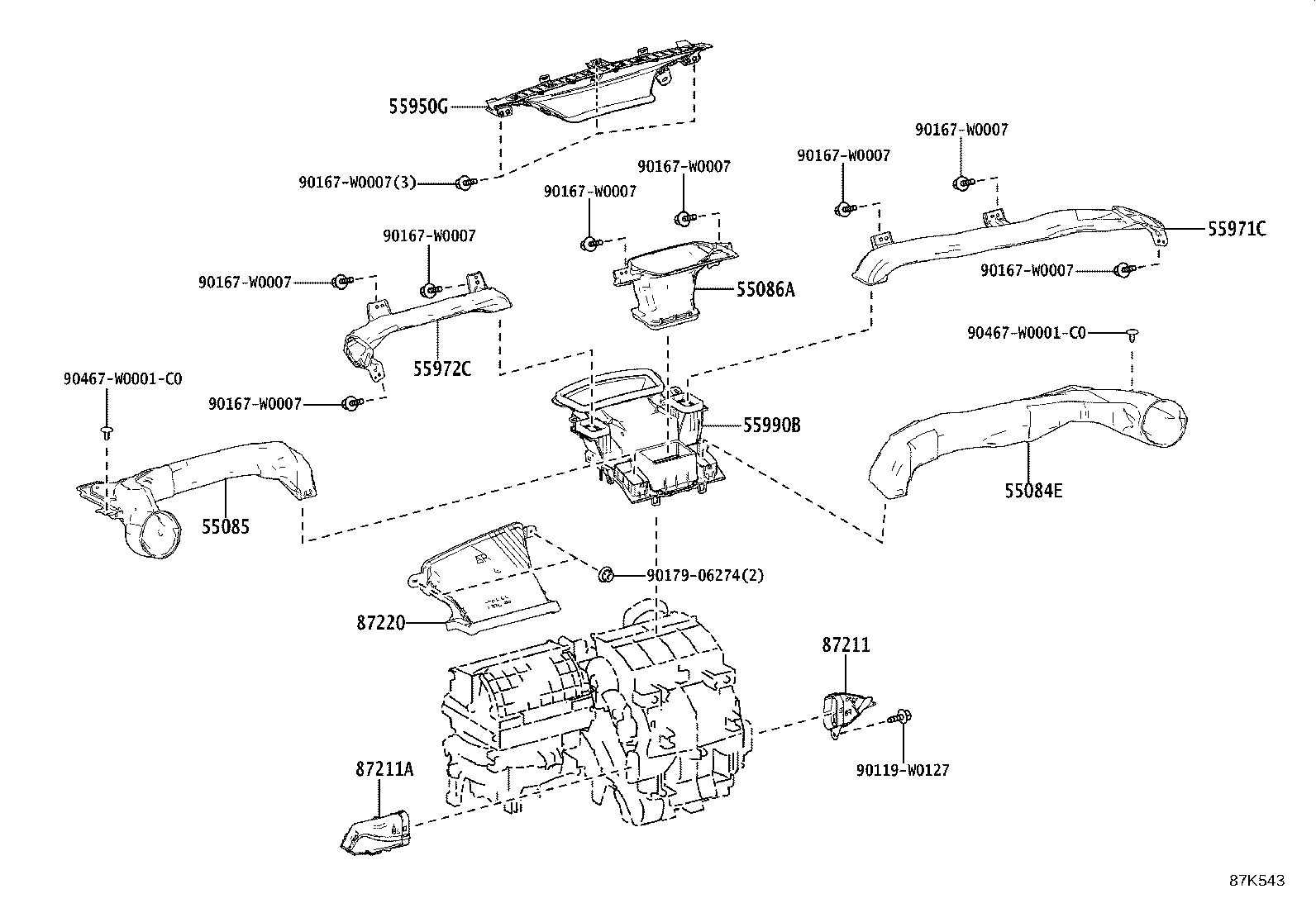

| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55085 | Duct Sub-assy, Heater TO Register, NO.2 |
| 55086A | Duct Sub-assy, Heater TO Register, Center |

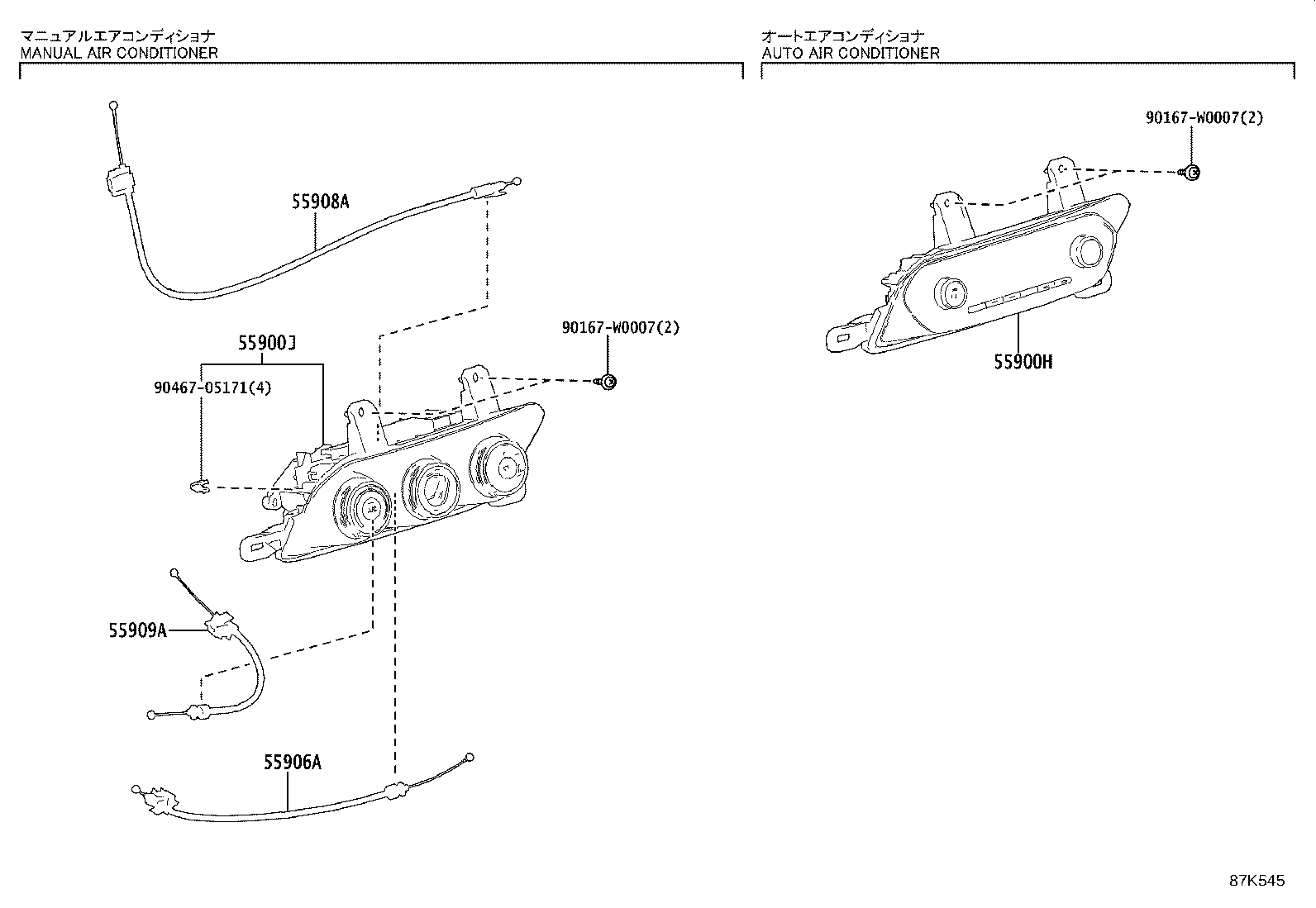

| 55900H | Control Assy, Air Conditioner(AUTO) |
| 55900J | Control Assy, Air Conditioner(MANUAL) |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 55990B | Nozzle Assy, Defroster, Lower |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87212H | Duct, Air, Rear NO.4 |
| 87212J | Duct, Air, Rear NO.5 |
| 87220 | Duct Assy, Air |

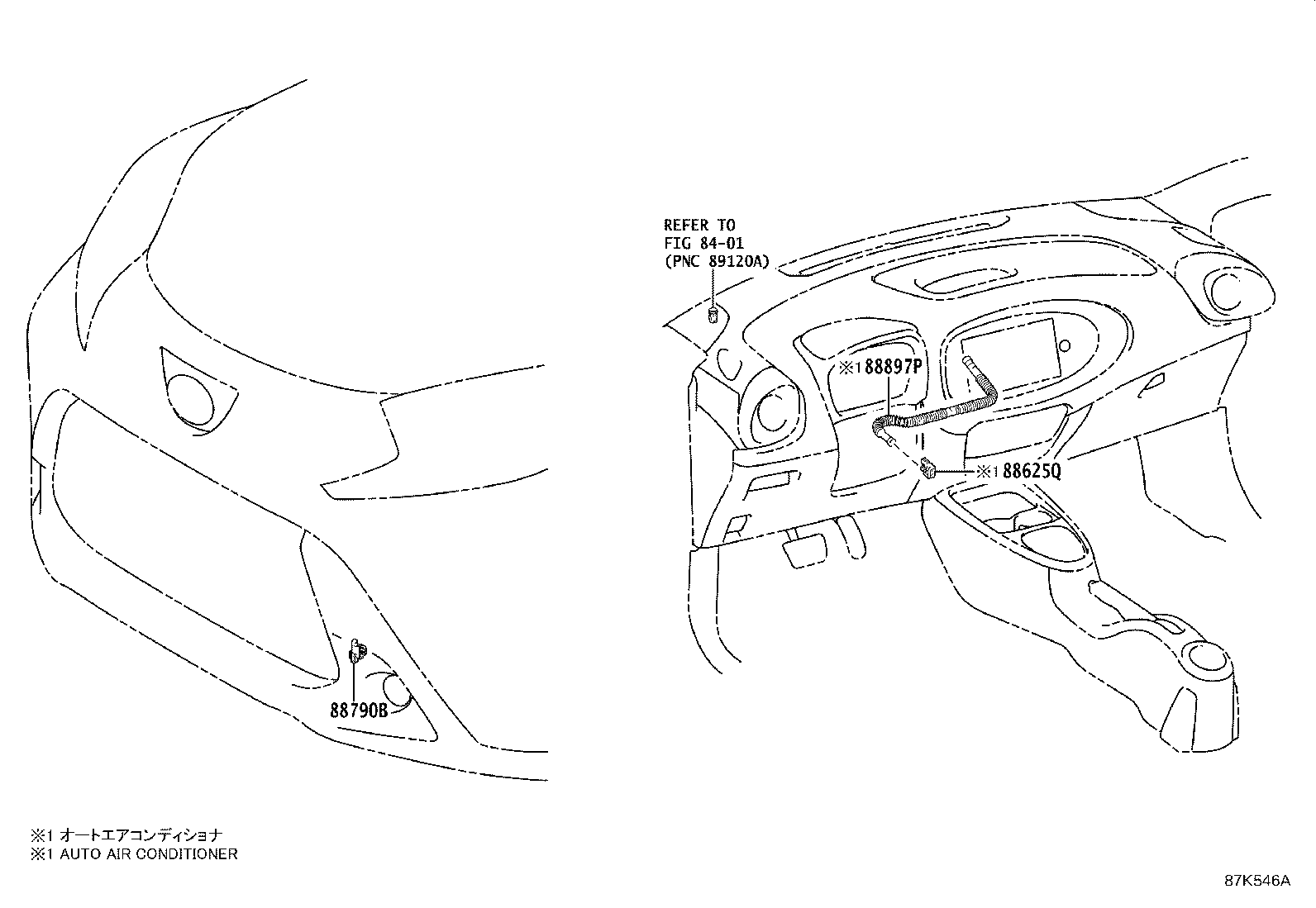

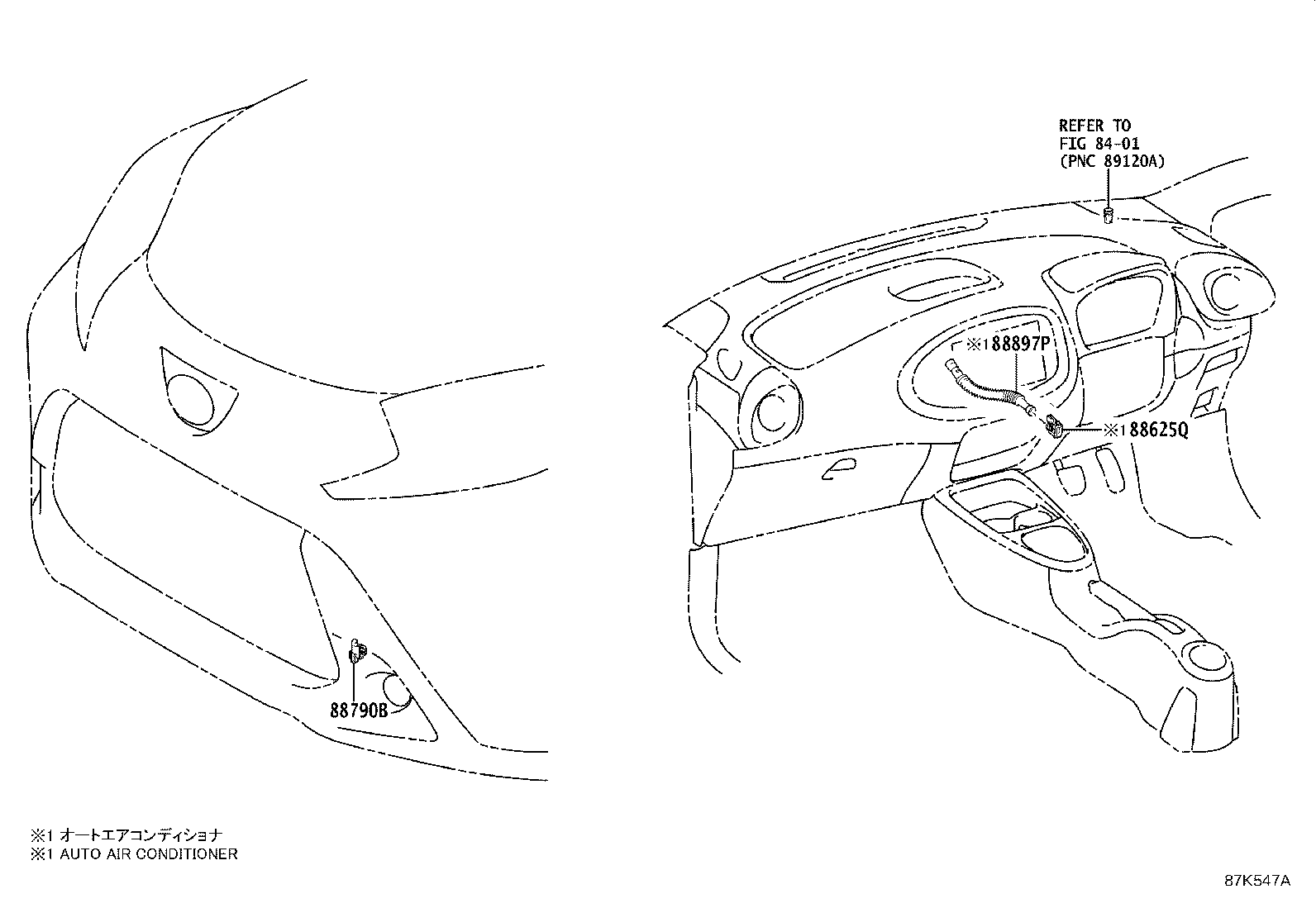

| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88790B | Thermistor Assy |
| 88897P | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
