Toyota Aygo X

2022-03 → present · chassis KGB70 · catalogue 101530 · Europe

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

2 part groups · 2 illustrations

Illustrations

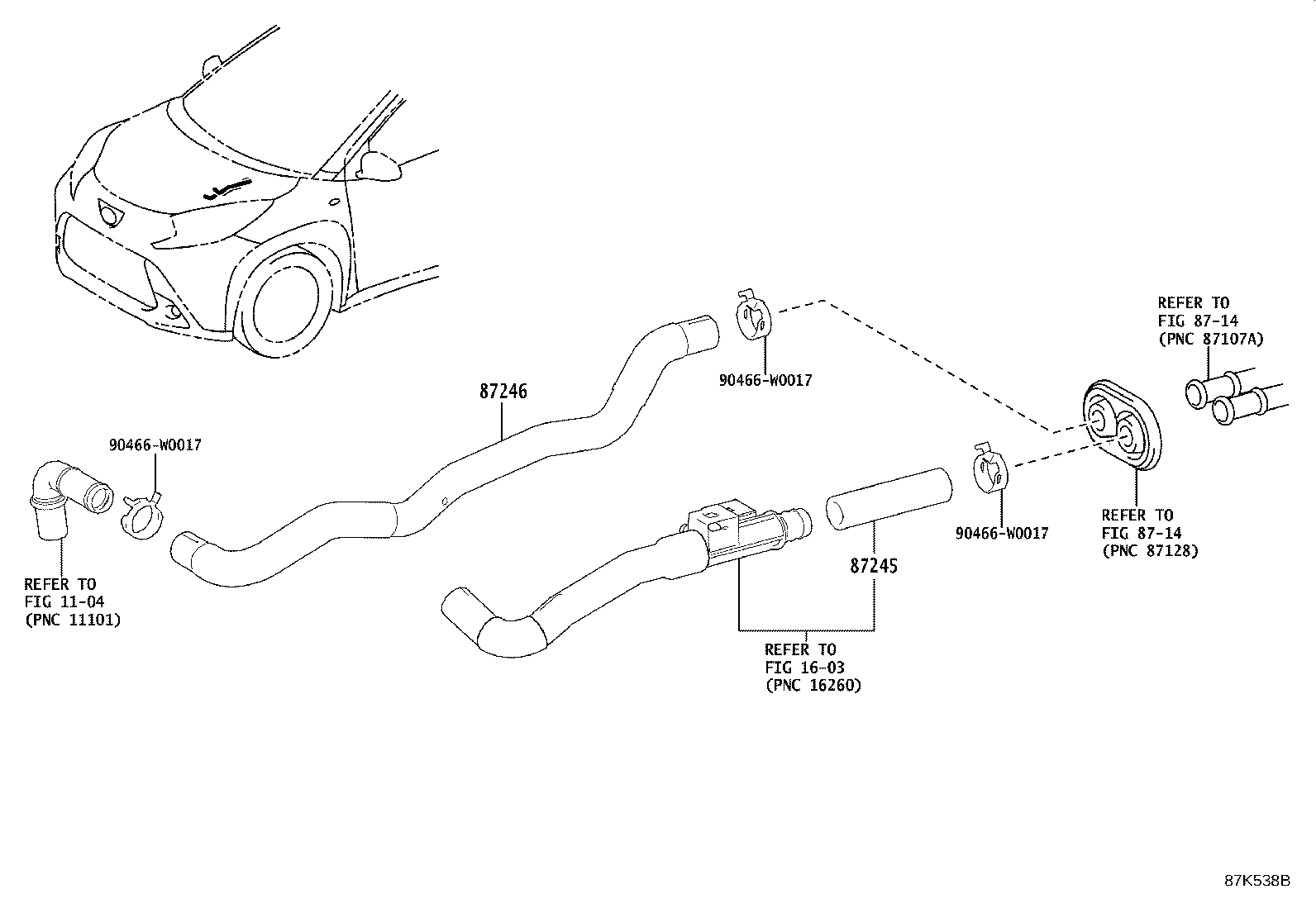

Figure 87K537A 87K537A 2022-03 → — Figure 87K538B 87K538B 2022-03 → —

Part groups

PNCDescription
87245 Hose, Heater Water, Inlet
87246 Hose, Heater Water, Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
