Toyota IQ
2008-11 → 2014-05 · chassis KGJ10,NGJ10,NUJ10 · catalogue 102510 · Europe
Supported model
Data version 2014-10

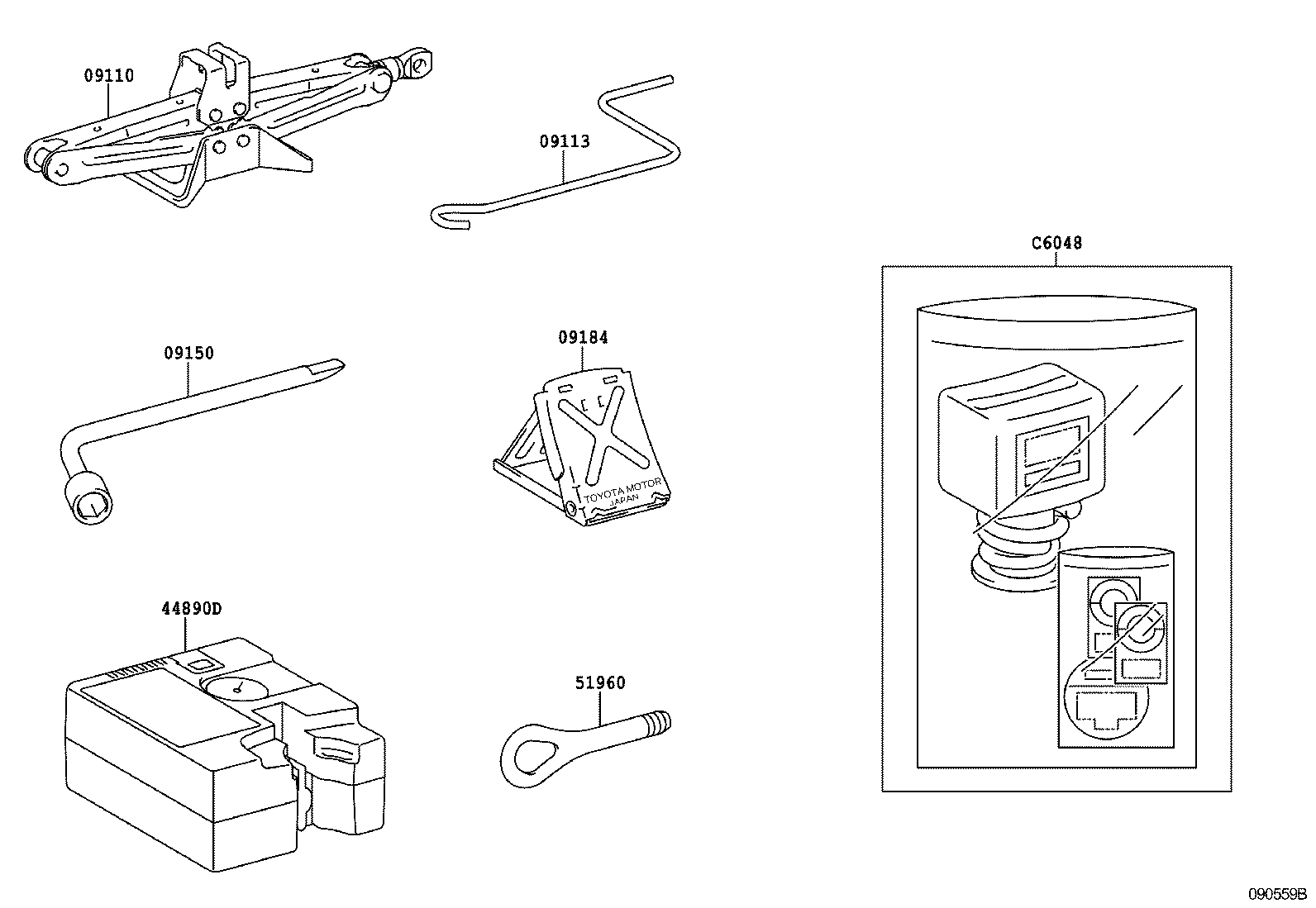

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 09110 — Jack Assy | ||||
| 09110-74010 |
Jack Assy
2008-11 → 2009-03
ended
|
KGJ10,NUJ10 | — | |
| 09110-74011 |
Jack Assy
2009-04 → 2009-07
ended
|
KGJ10,NGJ10,NUJ10 | — | |
| 09110-74020 |
Jack Assy
2009-07 → 2014-05
ended
|
KGJ10,NGJ10,NUJ10 | — | |
| 09113 — Handle, Jack | ||||
| 09113-13040 |
Handle, Jack
2008-11 → 2009-04
ended
|
KGJ10,NUJ10 | — | |
| 09113-20050 |
Handle, Jack
2011-12 → 2014-05
ended
|
KGJ10,NGJ10,NUJ10 | — | |
| 09113-52010 |
Handle, Jack
2009-04 → 2011-11
ended
|
KGJ10,NGJ10,NUJ10 | — | |
| 09150 — Wrench, Hub Nut Box | ||||
| 09150-40010 |
Wrench, Hub Nut Box
2008-11 → 2014-05
ended
|
KGJ10,NGJ10,NUJ10 | — | |
| 09184 — Stopper, Wheel | ||||
| 09184-00010 |
Stopper, Wheel
2009-04 → 2014-05
ended
|
KGJ10,NGJ10,NUJ10 | — | |
| 09184-50010 |
Stopper, Wheel
2008-11 → 2009-04
ended
|
KGJ10,NUJ10 | — | |
| 44890D — Compressor Assy, Air | ||||
| 44890-74030 |
Compressor Assy, Air
2010-05 → 2014-05
ended
|
KGJ10,NGJ10,NUJ10 | — | |
| 44890-74030 note |
Compressor Assy, Air
2010-05 → 2014-05
ended
|
NGJ10 N;KGJ10,NUJ10 | — | |
| 51960 — Hook Assy, Front | ||||
| 51961-52070 |
Hook Assy, Front
2008-11 → 2014-05
ended
|
KGJ10,NGJ10,NUJ10 | — | |
| C6048 — Repair Set, Tire | ||||
| C6048-74050 |
Repair Set, Tire
2010-05 → 2014-05
ended
|
KGJ10,NGJ10,NUJ10 | — | |
| C6048-74050 note |
Repair Set, Tire
2010-05 → 2014-05
ended
|
NGJ10 N;KGJ10,NUJ10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
