Toyota IQ
2008-11 → 2014-05 · chassis KGJ10,NGJ10,NUJ10 · catalogue 102510 · Europe
Supported model
Data version 2014-10

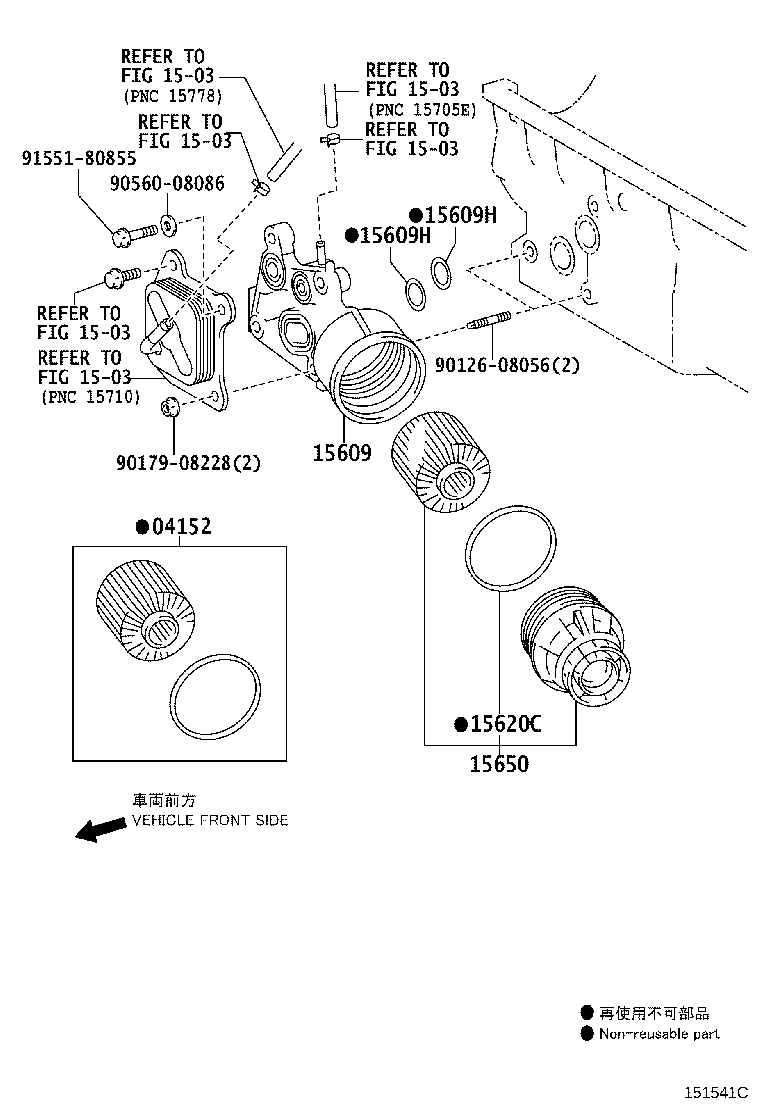

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04152 — Element Kit, Oil Filter | ||||
| 04152-31110 |
Element Kit, Oil Filter
2008-11 → 2012-05
ended
|
1NDTV NUJ10 | — | |
| 04152-40060 |
Element Kit, Oil Filter
2009-05 → 2014-05
ended
|
1NRFE NGJ10 | — | |
| 15609 — Bracket Sub-assy, Oil Filter | ||||
| 15609-33040 |
Bracket Sub-assy, Oil Filter
2008-11 → 2010-03
ended
|
1NDTV NUJ10 RHD | — | |
| 15609-33040 |
Bracket Sub-assy, Oil Filter
2008-11 → 2012-05
ended
|
1NDTV NUJ10 LHD | — | |
| 15609H — Ring, O(FOR OIL FILTER BRACKET) | ||||
| 90301-24018 |
Ring, O(FOR OIL FILTER BRACKET)
2008-11 → 2010-03
ended
|
1NDTV NUJ10 RHD | — | |
| 90301-24018 |
Ring, O(FOR OIL FILTER BRACKET)
2008-11 → 2012-05
ended
|
1NDTV NUJ10 LHD | — | |
| 15620C — Gasket(FOR OIL FILTER CAP) | ||||
| 90301-69011 |
Gasket(FOR OIL FILTER CAP)
2009-05 → 2014-05
ended
|
1NRFE NGJ10 | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2008-11 → 2012-05
ended
|
1NDTV NUJ10 | — | |
| 15650 — Cap Assy, Oil Filter W/Elememt | ||||
| 15650-33010 |
Cap Assy, Oil Filter W/Elememt
2008-11 → 2010-03
ended
|
1NDTV NUJ10 RHD | — | |
| 15650-33010 |
Cap Assy, Oil Filter W/Elememt
2008-11 → 2012-05
ended
|
1NDTV NUJ10 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
