Toyota IQ
2008-11 → 2014-05 · chassis KGJ10,NGJ10,NUJ10 · catalogue 102510 · Europe
Supported model
Data version 2014-10
Cylinder Block

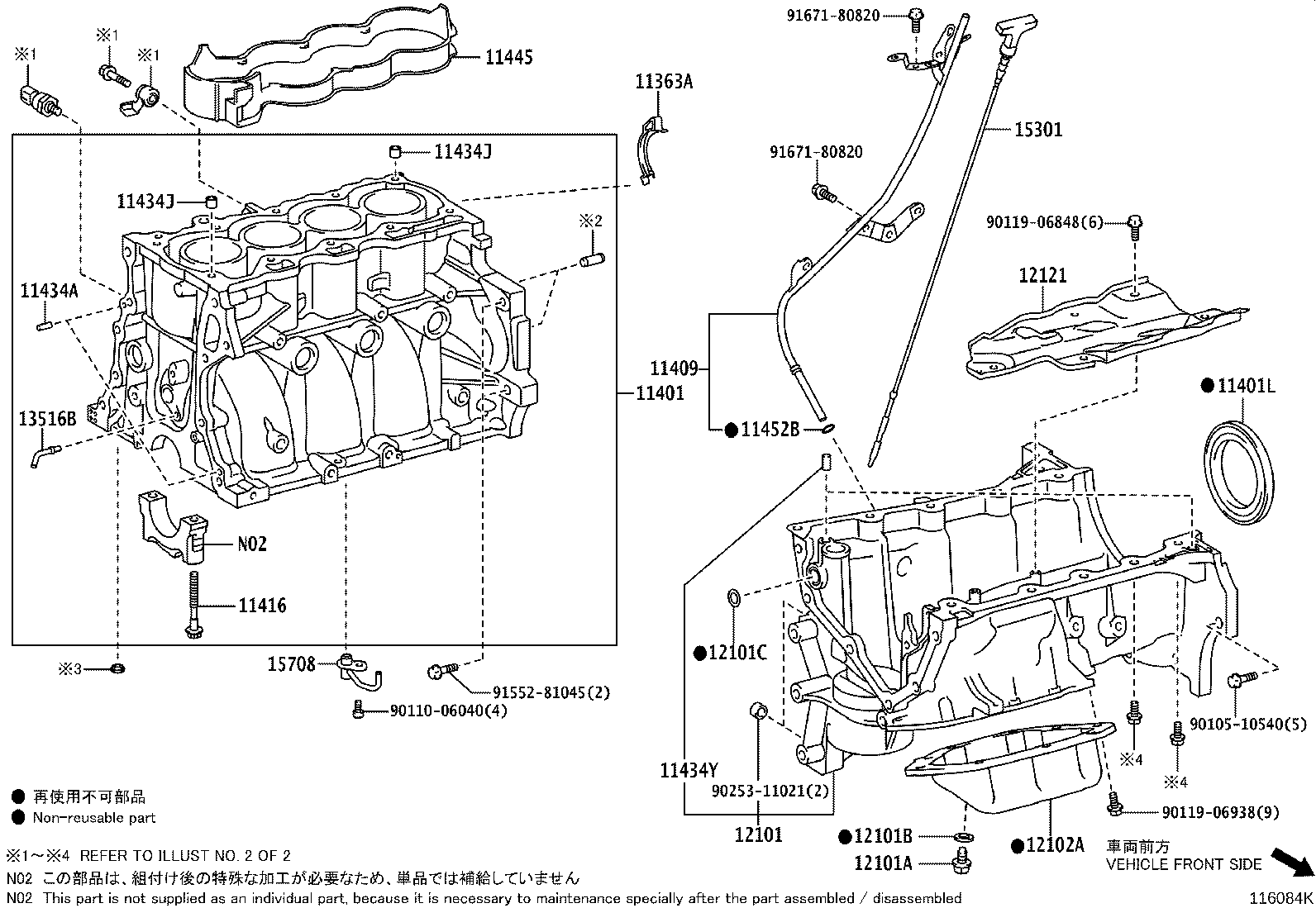

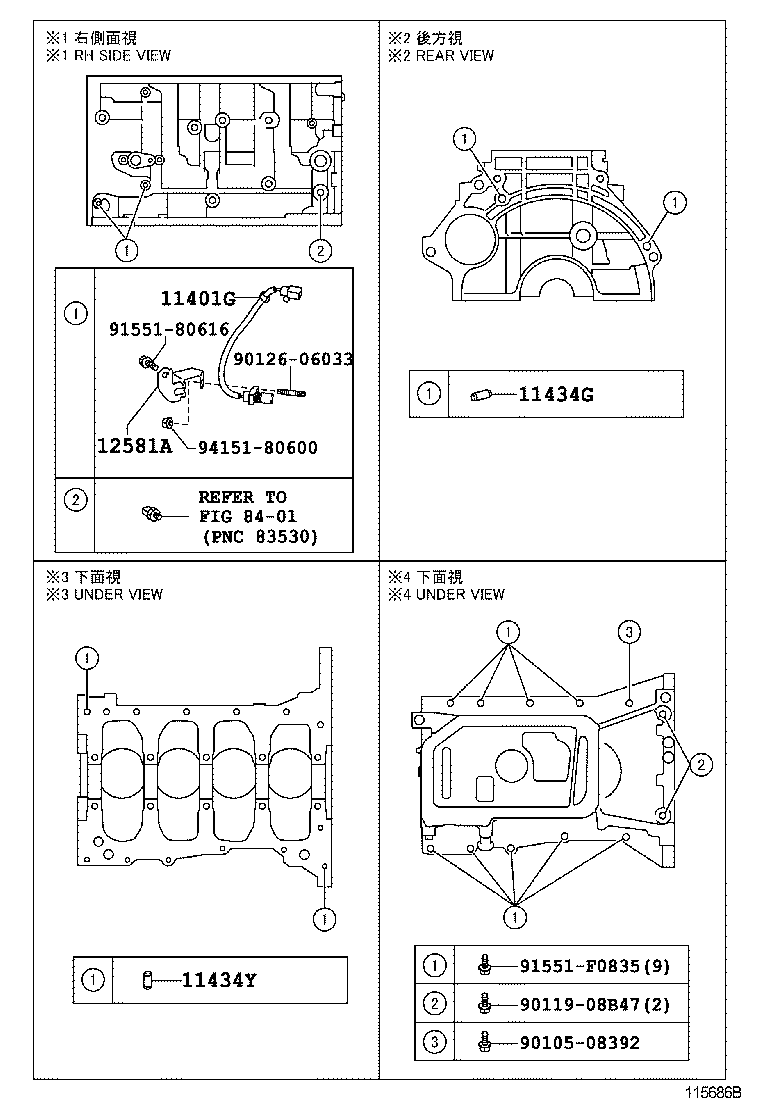

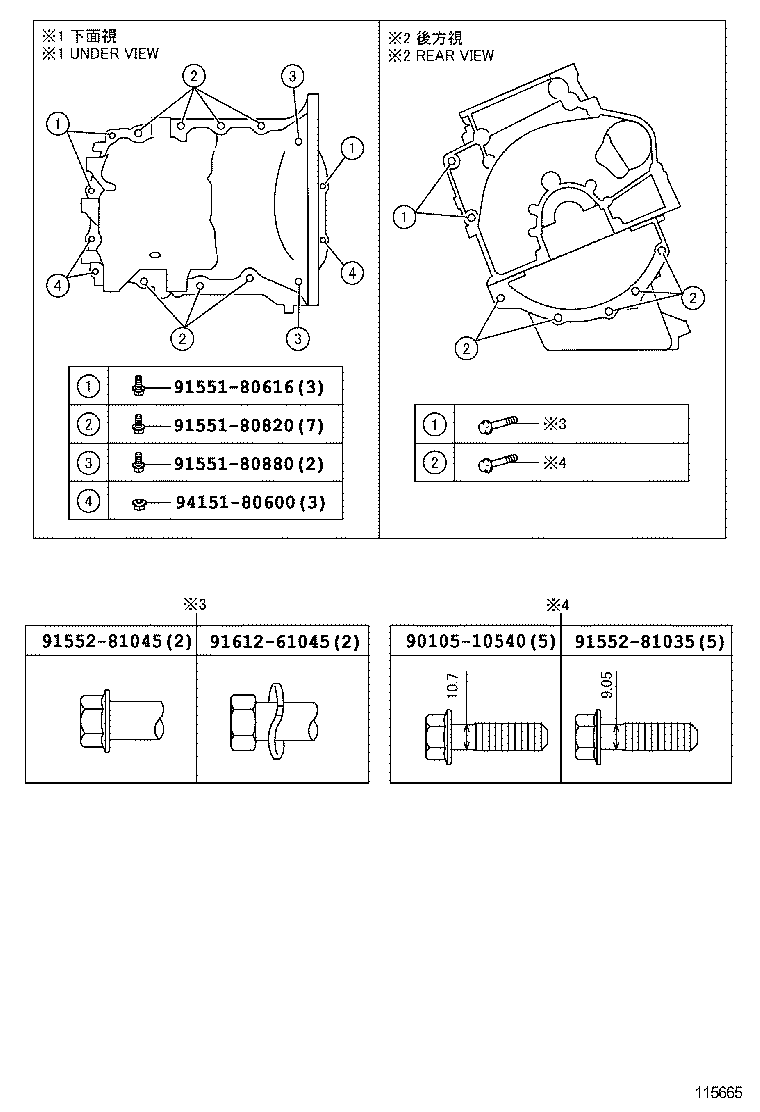

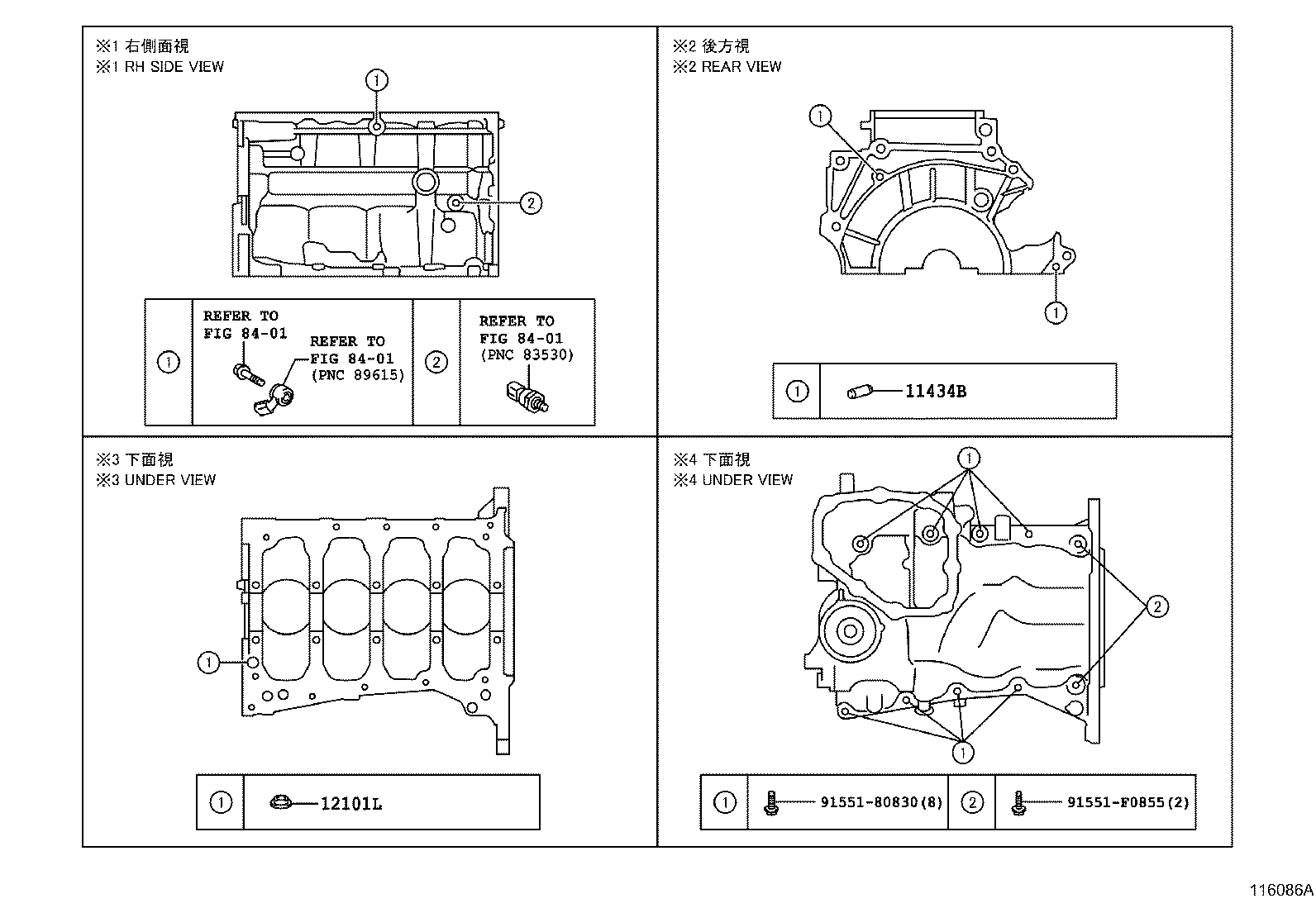

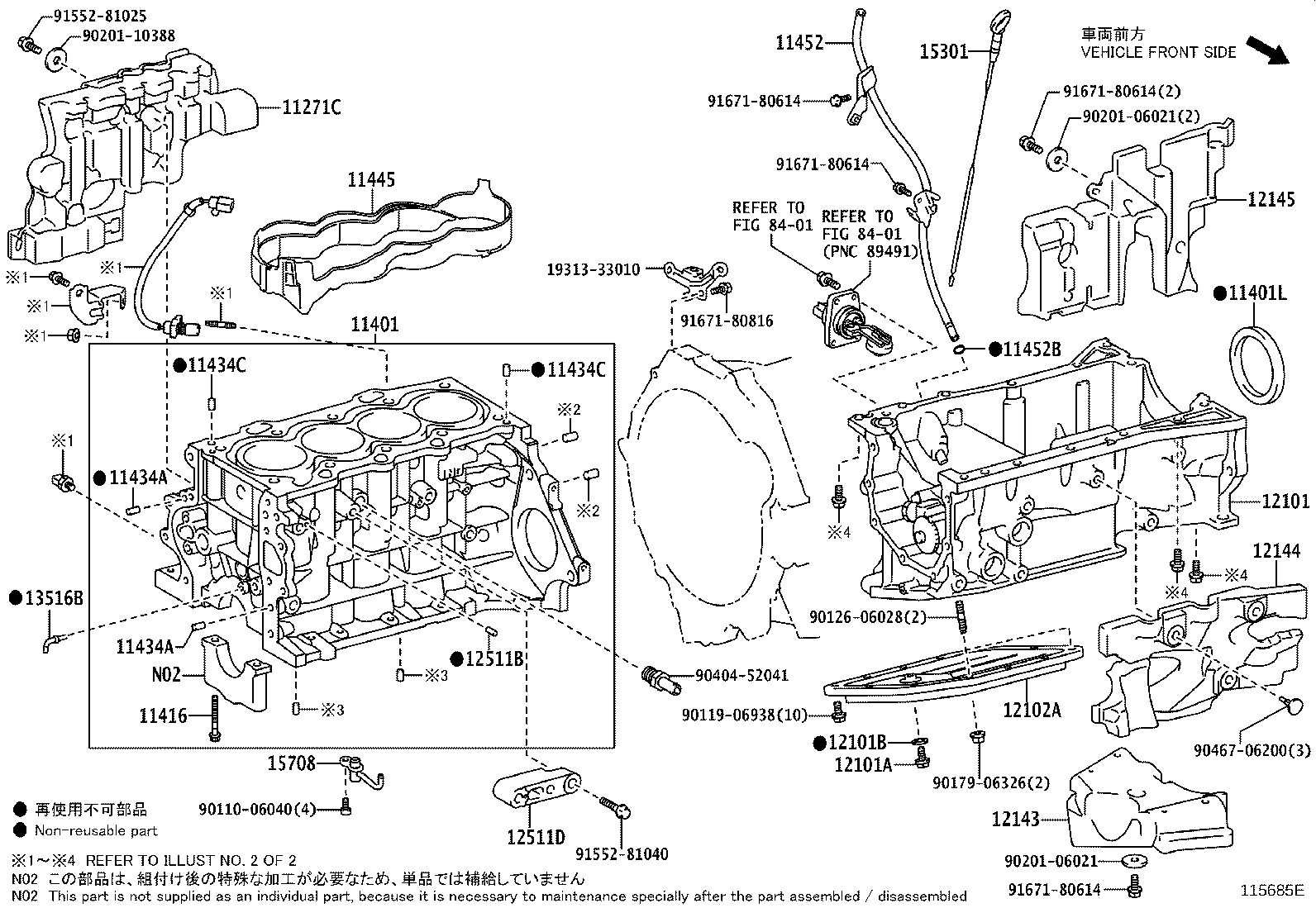

33 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 11271C | Cover, Cylivder Block Side |
| 11363A | Cover, Flywheel Housing Side |
| 11401 | Block Sub-assy, Cylinder |
| 11401G | Sensor, Crank Position |
| 11401L | Seal, Engine Rear Oil |
| 11409 | Guide Sub-assy, Oil Level Gage |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434C | Pin, Straight (FOR CYLINDER HEAD SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11434G | Pin, Straight(FOR END PLATE) |
| 11434J | Pin, Ring (FOR CYLINDER HEAD SET) |
| 11434Y | Pin, Straight(FOR OIL PAN) |
| 11445 | Spacer, Cylinder Block Water Jacket |
| 11452 | Guide, Oil Level Gage |
| 11452B | Ring, O(FOR OIL LEVEL GAGE GUIDE) |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12101C | Ring, O(FOR OIL PAN) |
| 12101L | Gasket NO.1(FOR OIL PAN) |
| 12102A | Pan Sub-assy, Oil, NO.2 |
| 12121 | Plate, Oil Pan Baffle, NO.1 |
| 12143 | Cover, Oil Pan |
| 12144 | Silencer, Oil Pan Cover |
| 12145 | Silencer, Oil Pan Cover, NO.2 |
| 12511B | Pin, Ring(FOR ALTERNATOR BRACKET) |
| 12511D | Bracket, Alternator |
| 12581A | Insulator, Cylinder Block, NO.1 |
| 13516B | Jet, Oil |
| 15301 | Gage Sub-assy, Oil Level |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
