Toyota IQ

2008-11 → 2014-05 · chassis KGJ10,NGJ10,NUJ10 · catalogue 102510 · Europe

Supported model Data version 2014-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

9 part groups · 3 illustrations

Illustrations

Figure 151537B

151537B 2008-11 → —

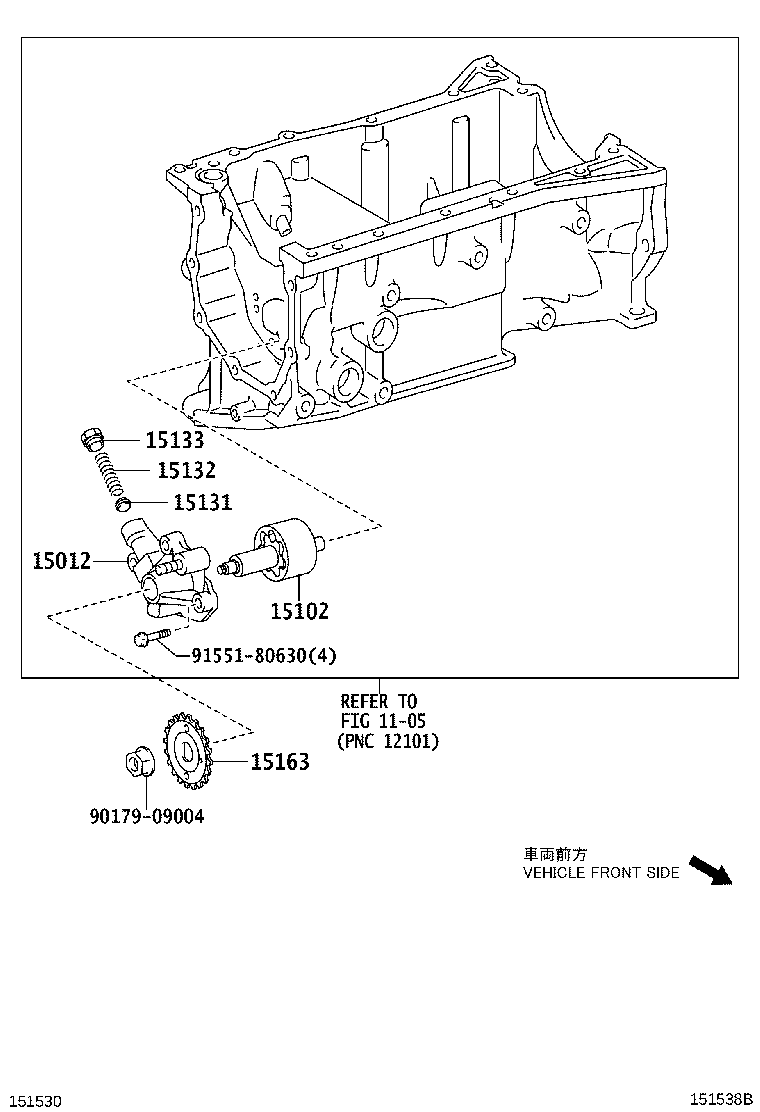

Figure 151538B

151538B 2008-11 → —

Figure 151634A

151634A 2009-05 → —

Part groups

PNC	Description
15012	Cover Sub-assy, Oil Pump
15102	Rotor Set, Oil Pump
15104	Strainer Sub-assy, Oil
15104A	Ring, O(FOR OIL STRAINER)
15131	Valve, Oil Pump Relief
15132	Spring, Oil Pump Relief Valve
15133	Plug, Oil Pump Relief Valve
15147	Gasket, Oil Strainer
15163	Gear, Oil Pump Drive Shaft

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
