Toyota IQ

2008-11 → 2014-05 · chassis KGJ10,NGJ10,NUJ10 · catalogue 102510 · Europe

Supported model Data version 2014-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

5 part groups · 3 illustrations

Illustrations

Figure 163675C

163675C 2008-11 → —

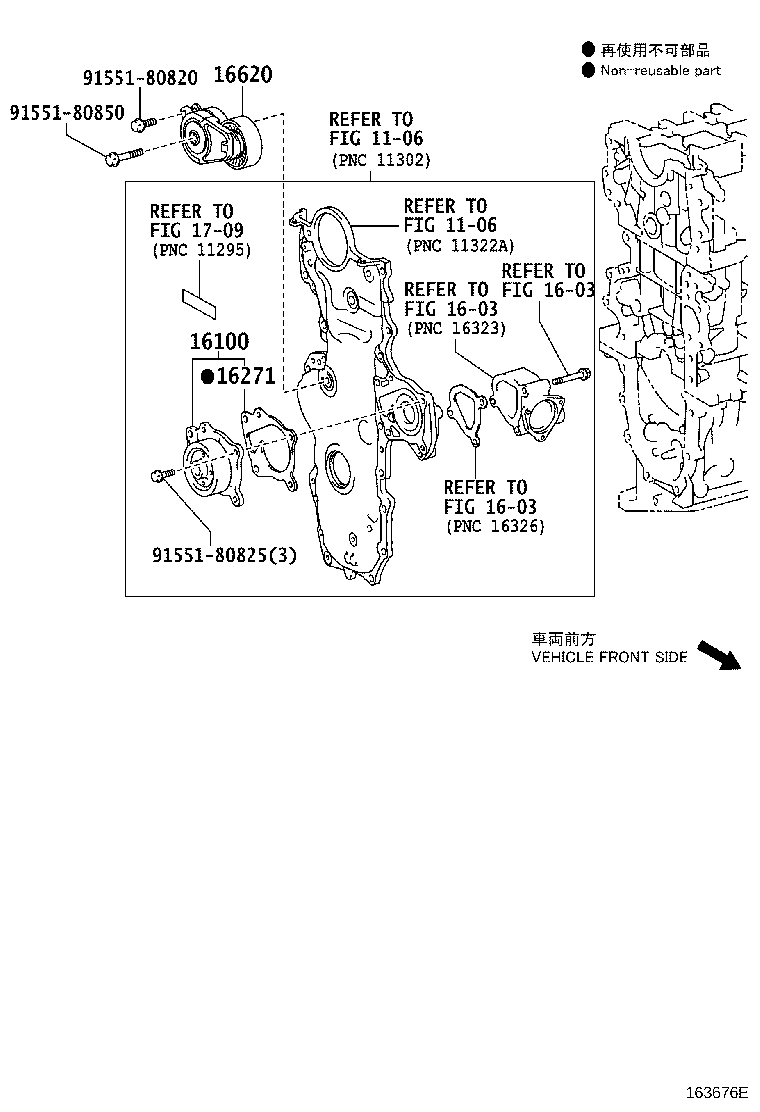

Figure 163676E

163676E 2008-11 → —

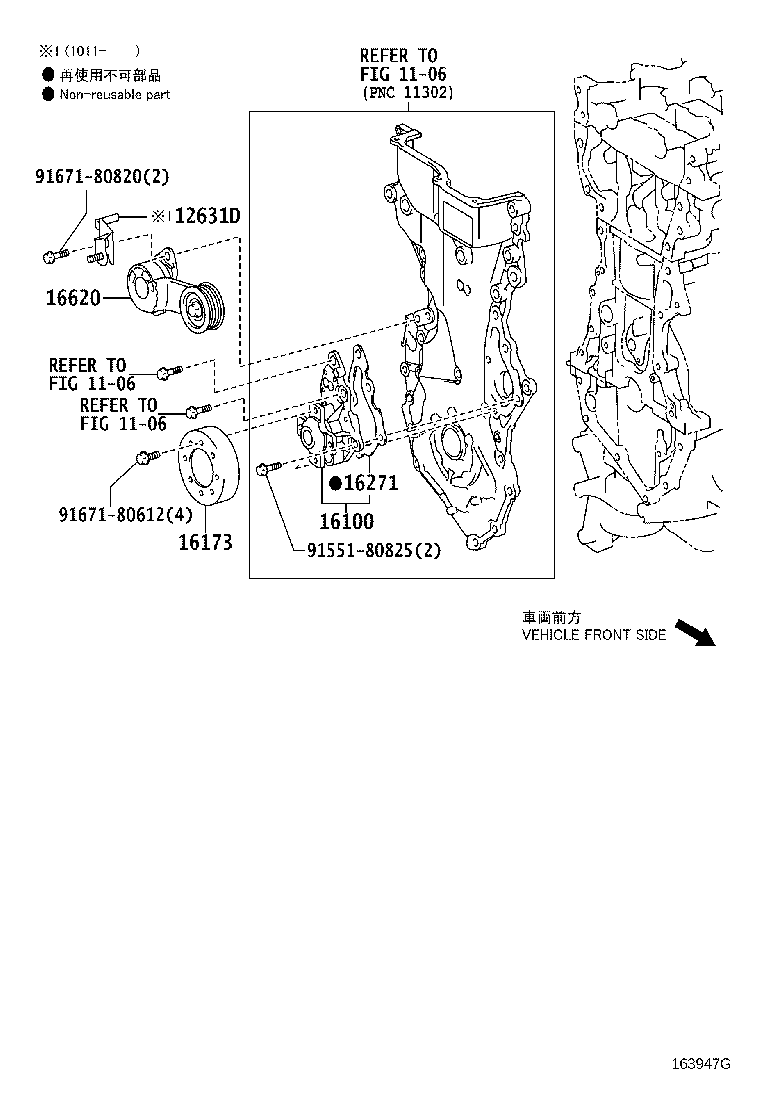

Figure 163947G

163947G 2009-05 → —

Part groups

PNC	Description
12631D	Bracket, Engine Cover
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
