Toyota IQ

2008-11 → 2014-05 · chassis KGJ10,NGJ10,NUJ10 · catalogue 102510 · Europe

Supported model Data version 2014-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

6 part groups · 4 illustrations

Illustrations

Figure 176156C

176156C 2008-11 → —

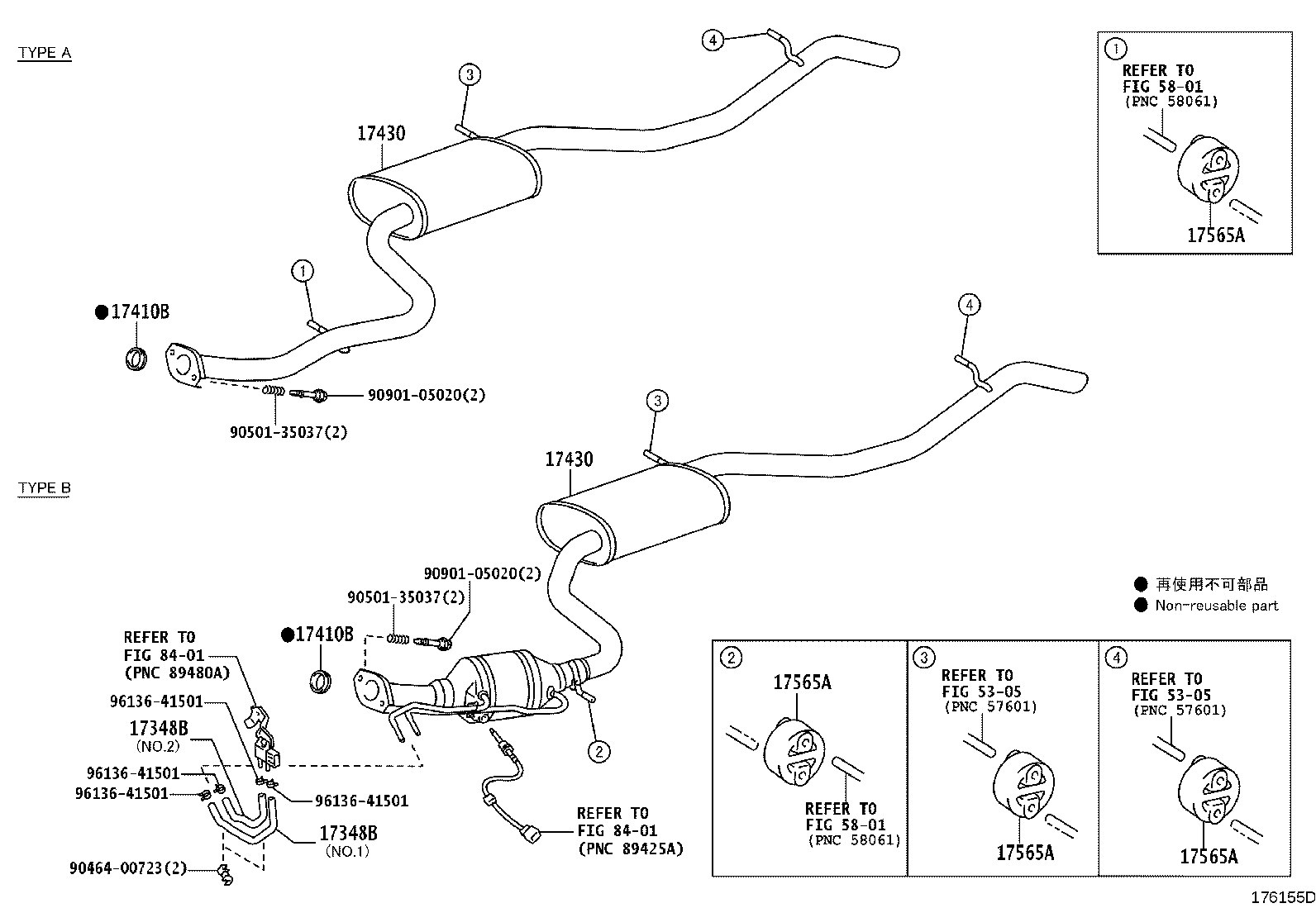

Figure 176155D

176155D 2008-11 → —

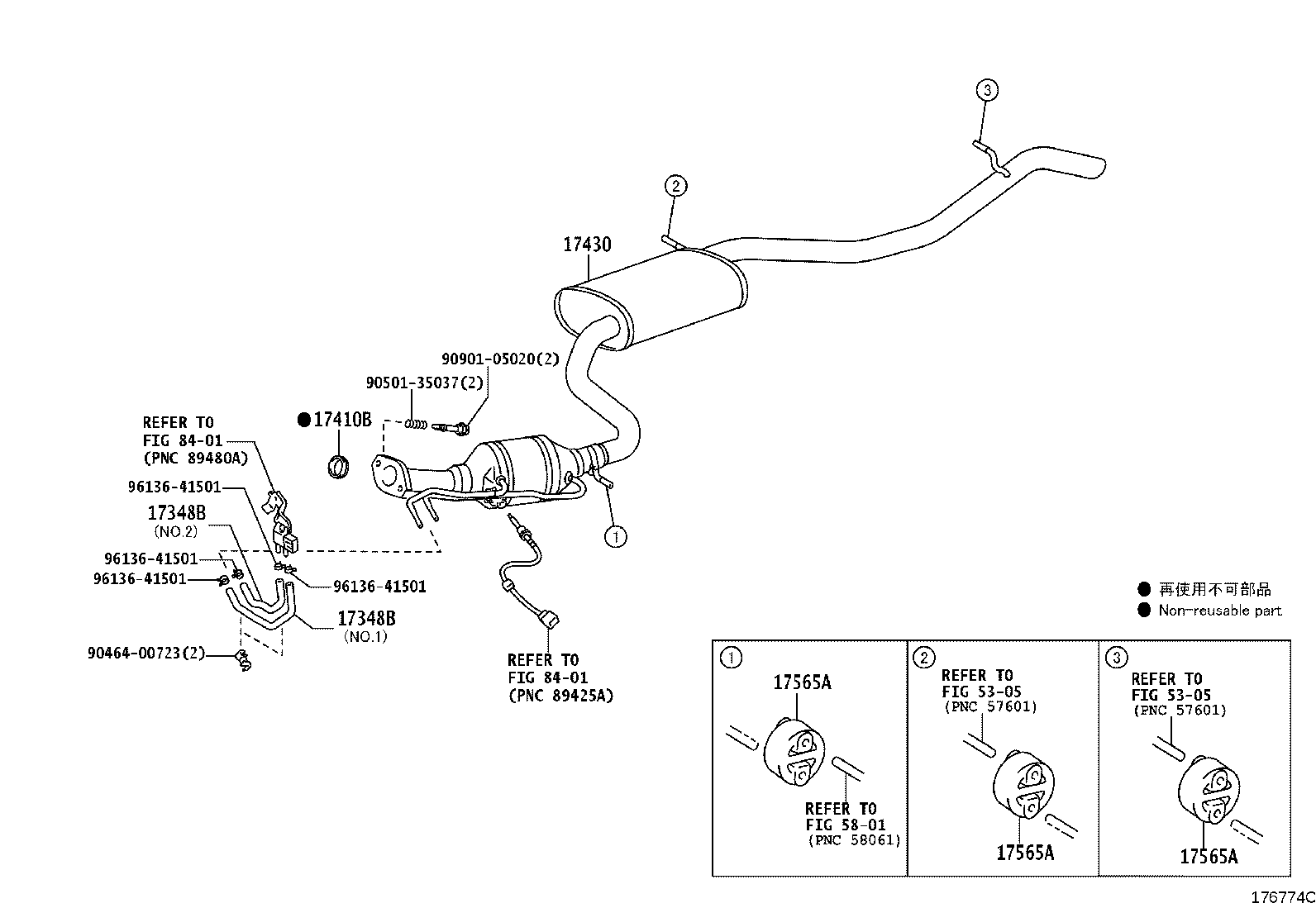

Figure 176774C

176774C 2008-11 → —

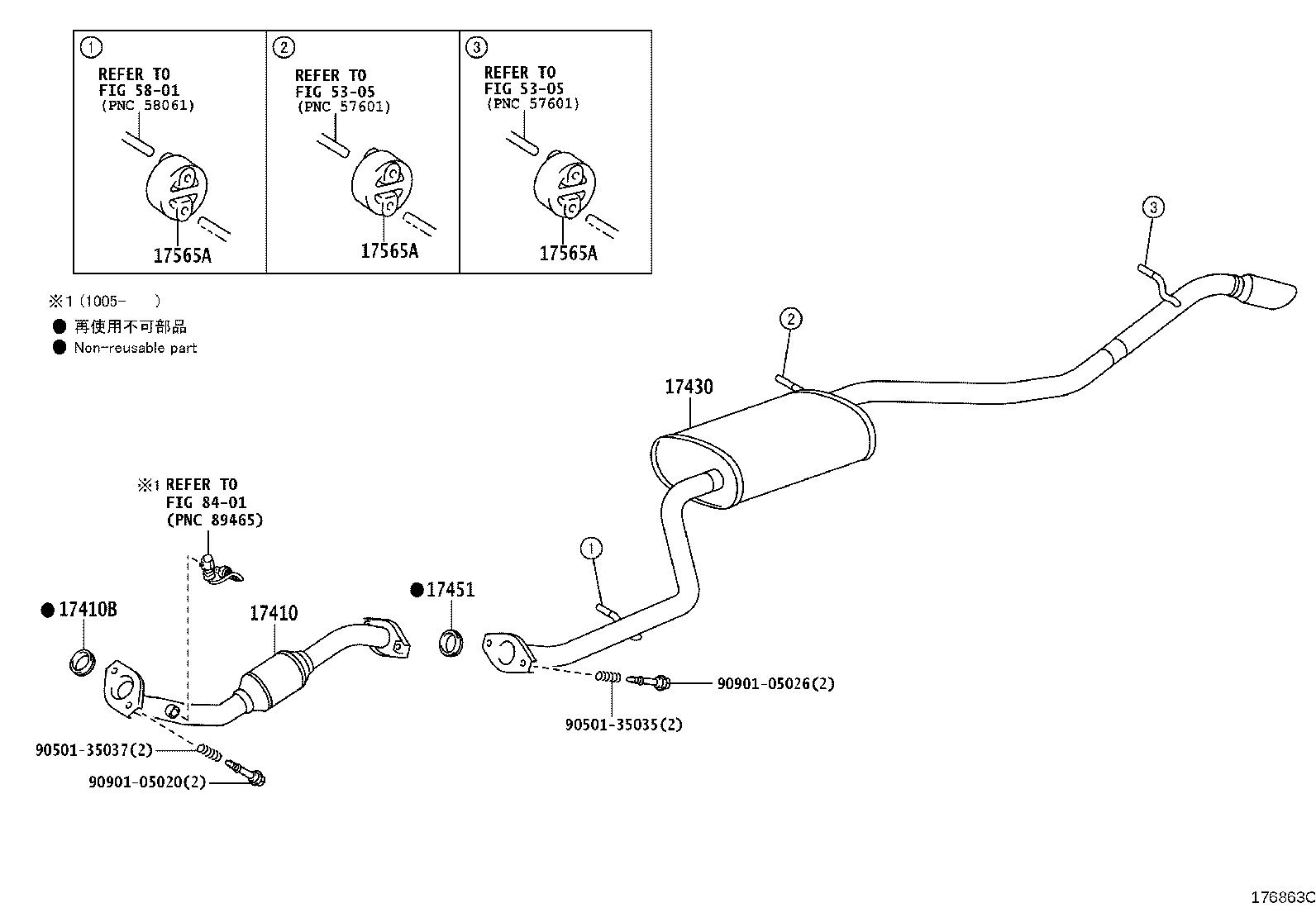

Figure 176863C

176863C 2009-05 → —

Part groups

PNC	Description
17348B	Hose, Air, NO.8(FOR EXHAUST PIPE)
17410	Pipe Assy, Exhaust, Front
17410B	Gasket, Exhaust Pipe
17430	Pipe Assy, Exhaust, Tail
17451	Gasket, Exhaust Pipe
17565A	Support, Exhaust Pipe, NO.4

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
