Toyota IQ

2008-11 → 2014-05 · chassis KGJ10,NGJ10,NUJ10 · catalogue 102510 · Europe

Supported model Data version 2014-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

27 part groups · 3 illustrations

Illustrations

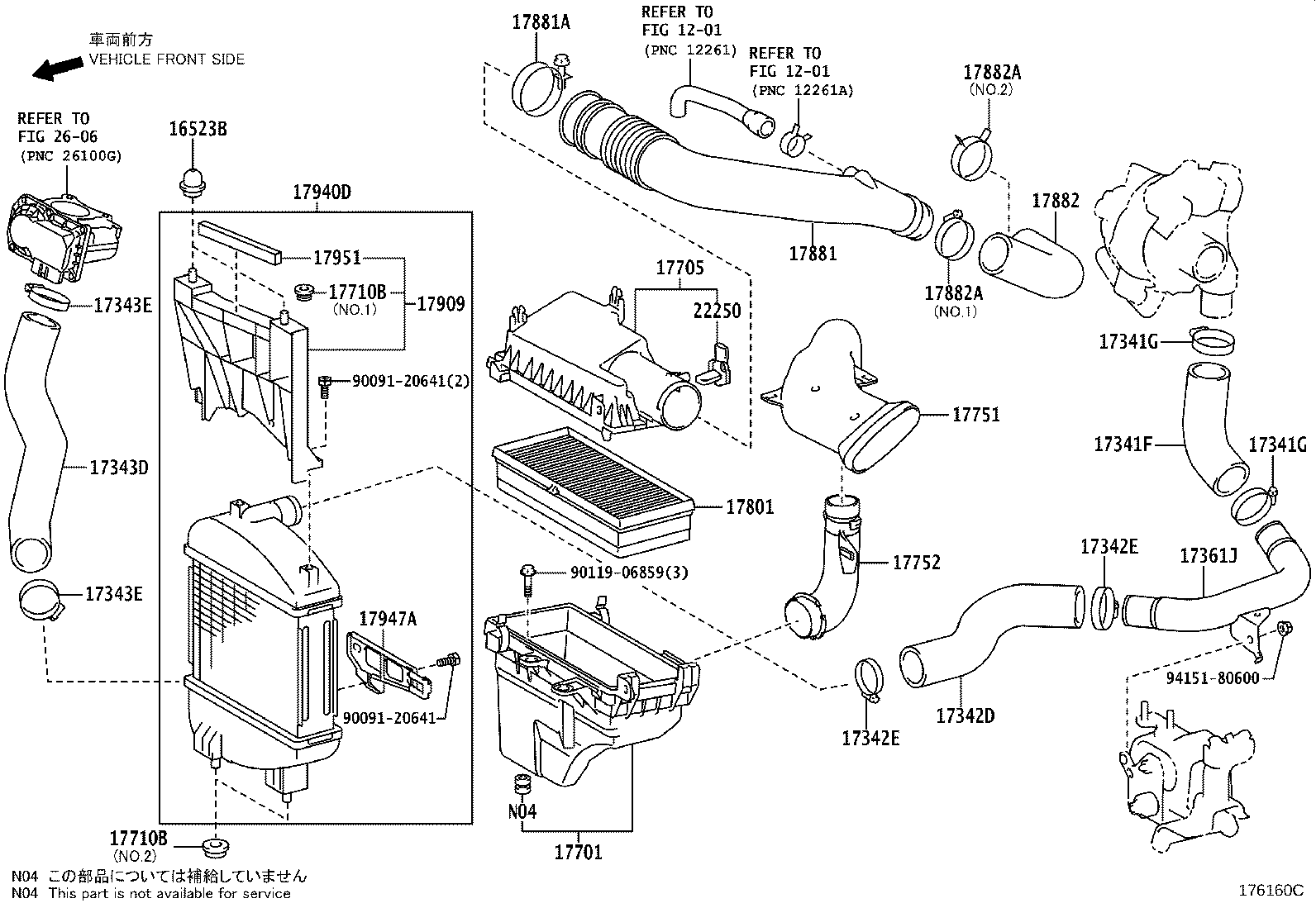

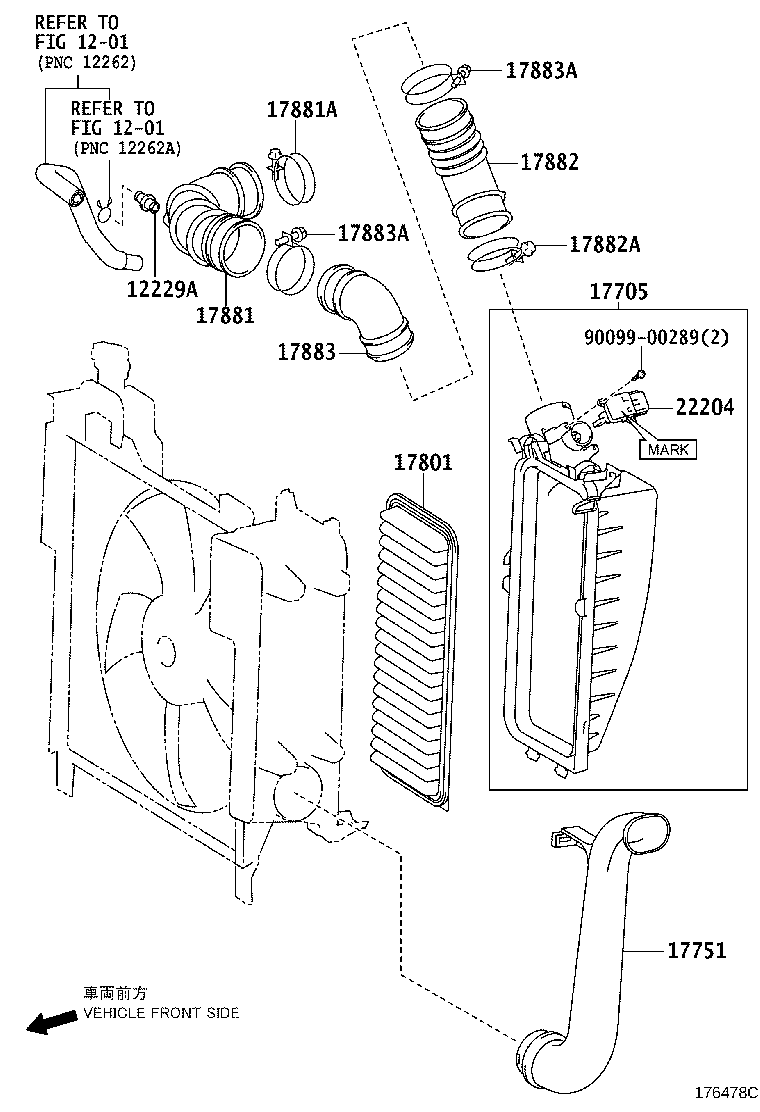

Figure 176157A 176157A 2008-11 → — Figure 176160C 176160C 2008-11 → — Figure 176478C 176478C 2009-05 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
16523B Cushion, Radiator Support
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17361J Tube, Air, NO.1
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17909 Duct Sub-assy, Intercooler Cooling Air
17940D Intercooler Assy
17947A Plate, Intercooler
17951 Insulator, Intercooler
22204 Meter Sub-assy, Intake Air Flow
22250 Meter Assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
