Toyota IQ

2008-11 → 2014-05 · chassis KGJ10,NGJ10,NUJ10 · catalogue 102510 · Europe

Supported model Data version 2014-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

14 part groups · 3 illustrations

Illustrations

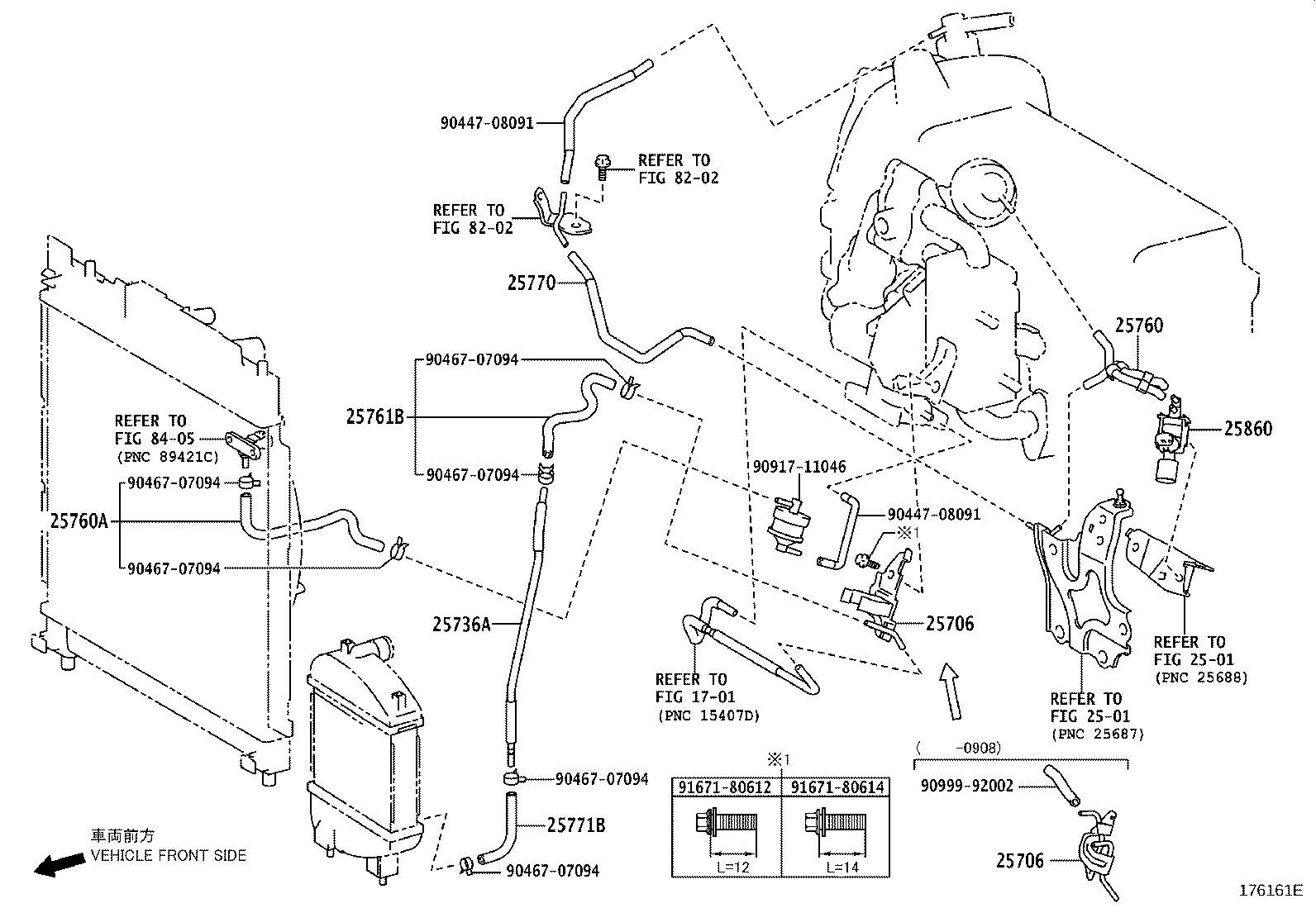

Figure 176177A 176177A 2008-11 → — Figure 176161E 176161E 2008-11 → — Figure 176480A 176480A 2009-05 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17650 Valve Assy, Vacuum Switching
17650G Valve, Duty Vacuum Switching
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25736A Pipe, Vacuum Transmitting, NO.1
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25761B Hose, Vaccum Transmitting, NO.1
25770 Hose Assy, Vacuum Transmitting, NO.2
25771B Hose, Vaccum Transmitting, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
