Toyota IQ

2008-11 → 2014-05 · chassis KGJ10,NGJ10,NUJ10 · catalogue 102510 · Europe

Supported model Data version 2014-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

12 part groups · 4 illustrations

Illustrations

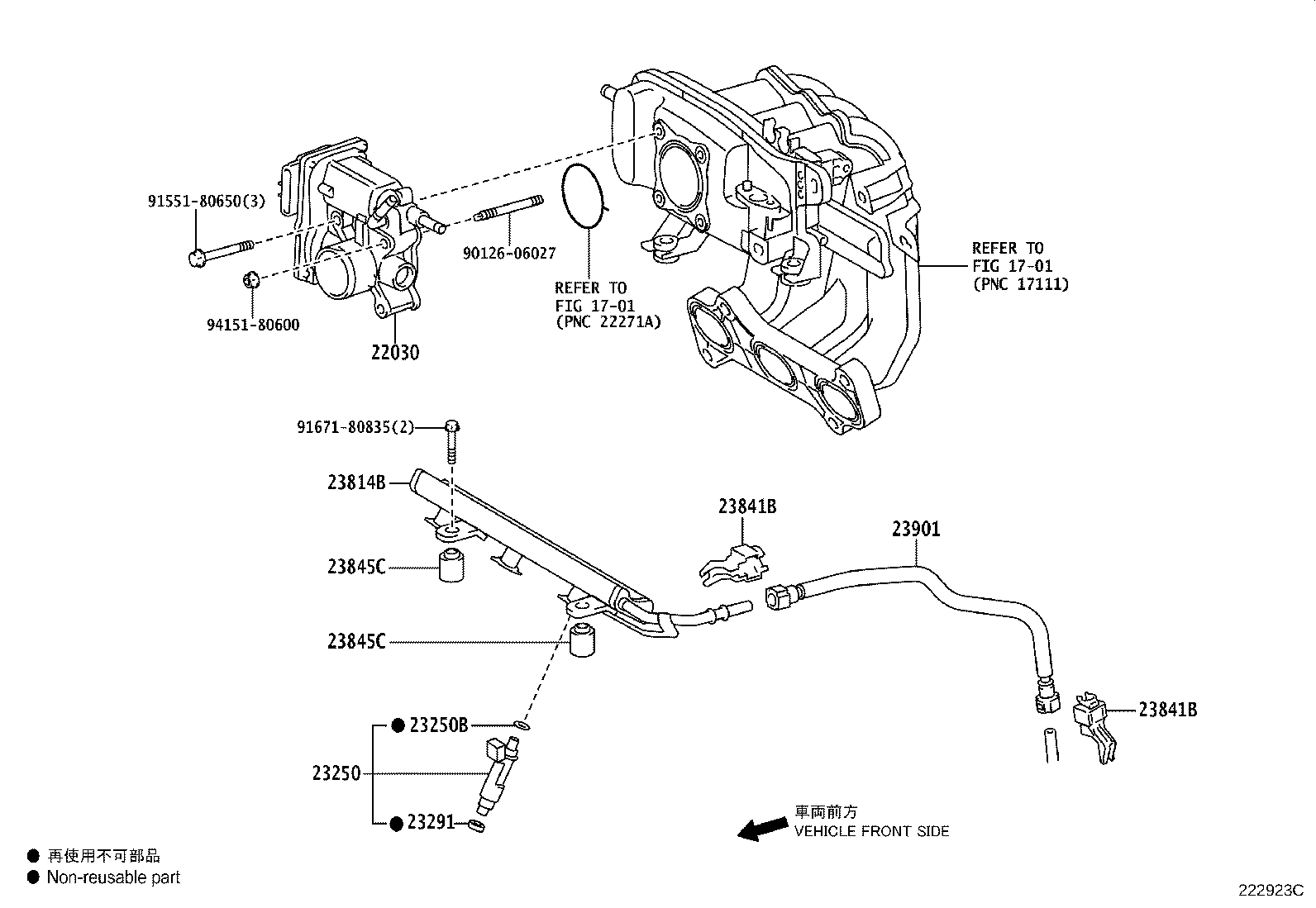

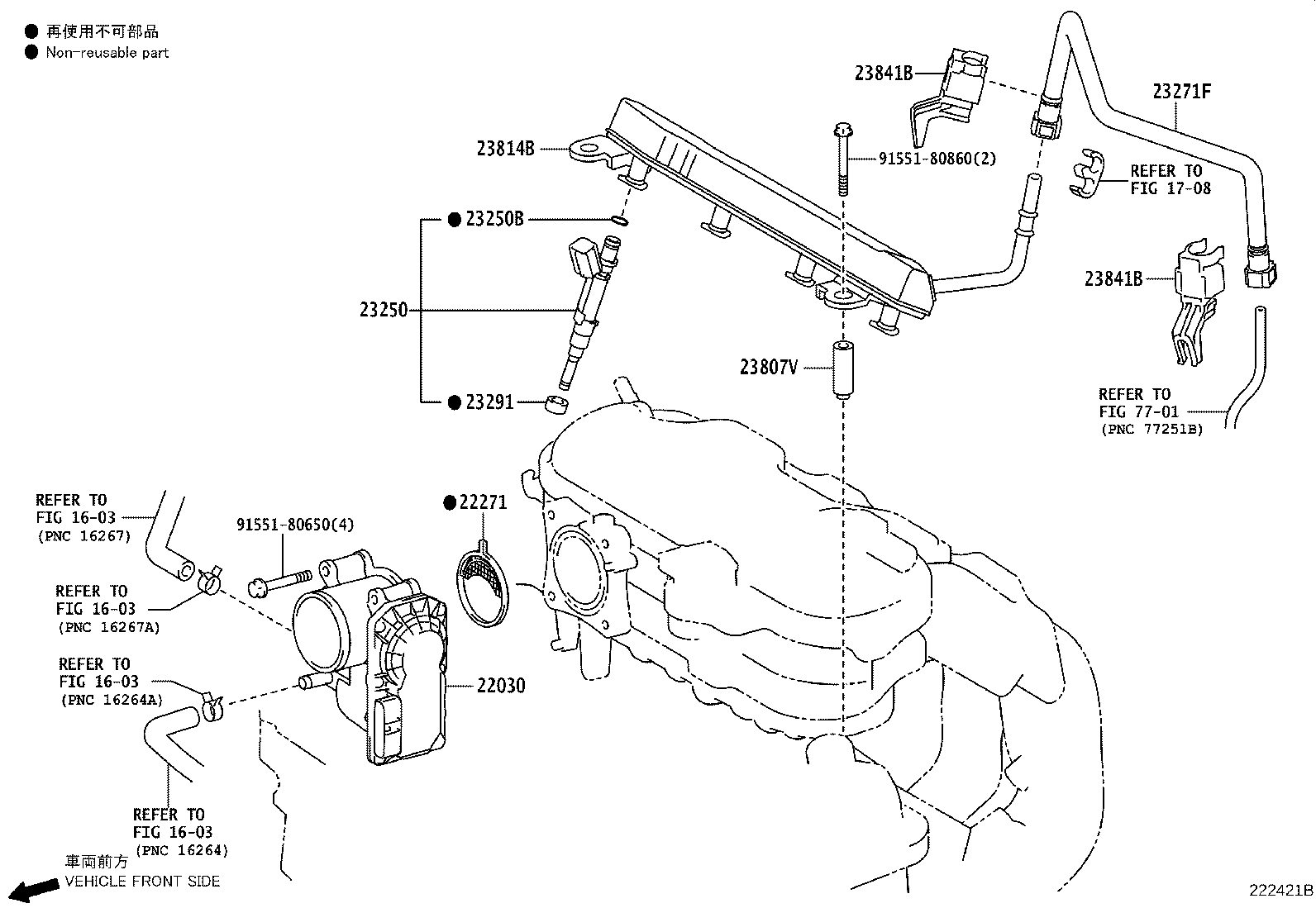

Figure 222327C 222327C 2008-11 → 2013-04 Figure 222327C 222327C 2013-09 → — Figure 222923C 222923C 2013-04 → 2013-09 Figure 222421B 222421B 2009-05 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22271 Gasket, Throttle Body
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23271F Hose, Fuel
23291 Insulator, Injector Vibration
23807 Pipe Sub-assy, Fuel Delivery
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23814B Pipe, Fuel Delivery
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23845C Insulator, Fuel Pipe
23901 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
