Exhaust Gas Recirculation System

16 part groups · 3 illustrations

Illustrations

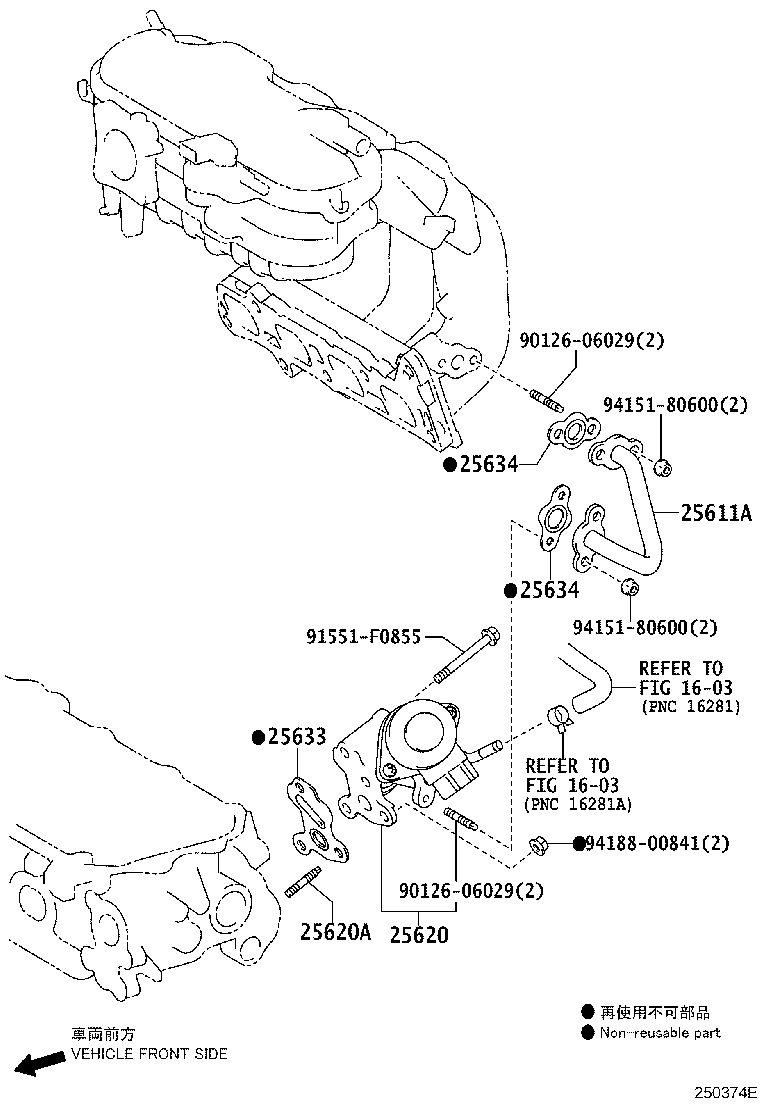

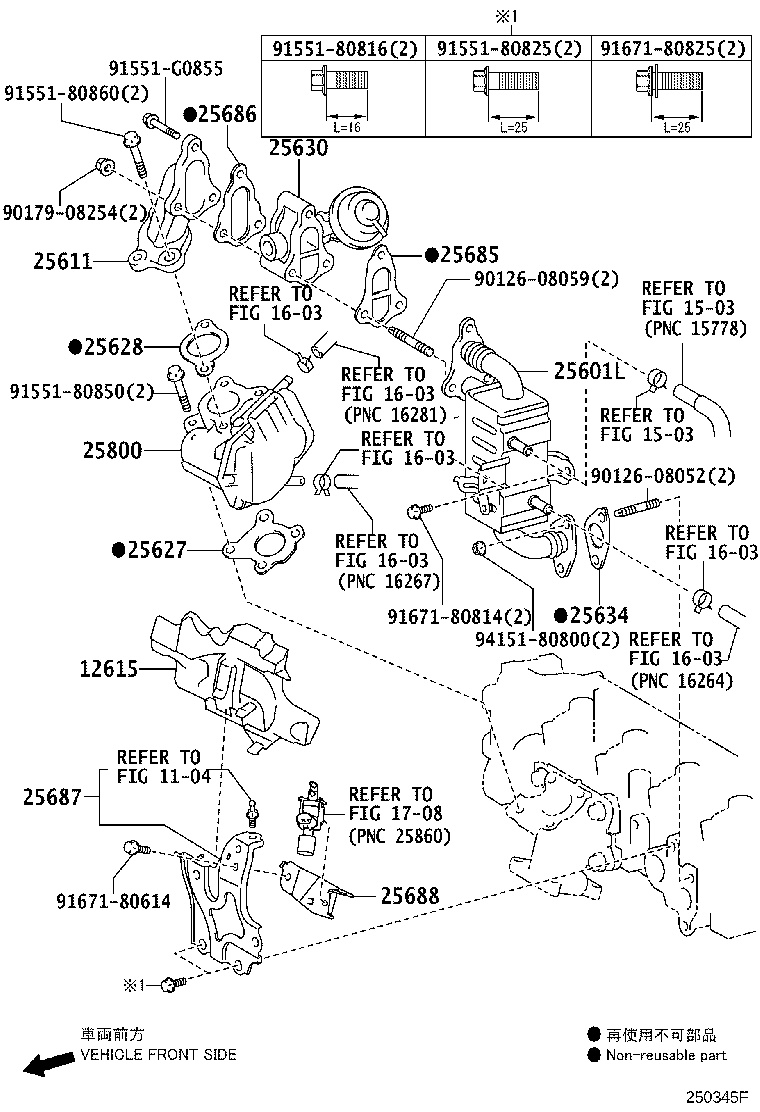

Figure 250344B 250344B 2008-11 → — Figure 250345F 250345F 2008-11 → — Figure 250374E 250374E 2009-05 → —

Part groups

PNCDescription
12615 Cover, Engine, NO.5
25601L Pipe Sub-assy, Egr W/Cooler
25611 Connector, Egr Pipe
25611A Pipe, Egr, NO.1
25620 Valve Assy, Egr
25620A Bolt, Stud(FOR EGR VALVE)
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25630 Valve Assy, Egr, NO.2
25633 Gasket, Egr Valve
25634 Gasket, Egr Pipe
25685 Gasket, Egr Cooler, NO.1
25686 Gasket, Egr Cooler, NO.2
25687 Bracket, Egr Cooler, NO.1
25688 Bracket, Egr Cooler, NO.2
25800 Valve Assy, Electric Egr Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
