Toyota IQ

2008-11 → 2014-05 · chassis KGJ10,NGJ10,NUJ10 · catalogue 102510 · Europe

Supported model Data version 2014-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

8 part groups · 4 illustrations

Illustrations

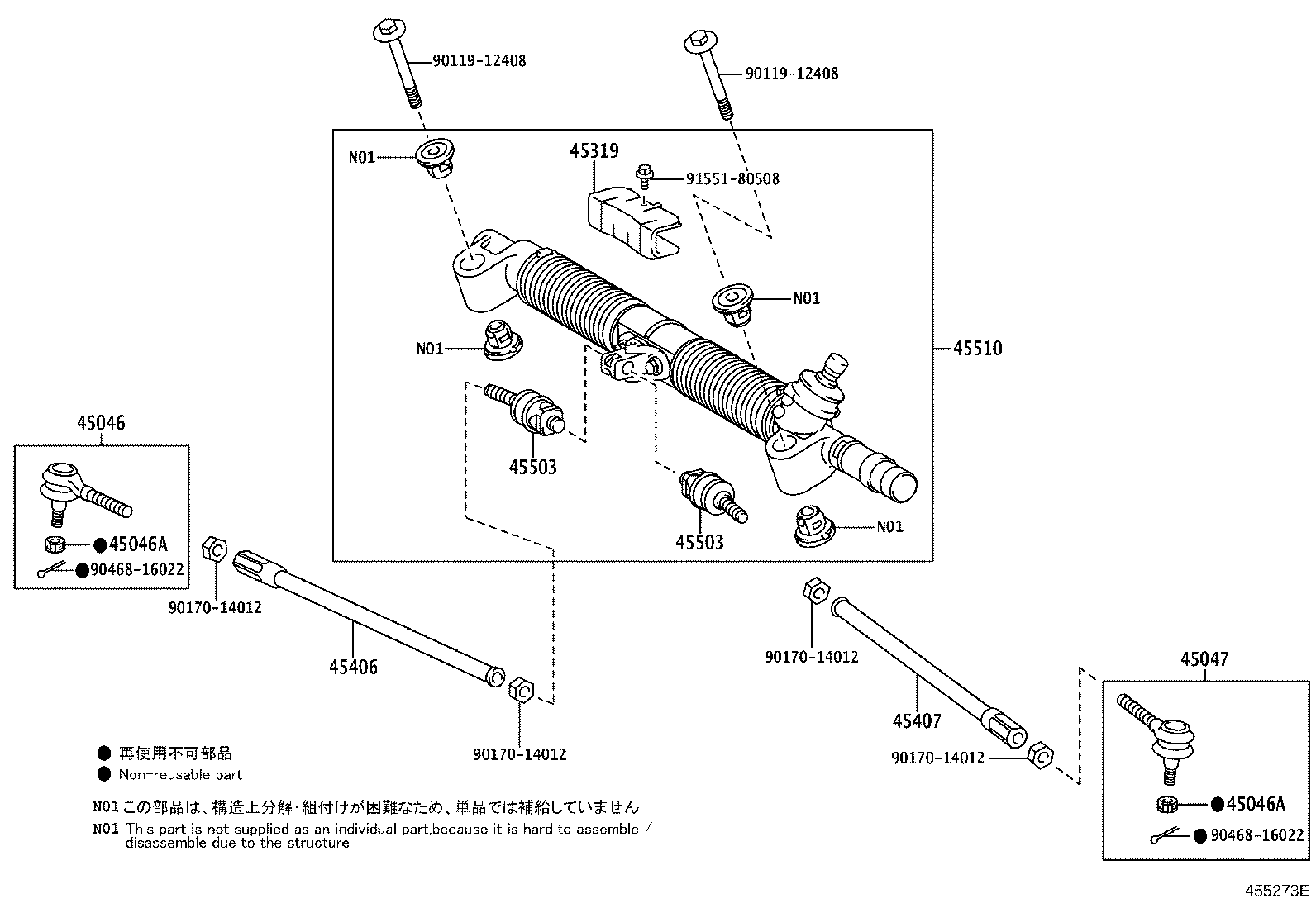

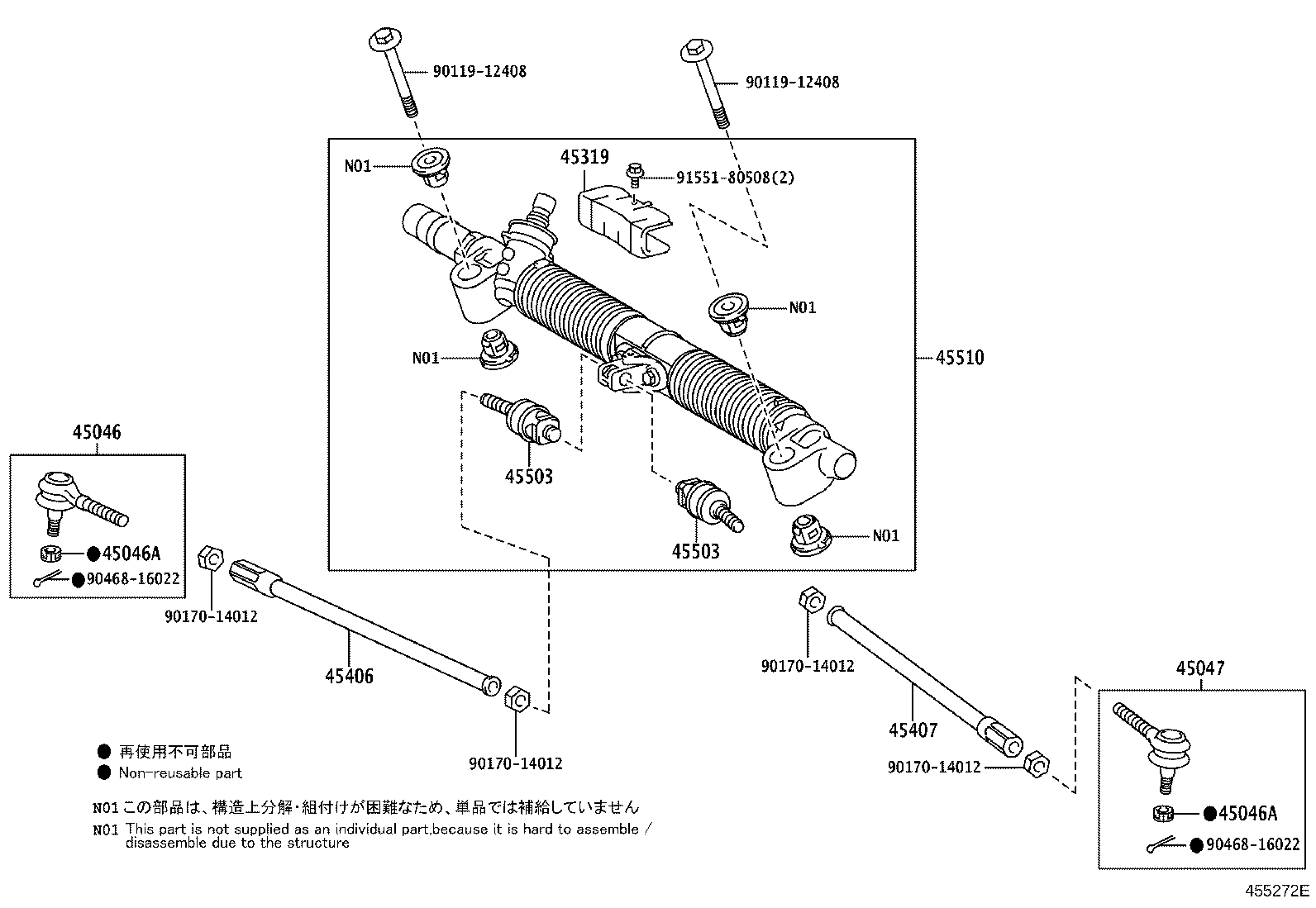

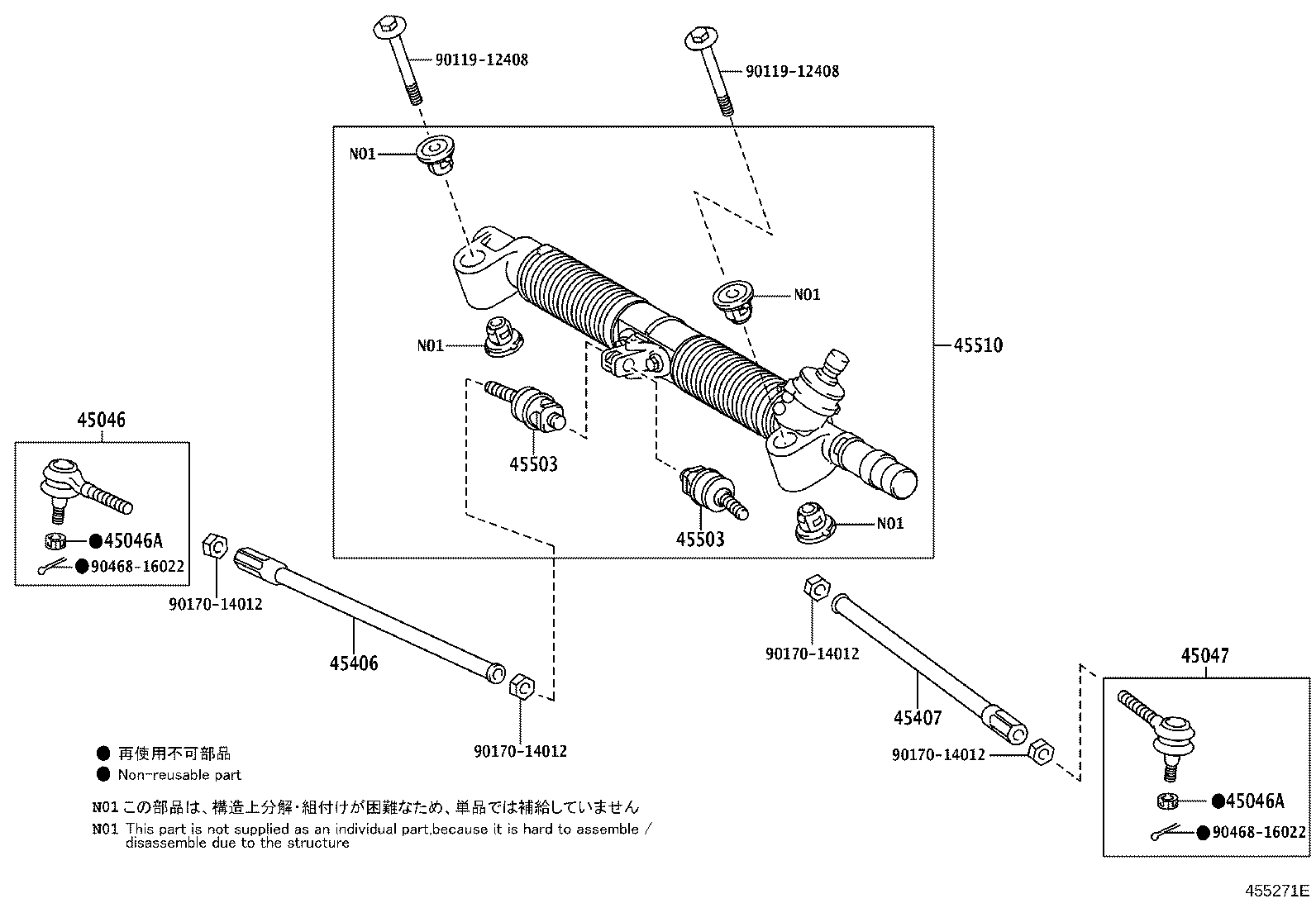

Figure 455270E 455270E 2008-11 → — Figure 455271E 455271E 2008-11 → — Figure 455272E 455272E 2008-11 → — Figure 455273E 455273E 2008-11 → —

Part groups

PNCDescription
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45319 Insulator, Steering Gear Heat
45406 Rod Sub-assy, Tie, RH
45407 Rod Sub-assy, Tie, LH
45503 End Sub-assy, Steering Rack
45510 Gear Assy, Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
