Toyota IQ

2008-11 → 2014-05 · chassis KGJ10,NGJ10,NUJ10 · catalogue 102510 · Europe

Supported model Data version 2014-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

23 part groups · 2 illustrations

Illustrations

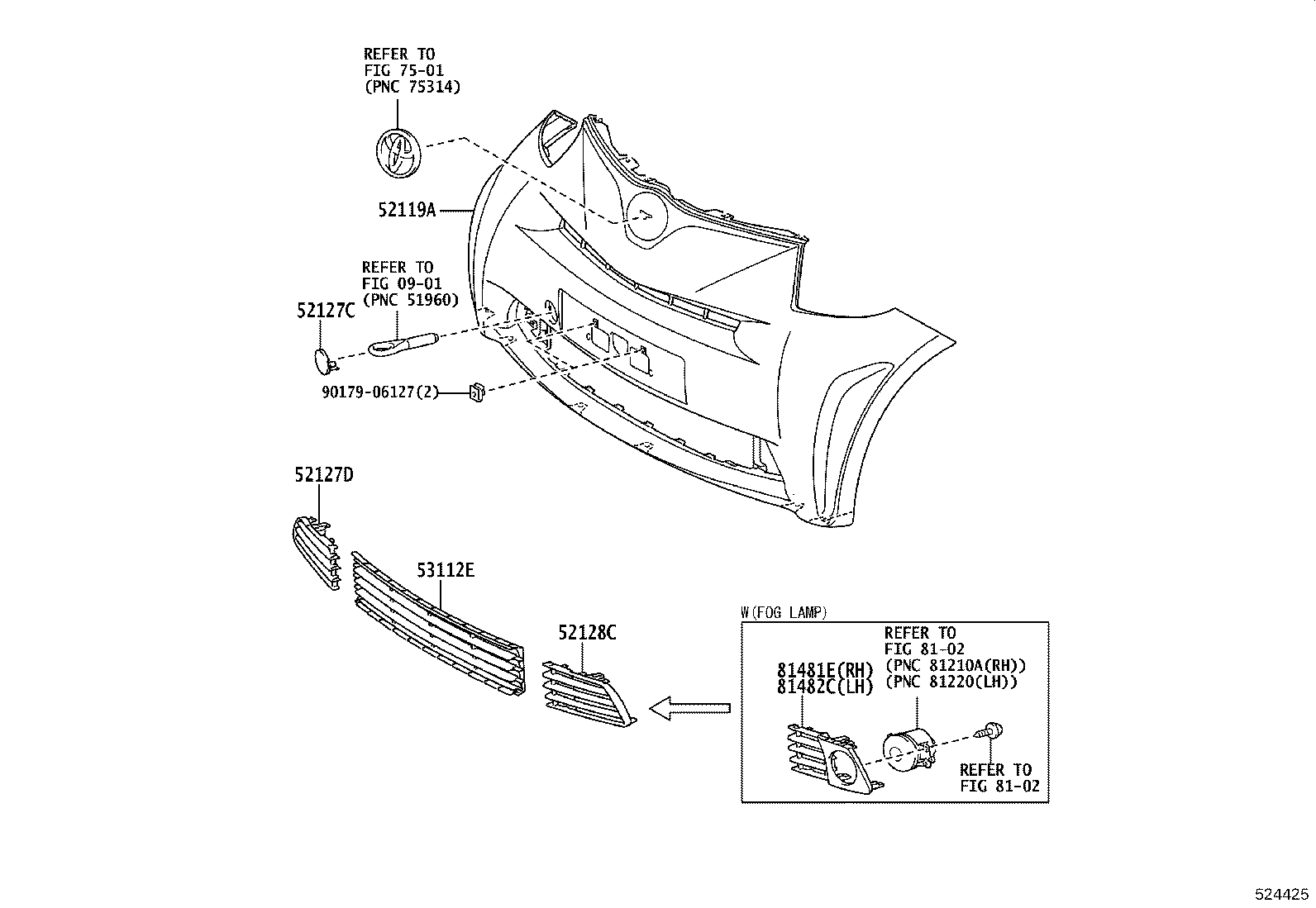

Figure 522018I 522018I 2008-11 → — Figure 524425 524425 2008-11 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52053 Pad Sub-assy, Front Bumper
52114 Guard, Bumper, Front RH
52115 Guard, Bumper, Front LH
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52161T Piece, Front Bumper
52411 Guard, Front Bumper
52421A Pad, Front Bumper
52422A Pad, Front Bumper, RH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52601 Absorber Sub-assy, Front Bumper Energy
52611 Absorber, Front Bumper Energy
52617 Absorber, Radiator Support, Upper
53112E Grille, Radiator, Lower NO.1
53121E Clip(FOR FRONT BUMPER), NO.1
53291M Seal, Radiator Support TO Frame, RH
53395E Seal, Hood TO Front End Panel
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
