Toyota IQ

2008-11 → 2014-05 · chassis KGJ10,NGJ10,NUJ10 · catalogue 102510 · Europe

Supported model Data version 2014-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 13 illustrations

Illustrations

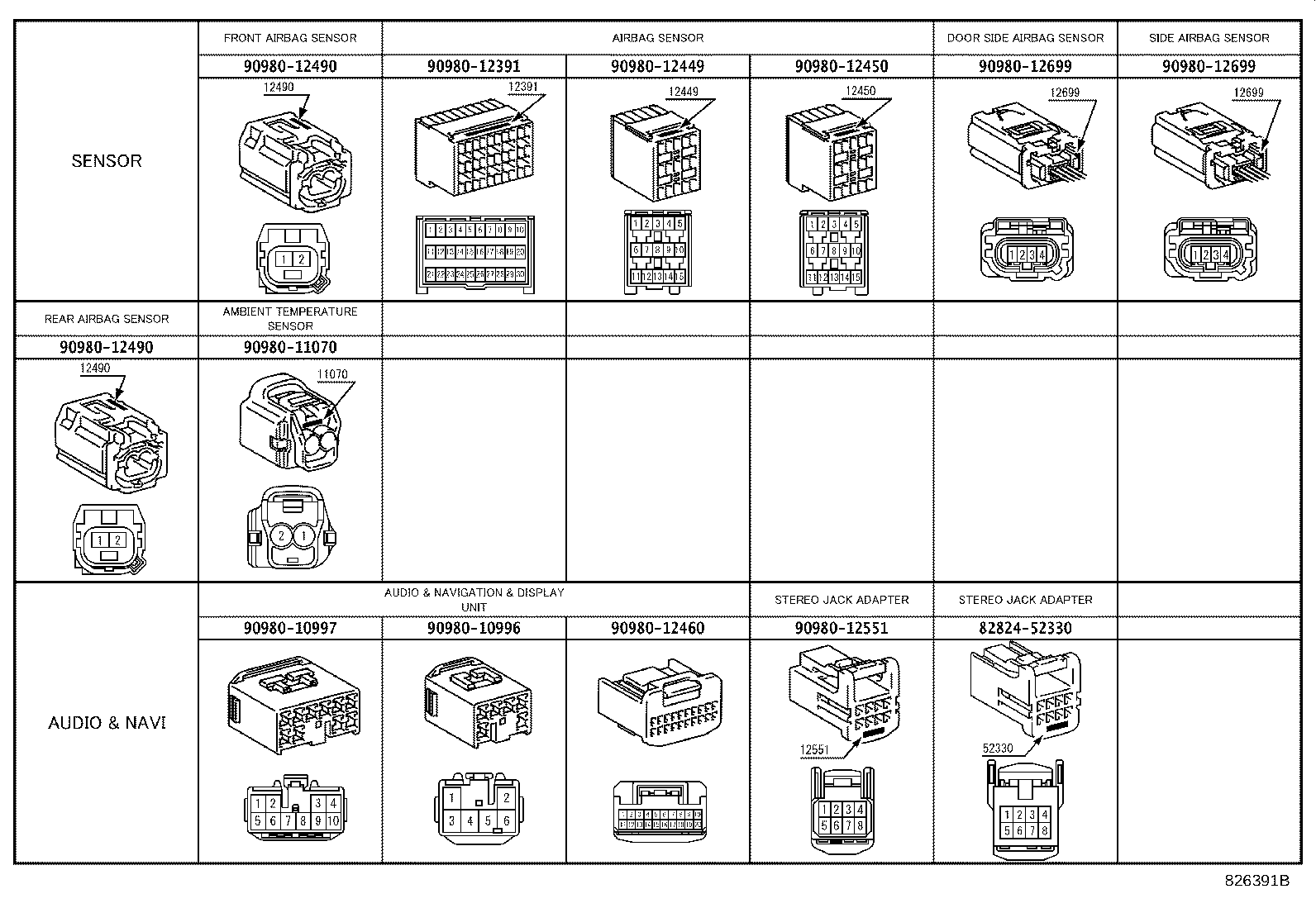

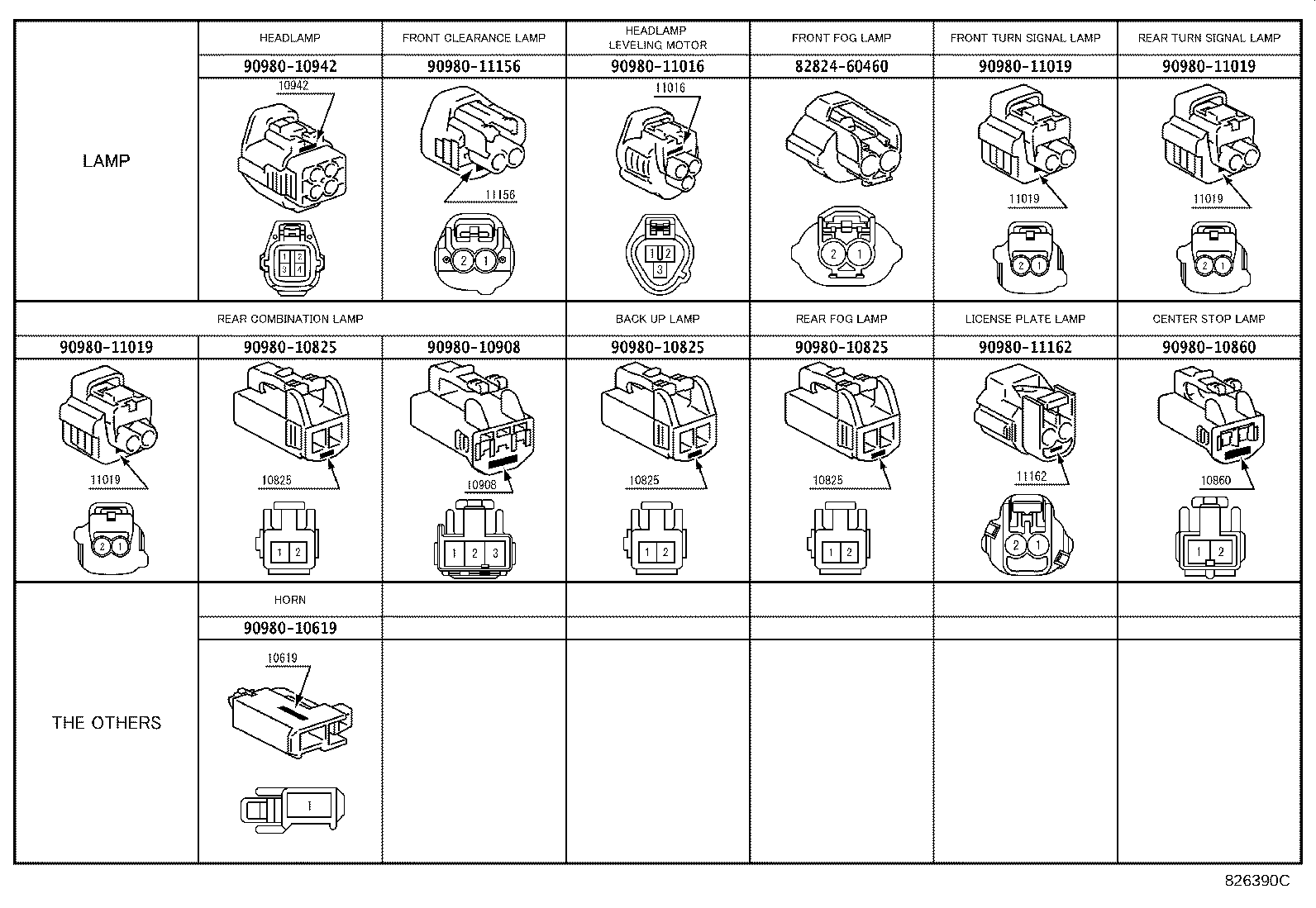

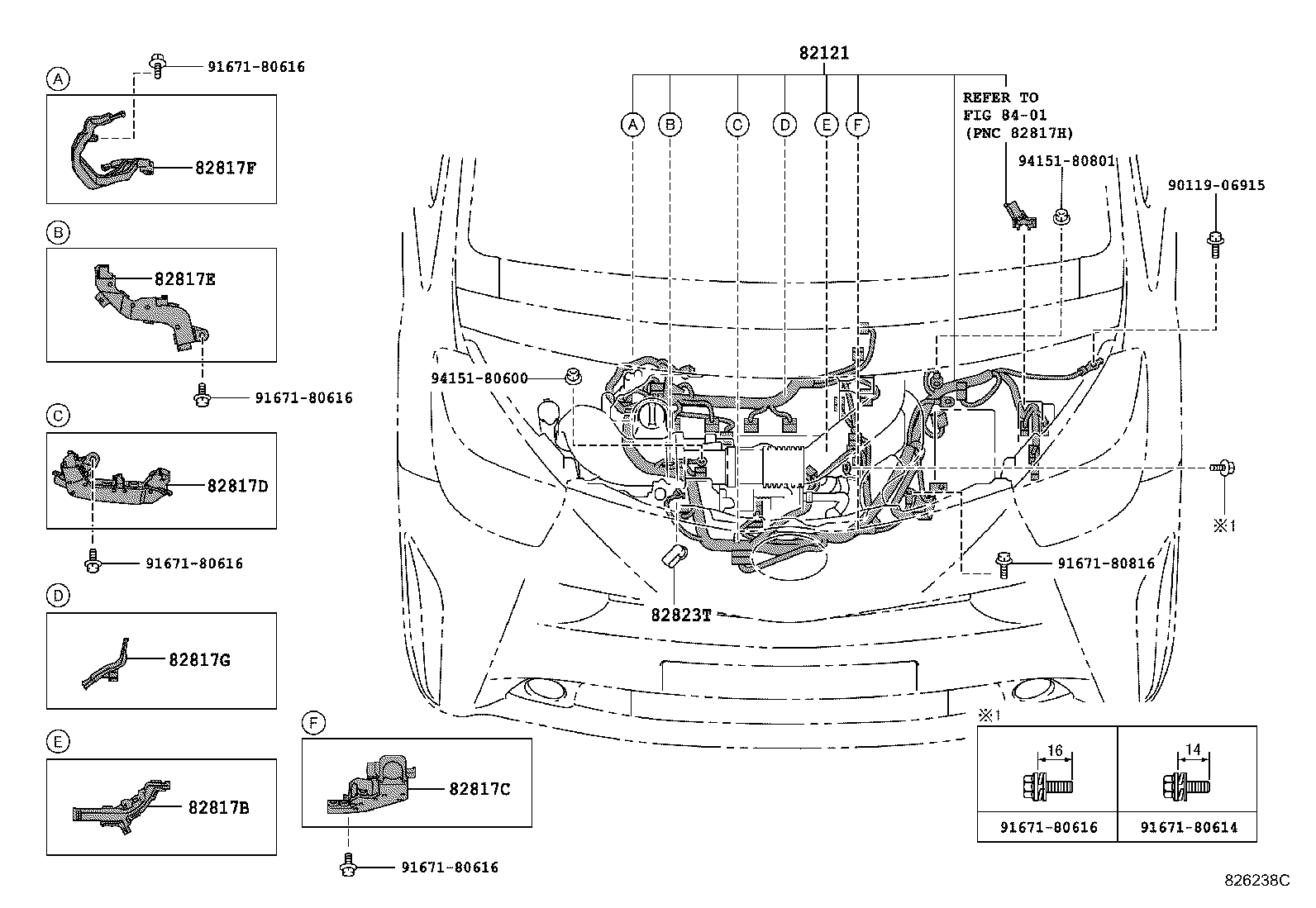

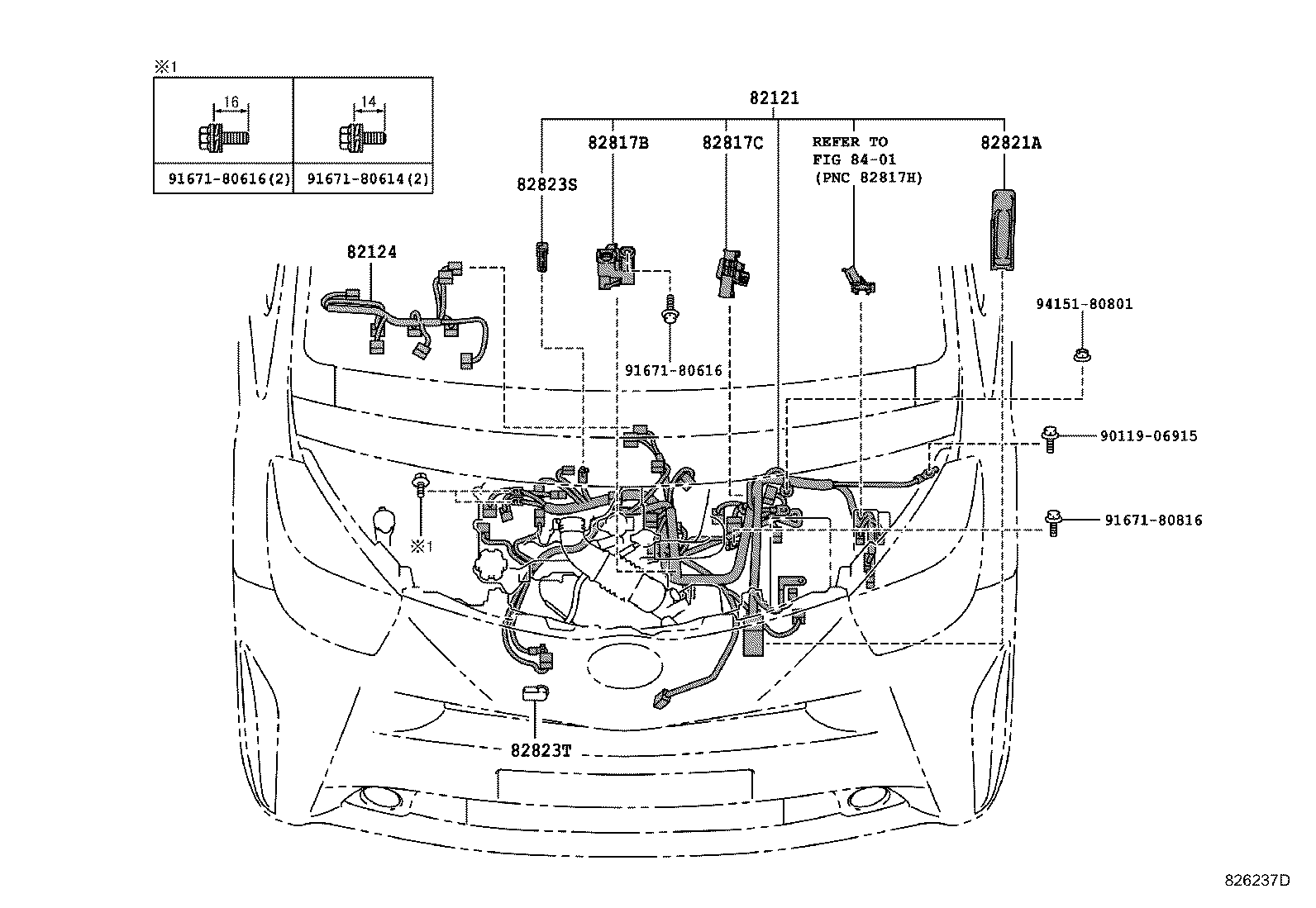

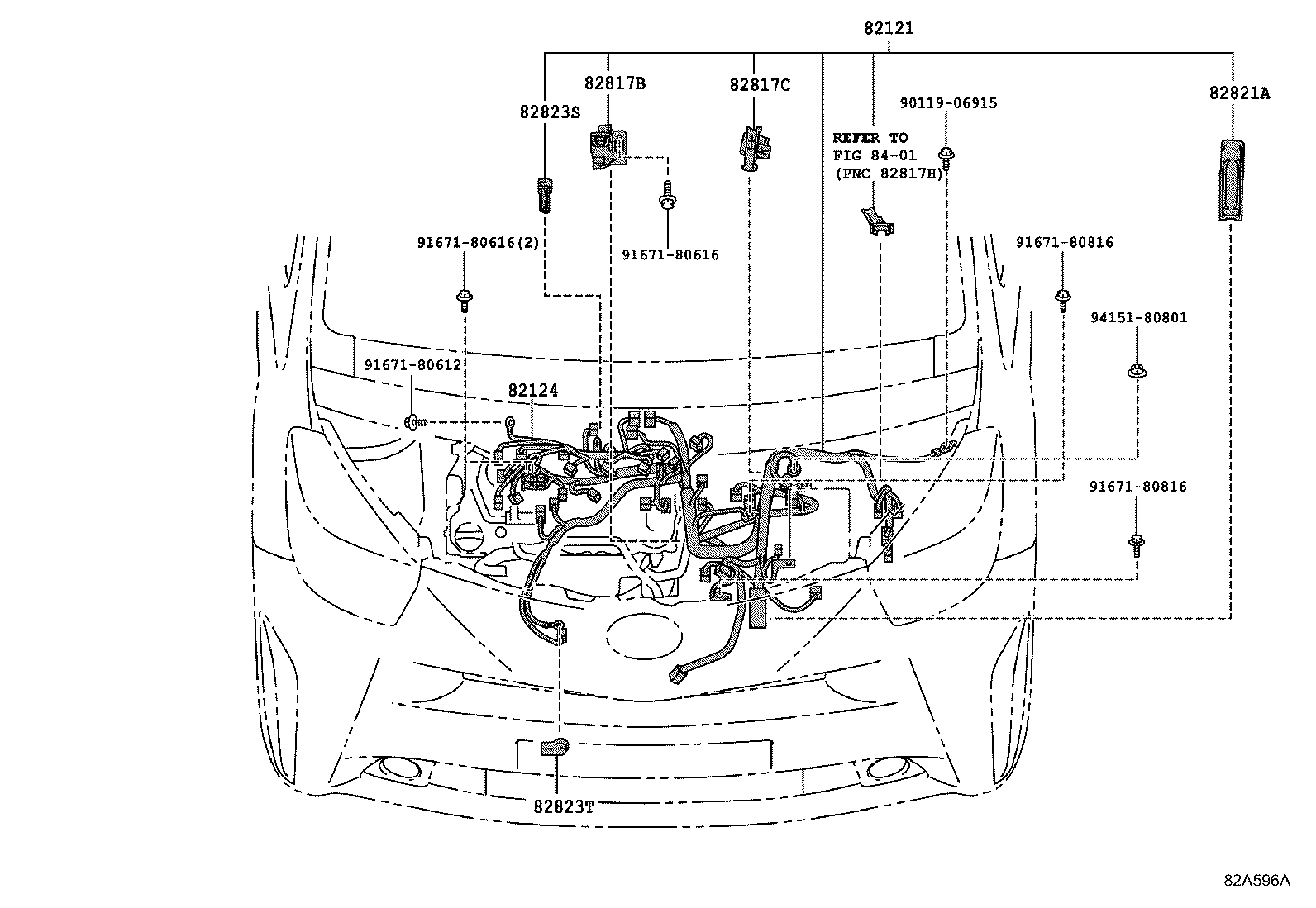

Figure 826235H 826235H 2008-11 → — Figure 826590E 826590E 2008-11 → — Figure 826237D 826237D 2008-11 → — Figure 826238C 826238C 2008-11 → 2012-05 Figure 82A596A 82A596A 2009-05 → — Figure 826239A 826239A 2008-11 → — Figure 826240A 826240A 2008-11 → — Figure 826241 826241 2008-11 → — Figure 82A597 82A597 2008-11 → — Figure 826243 826243 2008-11 → — Figure 826244B 826244B 2008-11 → — Figure 826390C 826390C 2008-11 → — Figure 826391B 826391B 2008-11 → —

Part groups

PNCDescription

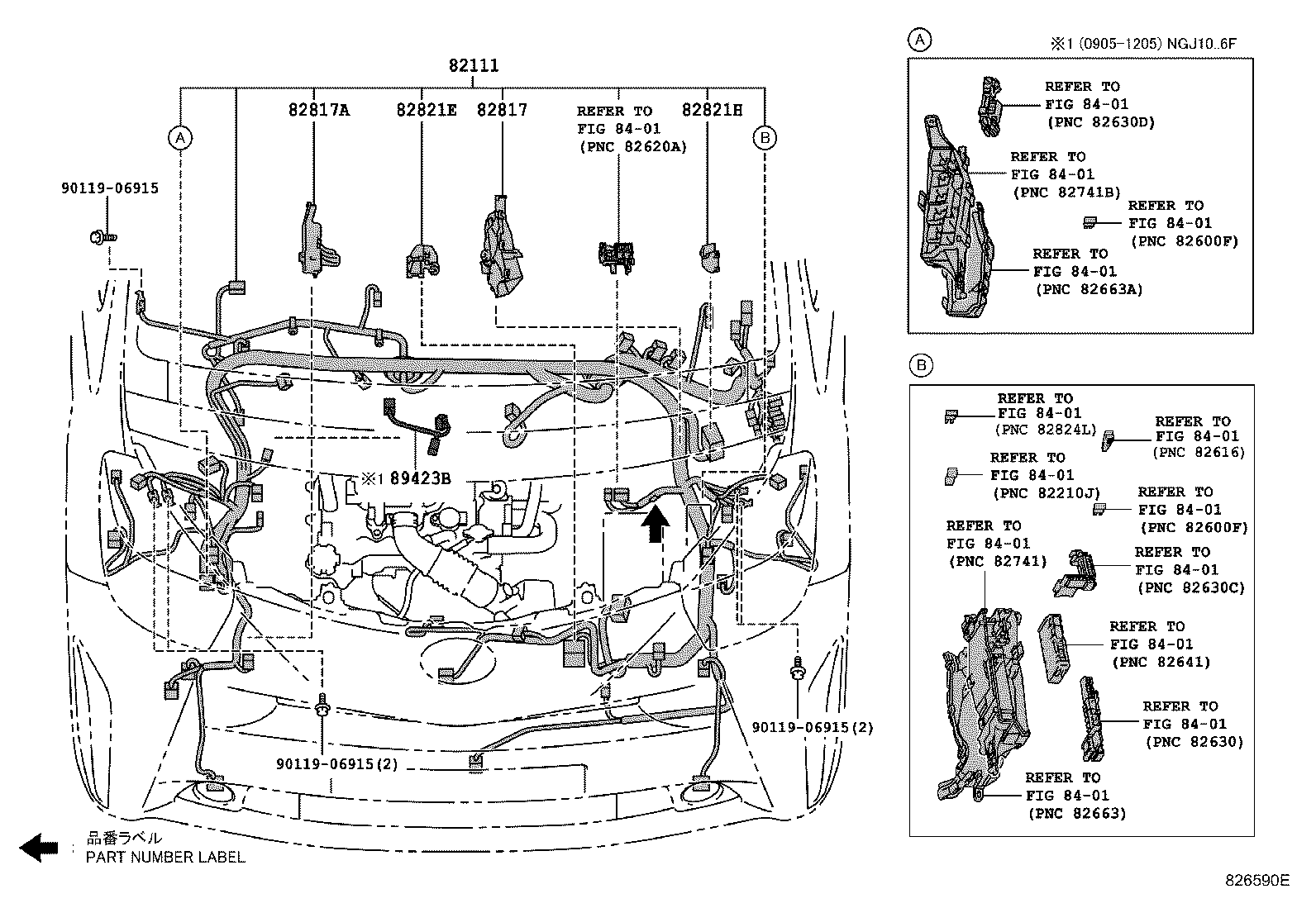

82111 Wire, Engine Room Main

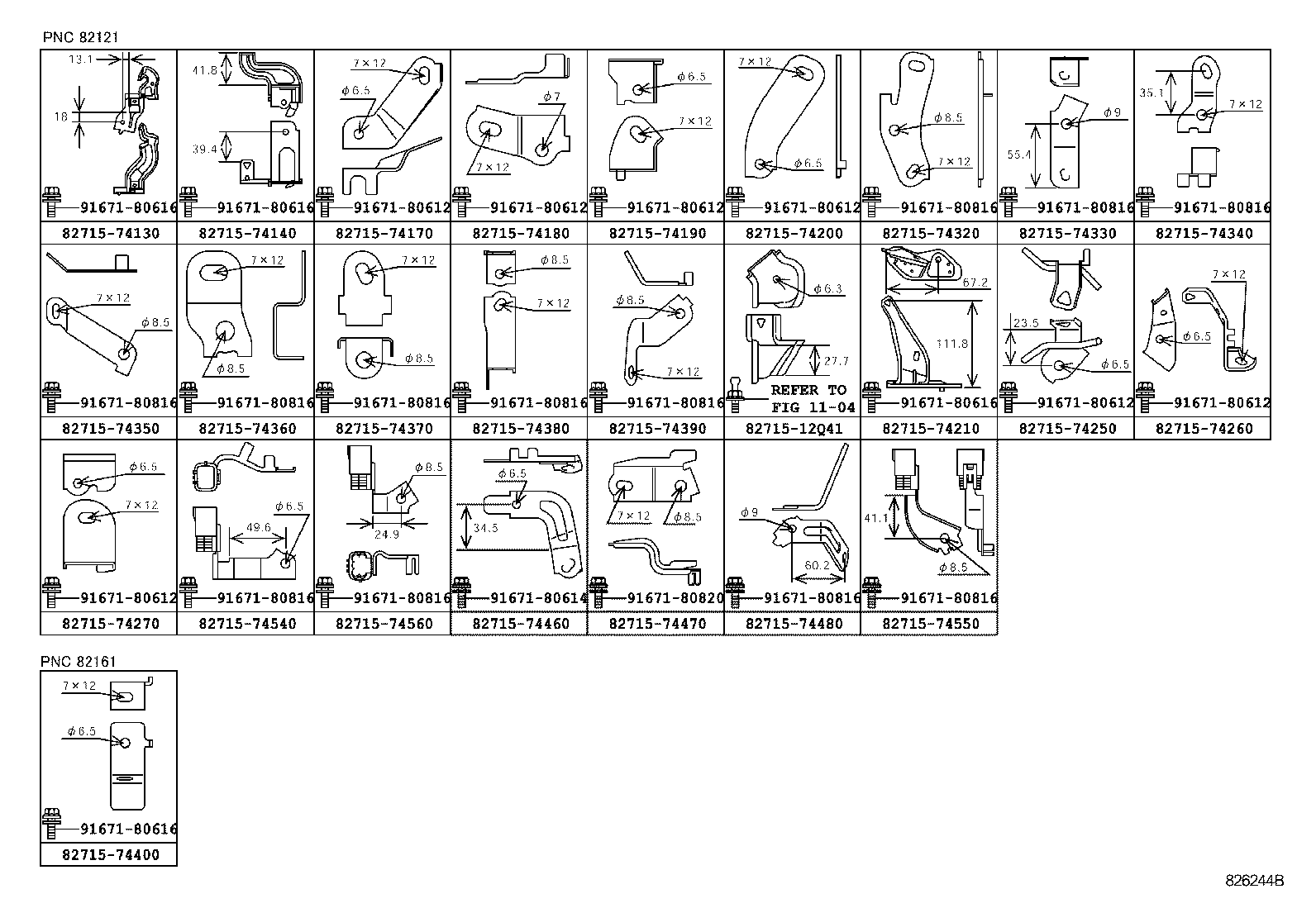

82121 Wire, Engine
82124 Wire, Engine, NO.4

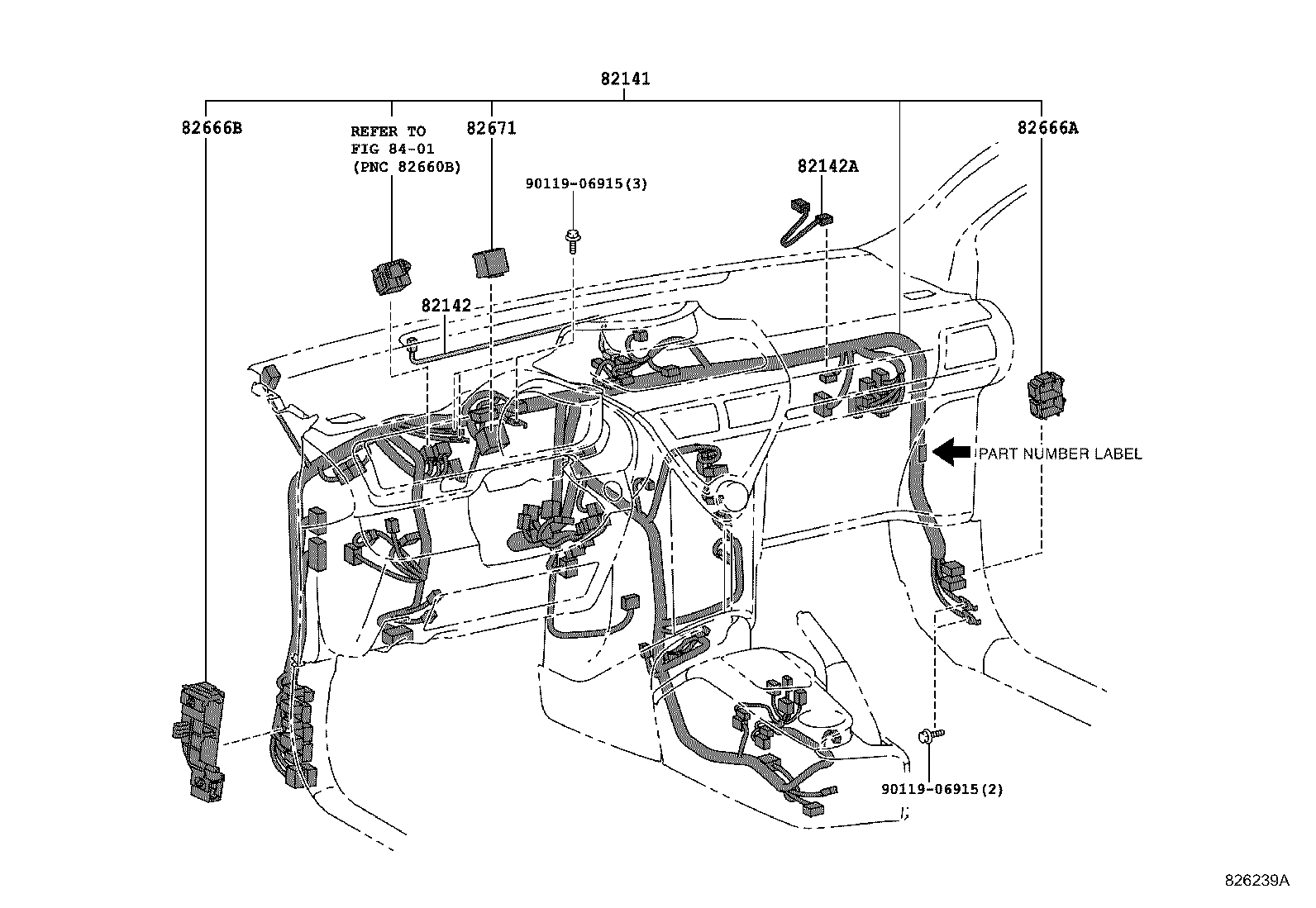

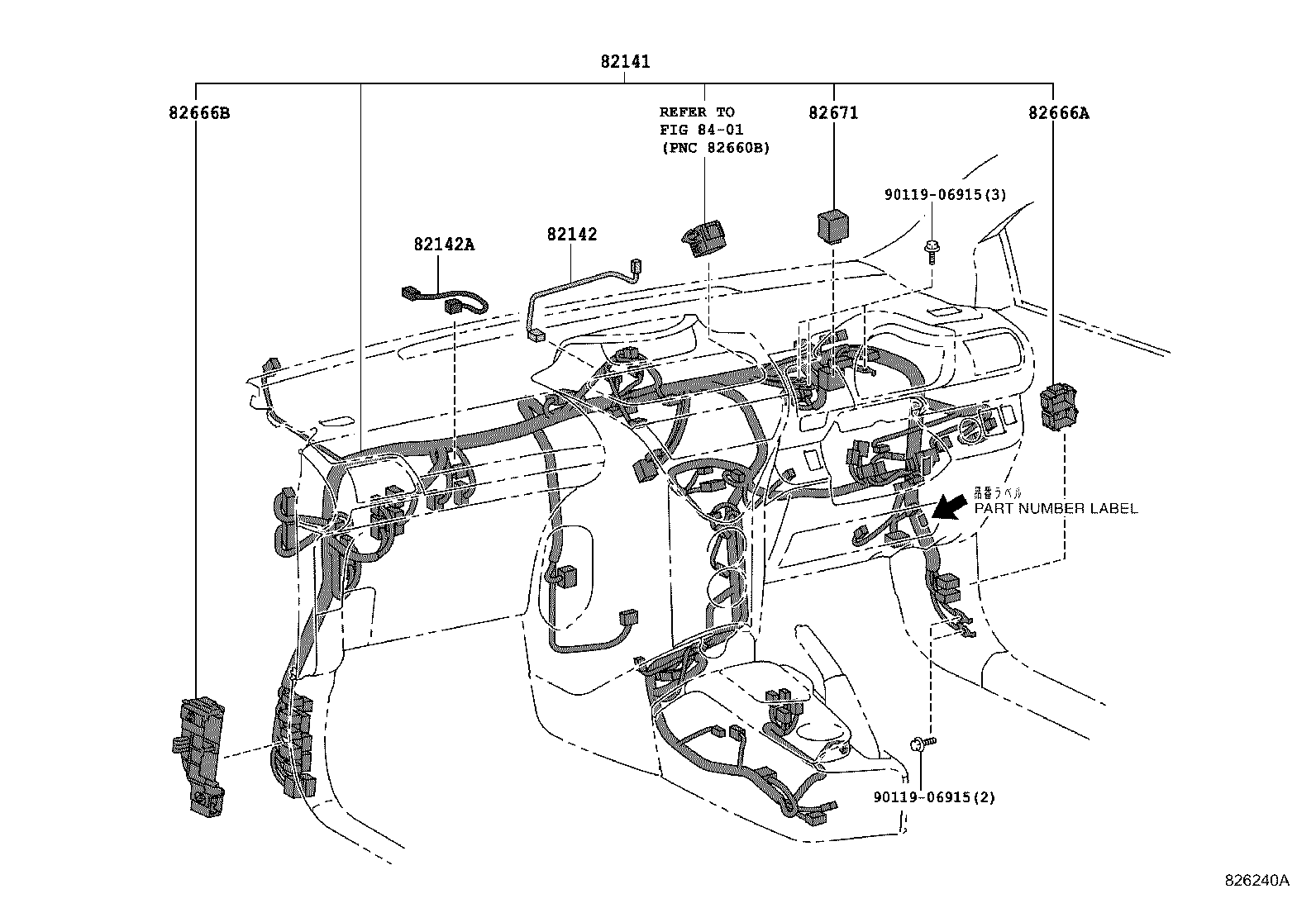

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2

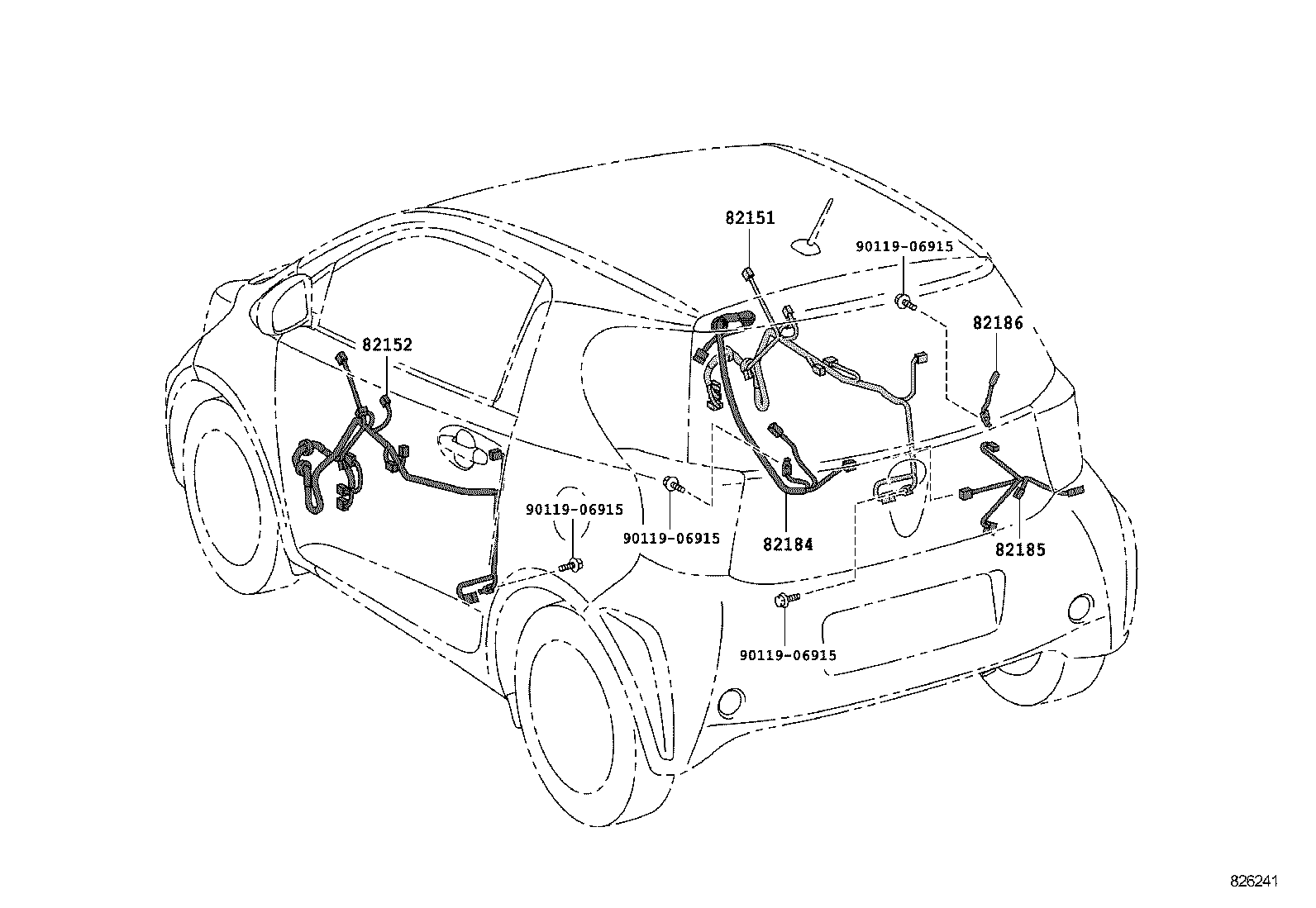

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

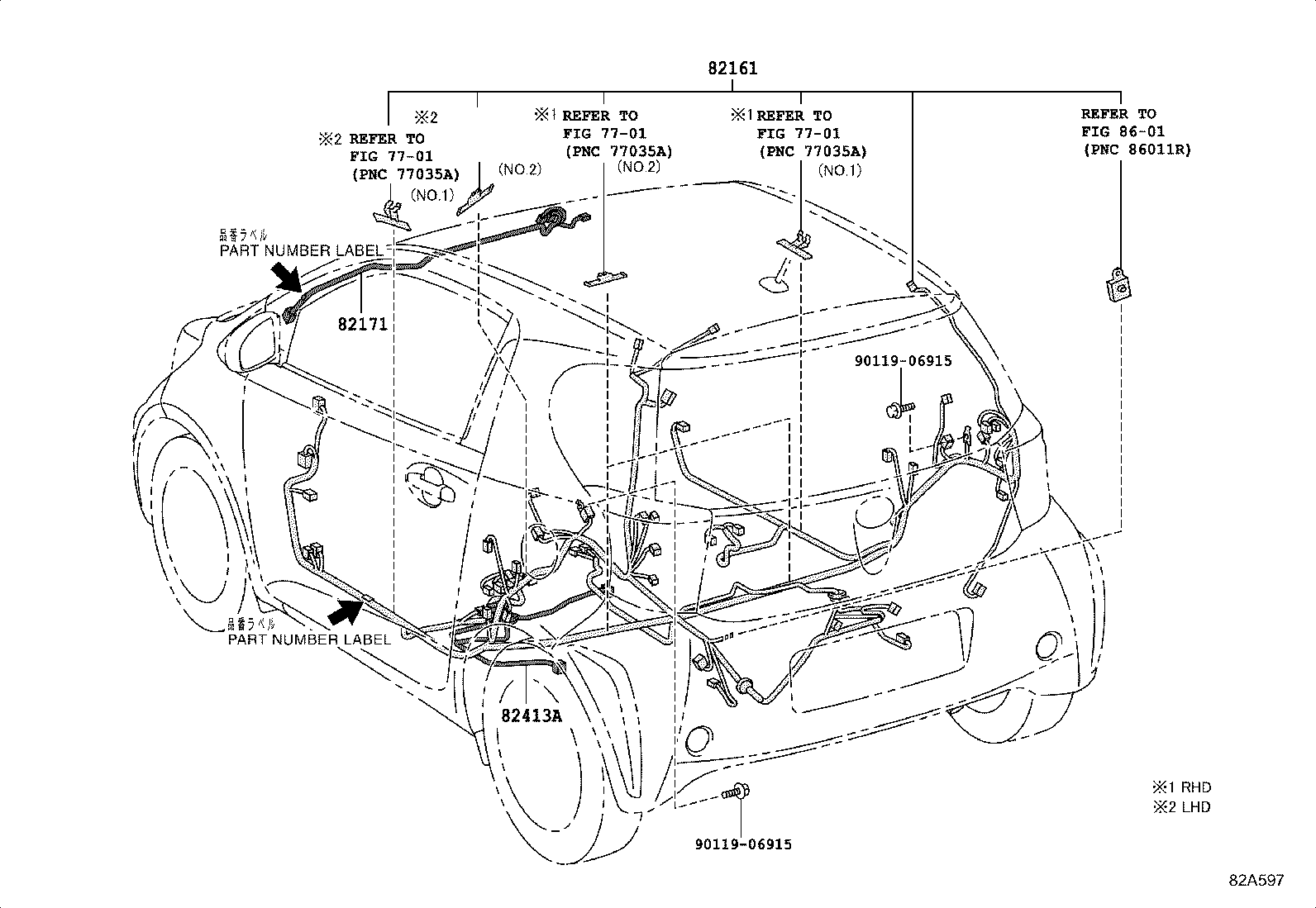

82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82413A Wire, Fuel Tank
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82671 Block, Junction
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
89423B Wire, Vacuum Sensor
