Toyota IQ
2008-11 → 2014-05 · chassis KGJ10,NGJ10,NUJ10 · catalogue 102510 · Europe
Supported model
Data version 2014-10
Switch & Relay & Computer
91 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28850 | Sensor Assy, Battery Current |
| 69065A | Cylinder Sub-assy, Airbag Cut Off Switch |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82621A | Cover, Fusible Link |
| 82630 | Holder Assy, Fuse |
| 82630C | Holder Assy, Fuse |
| 82630D | Holder, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82642G | Relay, Panel |
| 82660B | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82672A | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82715 | Bracket,Wiring Harness Clamp |
| 82730 | Block Assy, Instrument Panel Junction |
| 82741 | Block, Engine Room Relay |
| 82741B | Block, Engine Room Relay |
| 82817H | Protector, Wiring Harness |
| 82824L | Pin, Short |
| 82877 | Box, Computer Integration, RH |
| 82878 | Box, Computer Integration, LH |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84247A | Switch, Steering Pad, LH |
| 84307 | Cable Sub-assy, Spiral W/Sensor |

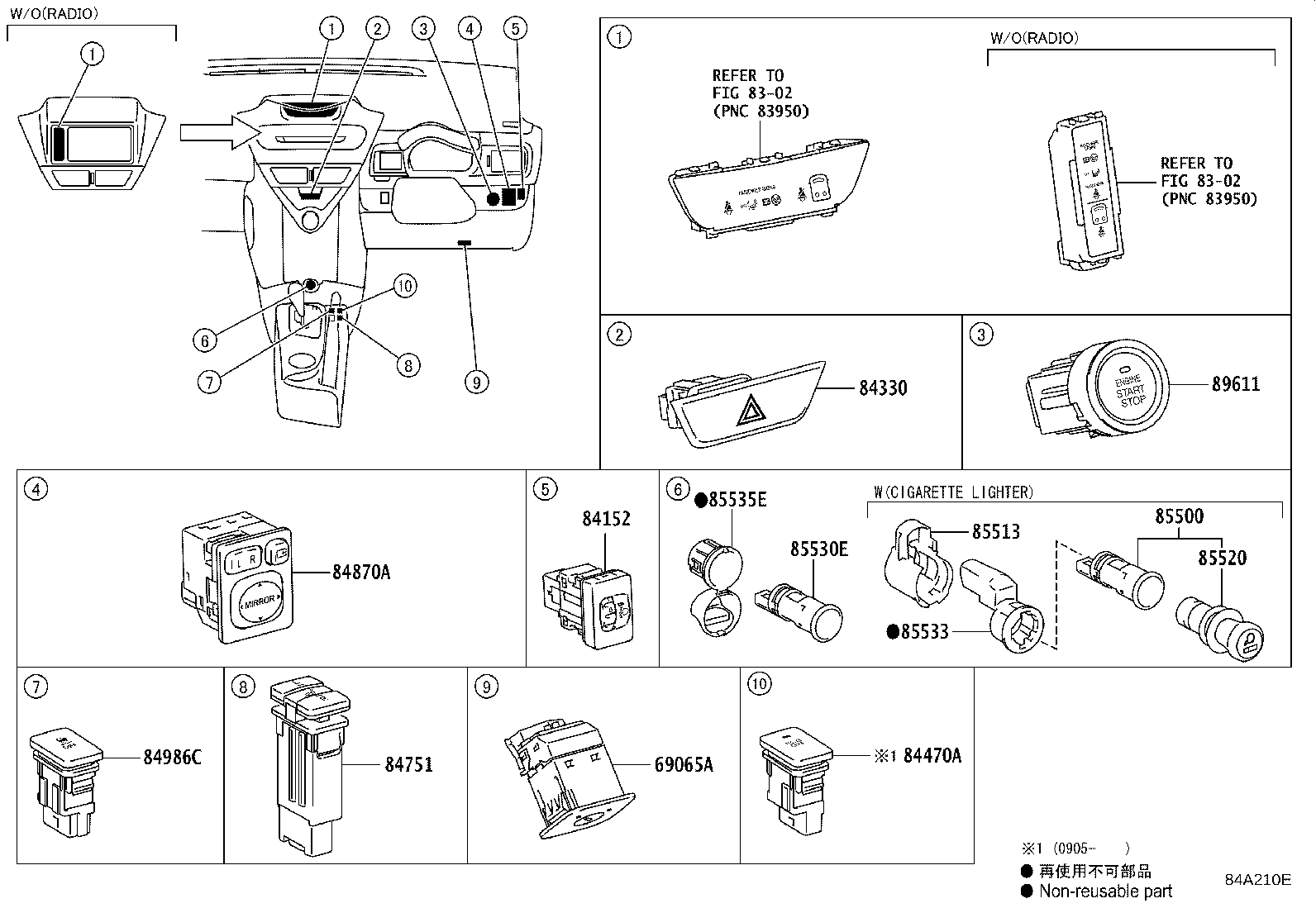

| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84450 | Switch Assy, Ignition OR Starter |
| 84470A | Switch Assy, Ecorun Cancel |
| 84520 | Switch Assy, Clutch Start |
| 84540 | Switch Assy, Neutral Start |
| 84540D | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84751 | Switch, Seat Heater |

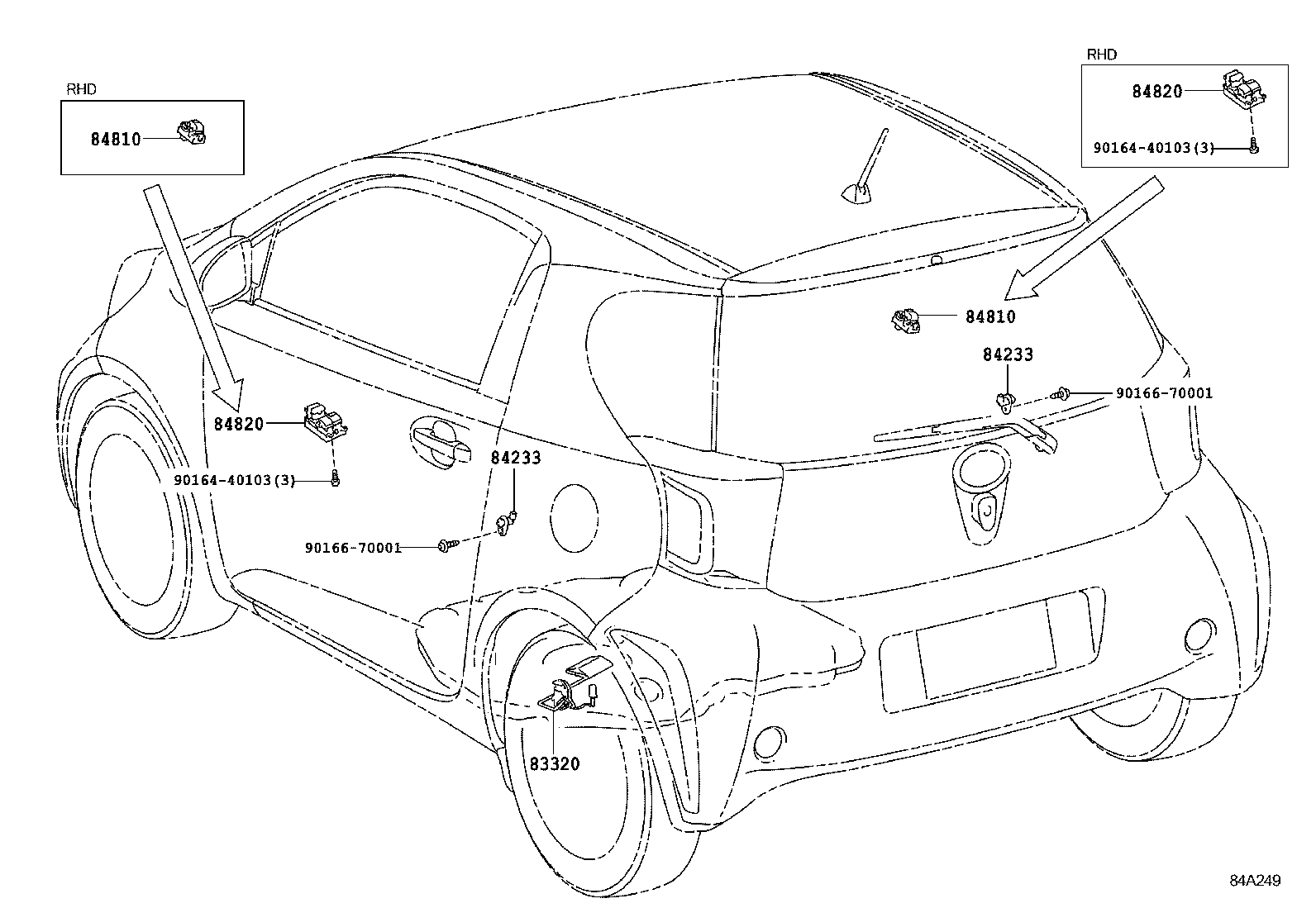

| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84986C | Switch, Vsc Off |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85513 | Cover, Cigarette Lighter |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85912 | Relay, Defogger |
| 85913C | Relay, Heater, NO.1 |
| 85916D | Relay, Fog Lamp |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85928B | Resistor, Cooling Fan |
| 85940 | Relay Assy, Windshield Wiper |
| 85970A | Relay Assy, Double Lock Door Control |
| 87290 | Switch Assy, Heater |
| 87346K | Relay, Ptc Heater |
| 87346L | Relay, Ptc Heater |
| 88280A | Switch Assy, Clutch |
| 89221 | Computer, Multiplex Network Body |
| 89420F | Sensor Assy, Vacuum |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89425A | Sensor, Exhaust Gas Temperature, NO.2 |
| 89437 | Cover, Sensor |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89480A | Sensor Assy, Differential Pressure |
| 89491 | Sensor, Engine Oil Level |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89618A | Computer, Power Source Control |
| 89681A | Computer, Power Management Control |
| 89730A | Relay(FOR SECURITY WARNING) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
