Toyota IQ

2008-11 → 2014-05 · chassis KGJ10,NGJ10,NUJ10 · catalogue 102510 · Europe

Supported model Data version 2014-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Eco-run System

2 part groups · 2 illustrations

Illustrations

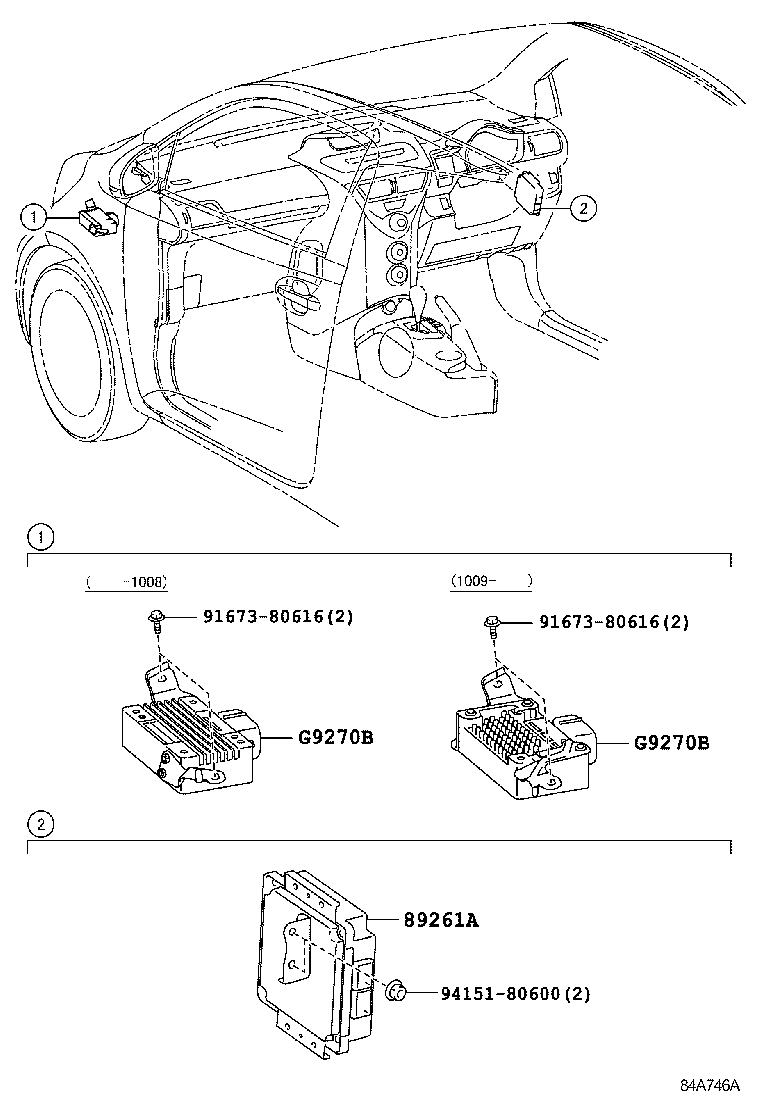

Figure 84A733A 84A733A 2009-05 → — Figure 84A746A 84A746A 2009-05 → —

Part groups

PNCDescription
89261A Computer, Engine Stop And Start
G9270B Converter Assy, Eco Run Vehicle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
