Toyota IQ

2008-11 → 2014-05 · chassis KGJ10,NGJ10,NUJ10 · catalogue 102510 · Europe

Supported model Data version 2014-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

7 part groups · 3 illustrations

Illustrations

Figure 87A481C

87A481C 2008-11 → —

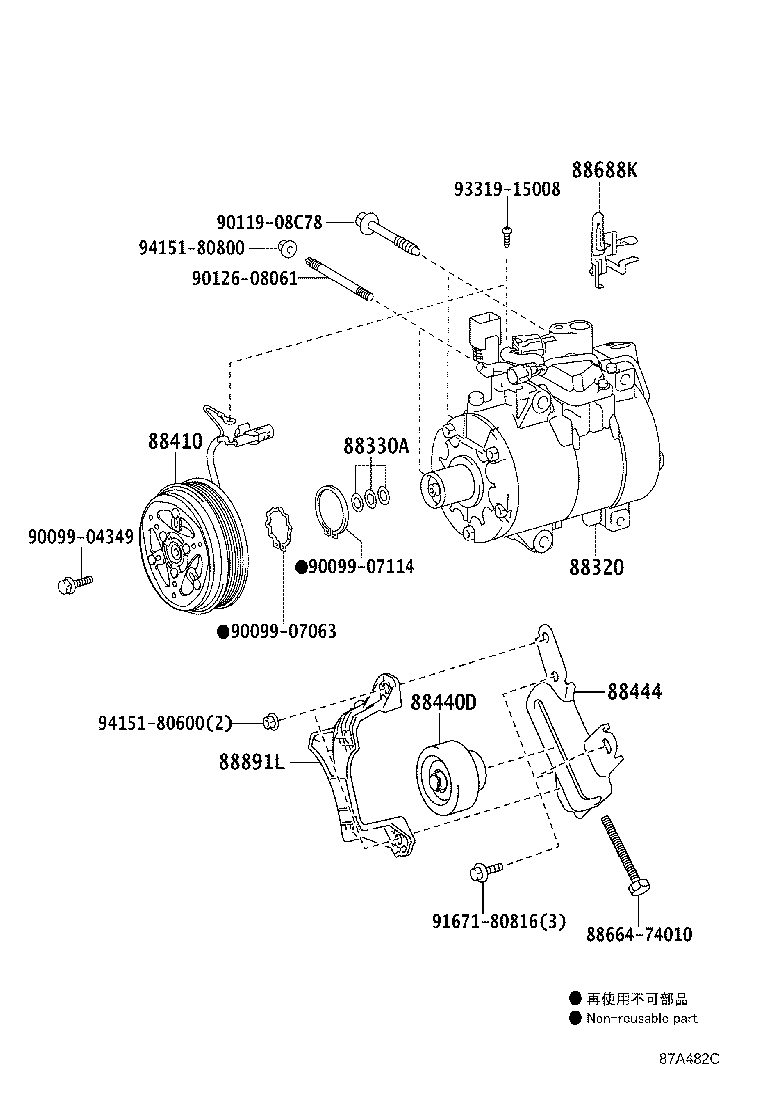

Figure 87A482C

87A482C 2008-11 → —

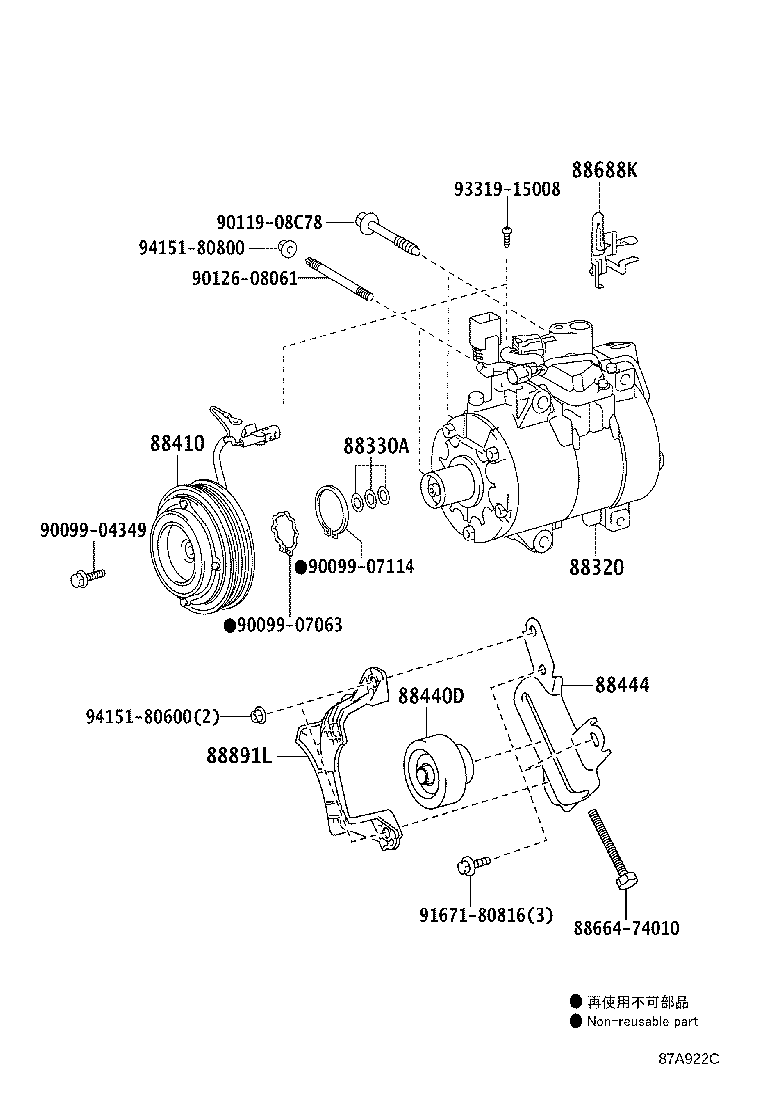

Figure 87A922C

87A922C 2009-05 → —

Part groups

PNC	Description
88320	Compressor Assy, Cooler
88330A	Washer (FOR MAGNET CLUTCH)
88410	Clutch Assy, Magnet
88440D	Pulley Assy, Idle NO.2
88444	Bracket, Idle Pulley
88688K	Bracket, Cooler Compressor
88891L	Cover, Cooler, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
